Floor Ceiling Air-Conditioning Unit
5

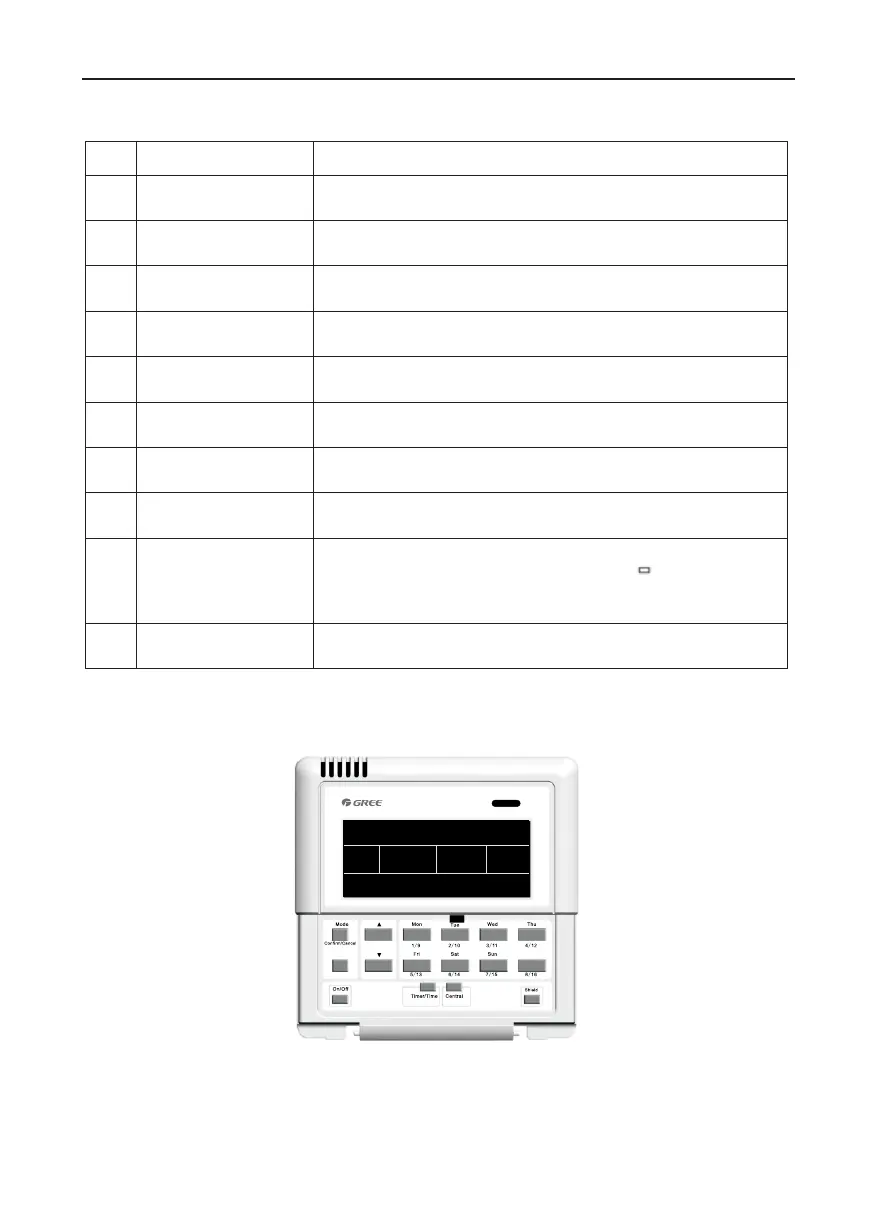

Table 3.1: Introduction to the Symbols on the LCD
No. Name Description
1 Fan speed
It displays the fan speed of the indoor unit, high, medium, low and
auto.
2 Running mode
It displays the running mode of the indoor unit, auto, cool, dry, fan
and heat.
3 System clock
It displays the current time (hour and minute) in 24-hour time
system and also the week day.
4 Shield
It displays the shielded status, “ALL”, “TEMP”, “MODE” and “ON/
OFF”.
5 Weekly timer
It displays the timing period (unit: 0.5 hour) which will circulate
every week.
6
Set temperature
Indoor unit code
It displays the set temperature, indoor unit code (01-16), and
symbols of Celsius and Fahrenheit scale.
7 Control mode
It displays “CENTER” under the centralized control mode and no
display under the single control mode.
8
Ambient temperature
Serial port
It displays the ambient temperature, serial port as well as symbols
of Celsius and Fahrenheit scale.
9
Indoor unit code
On/off status
Numbers indicate the indoor unit codes which will be displayed
when the corresponding indoor unit is online; “
” indicates the on/
off status of the indoor unit, that is, when it is bright, it means the
unit is “On”; when it is gone out, it means the unit is “Off”.
10
Error
Child lock
It displays the error codes when some error(s) arises and also
“CHILD LOCK” when this function is activated.
4 Buttons
4.1 Outline of Buttons
Confirm/Cancel
Mode
Fan
On/Off
Timer/Time Central
Shield
Mon
Tue
WedT hu
FriS at Sun
24 68 10 12 14 16 18 20 22 240
1
2
34
56
78
9
10
11 12
13 14
15 16
CENTER
SUNMO NT UEW ED THUF RI SAT
AUTO
SUN
MON
TUE
WED
THU
FRI SAT
SHIELD
CHLD LOCKI
ERROR
ROOM
COM
SET
INNER UNIT
TEMP
MODE
ON/OFF
ALL
All
on/All
off
Fan
All
on/All
off
Fig.4.1 Outline of Buttons
