Gree EVO Series Unit Installation Guide

10
Unit Installation
◆
HLR12Pd/Na-M, HLR14Pd/Na-M
4.8 Wiring of the 2-Way Valve
The 2-way valve is required to control water ow for cooling operation. The role of 2-way valve is to cut off
water ow into the underoor loop when the fan coil unit is equipped for cooling operation.
General Information
Type Power Operating Mode Supported
NO 2-wire 230V 50Hz 1Ph AC
Closing water ow Yes
Opening water ow Yes
NC 2-wire 230V 50Hz 1Ph AC
Closing water ow Yes
Opening water ow Yes
(1) Normal Open type. When electric power is NOT supplied, the valve is open. (When electric power is
supplied, the valve is closed.)
(2) Normal Closed type. When electric power is NOT supplied, the valve is closed. (When electric power is
supplied, the valve is open.)

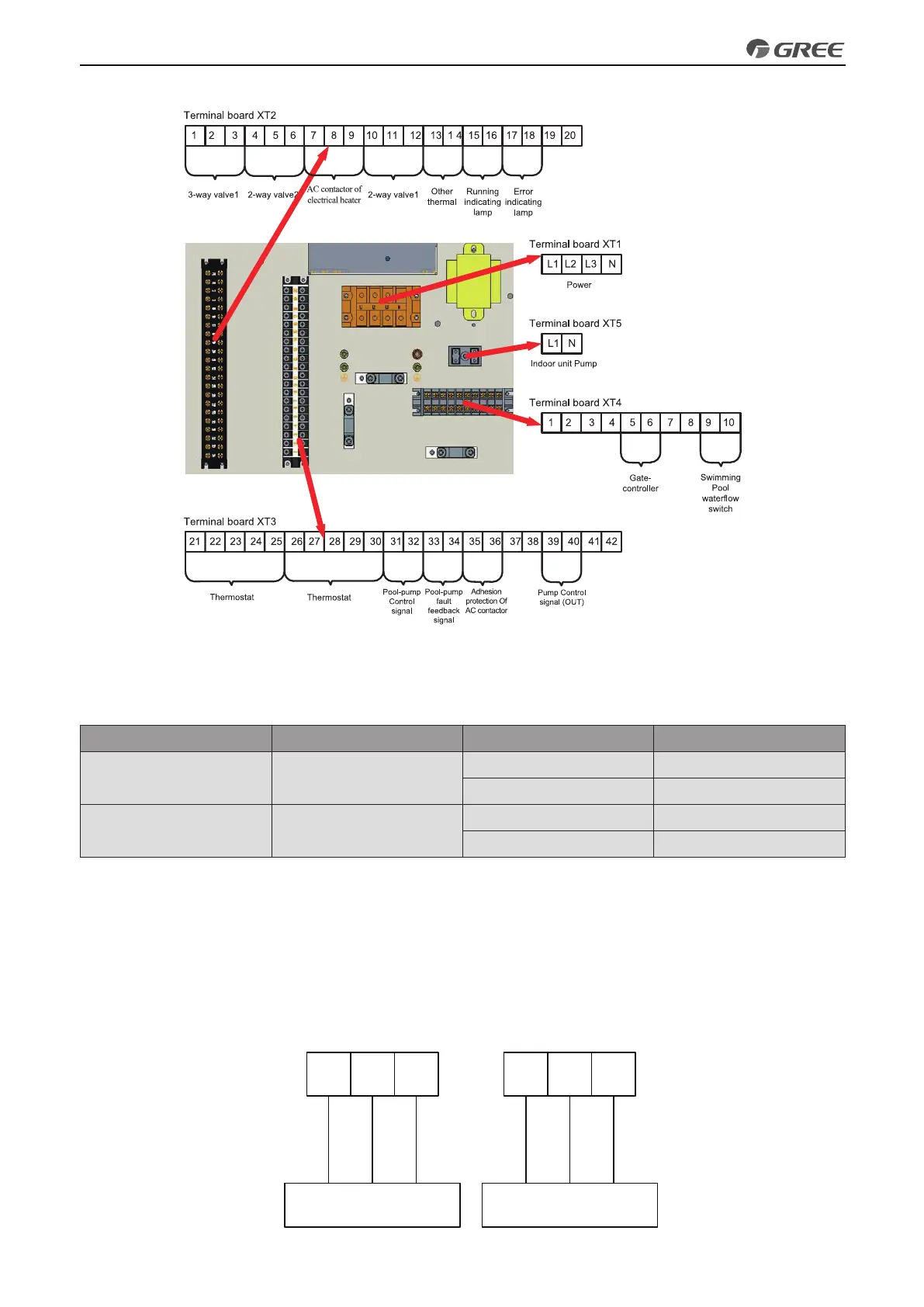

How to Wire 2-Way Valve:
Follow steps below to wire the 2-way valve.
Step 1. Uncover the front cover of the unit and open the control box.
Step 2. Find the terminal block and connect wires as below.
4 5 6 10 11 12
2-Way Valve 2 2-Way Valve 1
XT2
L1(OFF)
L2(ON)
L1(OFF)
L2(ON)
N N
