Gree FP-22LM/D-K User Manual

Vertical Exposed Fan Coil Unit
10

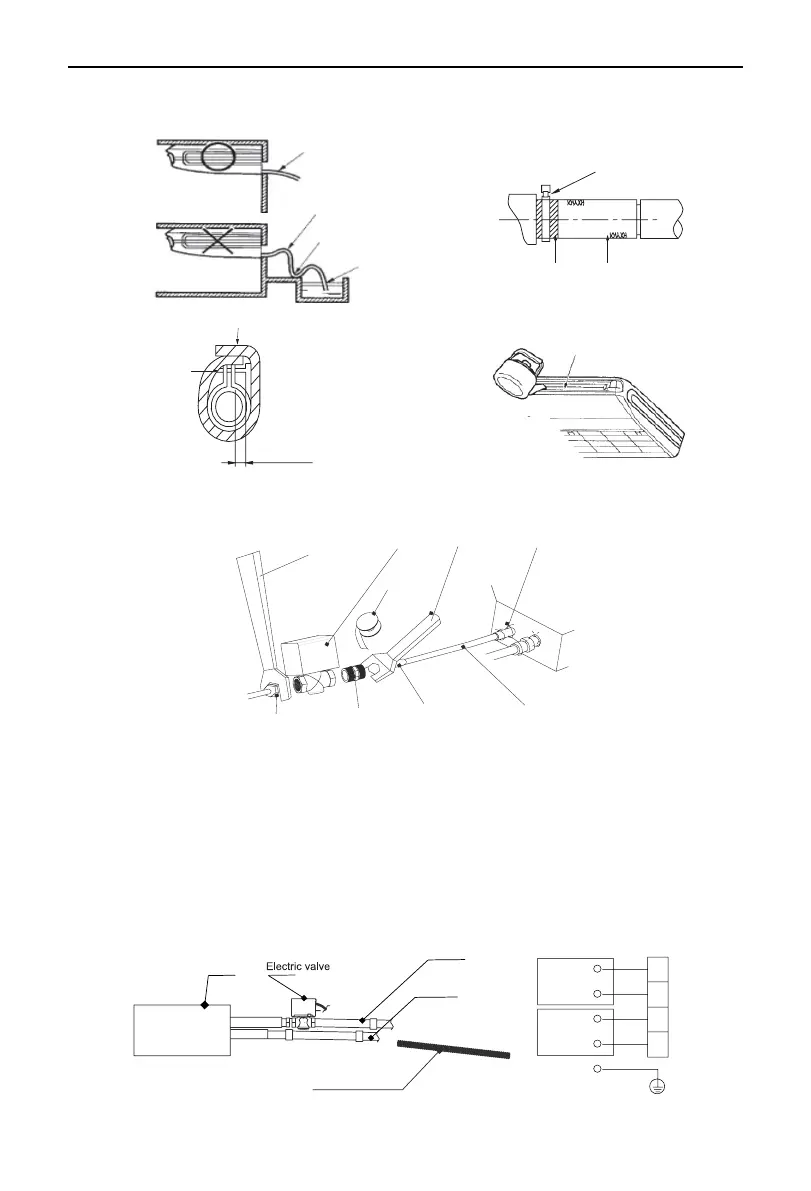

2.6.2 Installation steps of the drain pipe
Sponge
Clamp
＜4mm
Watering can
Air outlet
(When drain hose is connected)
Tilt the drain hose
Not to be lifted
No foldings
Not to be soaked
in water
Sponge
Drain hose
C
lamp
2.7 Installation of the water valve
2.7.1 Precautions
Flared nut
Outlet pipe
Torque wrench
Screw
Ordinary wrench
Valve
Teflon tape
Connector
Screw
(1) See the gure above for installation of the water valve. Firstly, connect one end of the water pipe to
the water inlet of the unit, and then connect the other end to water valve. During installation, both the
torque wrench and ordinary wrench should be used. For the former, the torque should be less than
90N.m.
(2) The pipe connectors and the water valve are G3/4 threaded. In order for better sealing e󰀨ect, before
connection they should be wrapped with Teon tape.
(3) After the connector, the water valve and the water pipes have been nished, start the water pump and
see if they leak or not.
(4) Insulate the water valve and the pipe with sponge.
L
N
N(1)
2
L
N
(N)
(L)
PE
P
E
XT1
Main unit
Power line
Outlet pipe
Inlet pipe
PVC sleeve
Power
Water
valve
