3.2.6.3 Notice on Drain Lift Pipe
(1) For the unit with the condensate pump, only one drain port at the side close to
the electric box is prepared and only through it the drain hose can be
connected.
Item
Model
Drain pipe
(outer dimension x wall thickness)(mm)
Ф26×2.5
GU100PH/A1-K
GU100PHS/A1-K
GU125PH/A1-K
GU125PHS/A1-K
GU140PH/A1-K
GU140PHS/A1-K
GU160PH/A1-K
GU160PHS/A1-K
(2) For the unit with the condensate pump, two drain ports at the bottom are
defaulted to be factory plugged with drain caps. After the installation of the
drain hose, these two drain ports also need to be insulated properly with the
same way aforementioned.

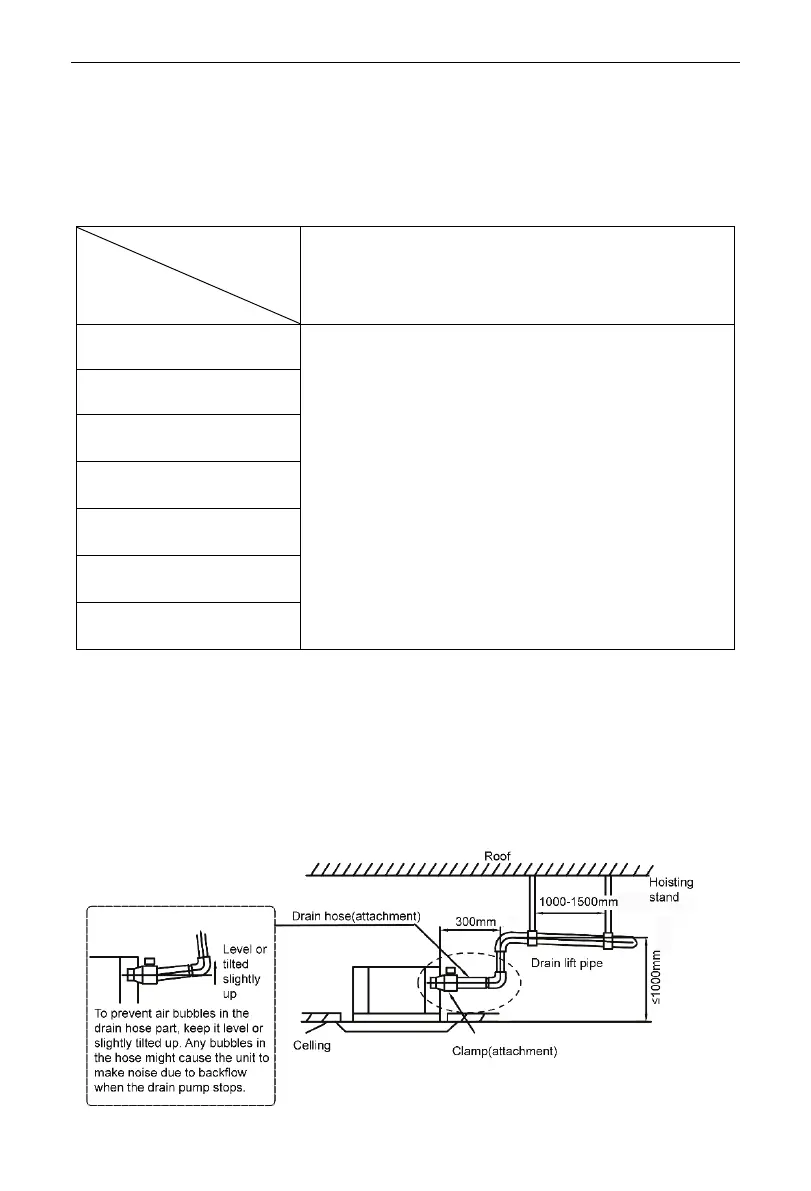

(3) The lifted installation height of drainage pipe is less than 1000mm, as is shown
in the following figure.
