U-Match Series Duct Type Unit
37
c) Before connecting the product to public power network, please consult
your local power supply authority to ensure that the power network has
met the above requirements. No requirement for the unlisted product’s
impedance value of power-supply system.
3.3.3 Connection of Power Cord and Communication Cord

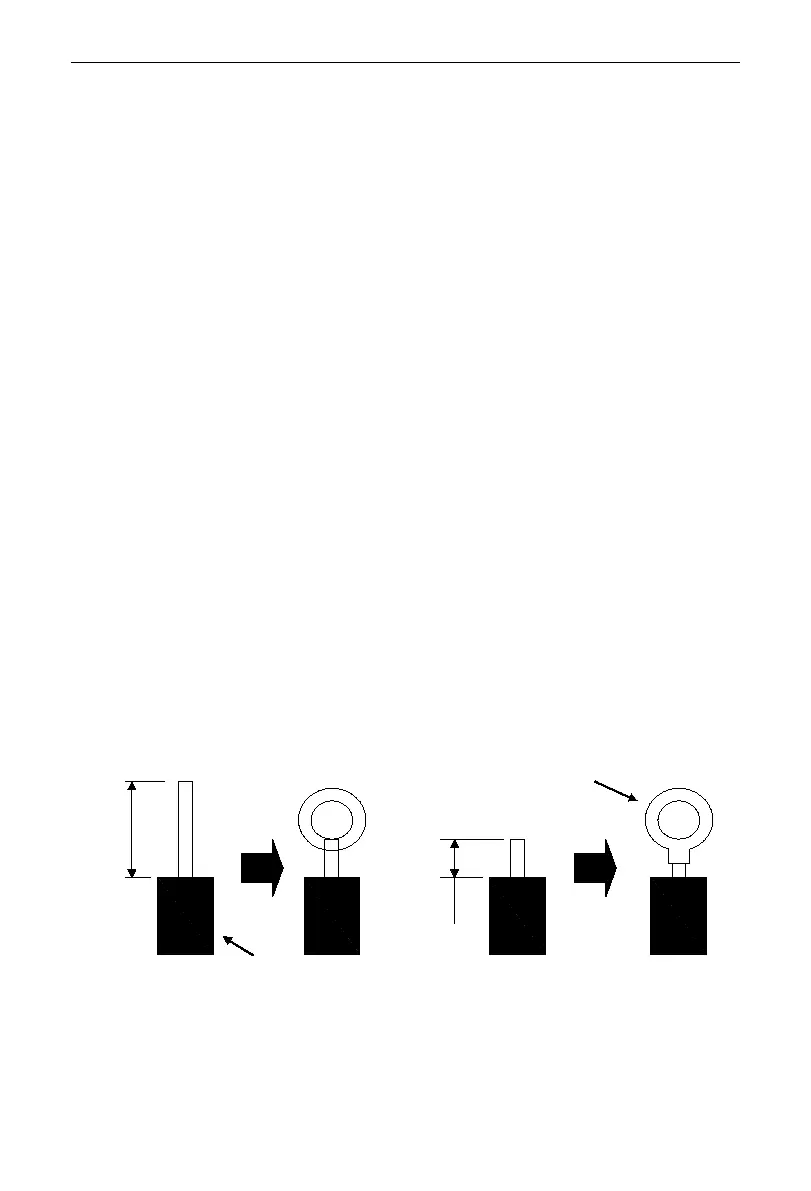

(1) For solid wires (as shown below):
1) Use wire cutters to cut off the wire end and then peel away about 25mm of
the insulation layer.
2) Use a screwdriver to unscrew the terminal screw on the terminal board.
3) Use nippers to bend the solid wire into a ring that fits the terminal screw.
4) Form a proper ring and then put it on the terminal board. Use a screwdriver
to tighten up the terminal screw.
(2) For strand wires (as shown below):
1) Use wire cutters to cut off the wire end and then peel away about 10mm of
the insulation layer.
2) Use a screwdriver to unscrew the terminal screw on the terminal board.
3) Use a round terminal fastener or clamp to fix the round terminal firmly on
the peeled wire end.
4) Locate the round terminal conduit. Use a screwdriver to replace it and
tighten up the terminal screw (as shown below).
10mm(3/8inch)
A Solid wire B Strand wire
Solderless
terminal
Insulation layer
25mm(1inch)
To Next Page
