Gree GU71P/A1-K User Manual

U-Match Series Duct Type Unit
31
Unit: mm
Item
Model
Supply Air Outlet Return Air Inlet
A B C D
GU50P/A1-K
GU50PS/A1-K
122 885 1000 200
GU71P/A1-K
GU71PS/A1-K
142 1185 1300 220
GU85P/A1-K
GU85PS/A1-K
142 1185 1300 220
GU100PH/A1-K
GU100PHS/A1-K
195 746 960 264
GU125PH/A1-K
GU125PHS/A1-K
195 746 960 264
GU140PH/A1-K
GU140PHS/A1-K
195
1150 1360 264
GU160PH/A1-K
GU160PHS/A1-K
195
1150 1360 264

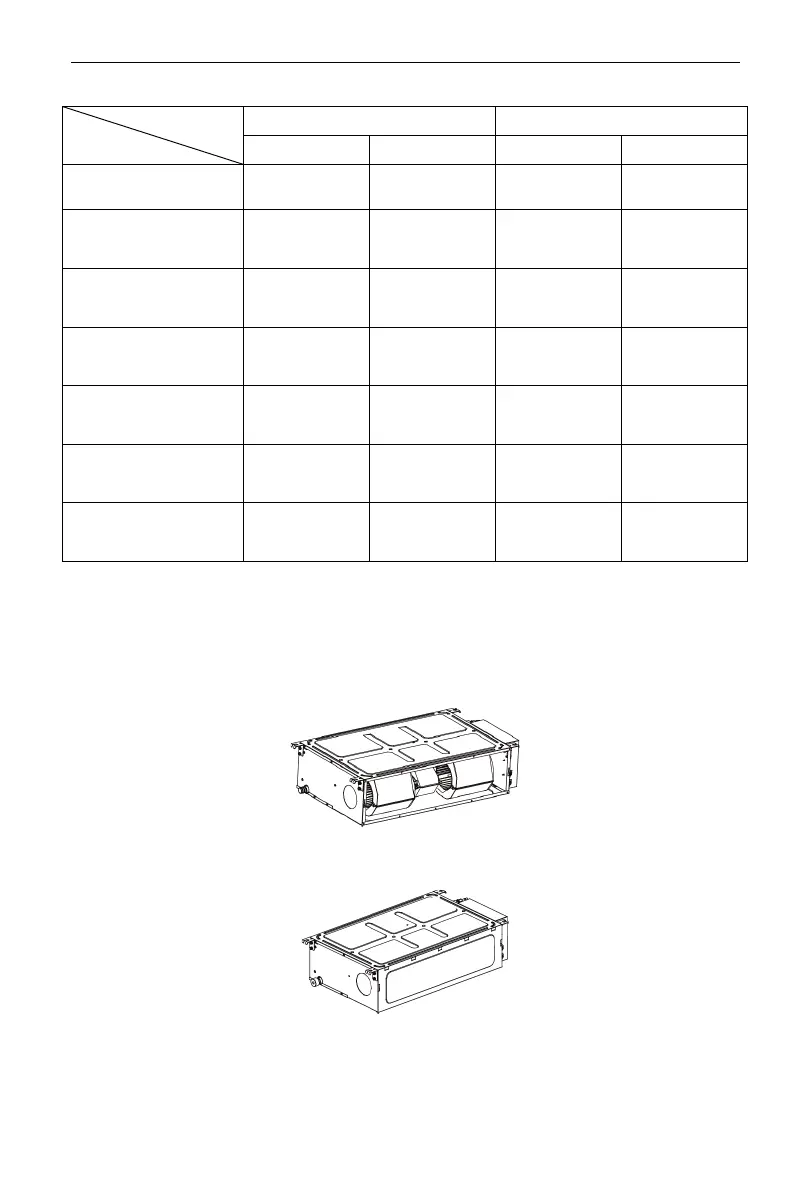

3.2.7.2 Return Air Method
(1) The default ex-factory return air method is from the back. The return air cover
shall be installed at the bottom of the unit, as is shown in the following figure.
(2) If the downward return air method is adopted, then install the return air cover at
the back of the unit after dismantling it.
(3) Connect the return duct to the return air inlet of indoor unit with rivet, and the
other side shall be connected to the return air inlet. For the convenience of free
height adjustment, canvas duct can be made and reinforced with iron wire to a
folding shape.
