Technical Information
Service Manual
3.1 Indoor Unit

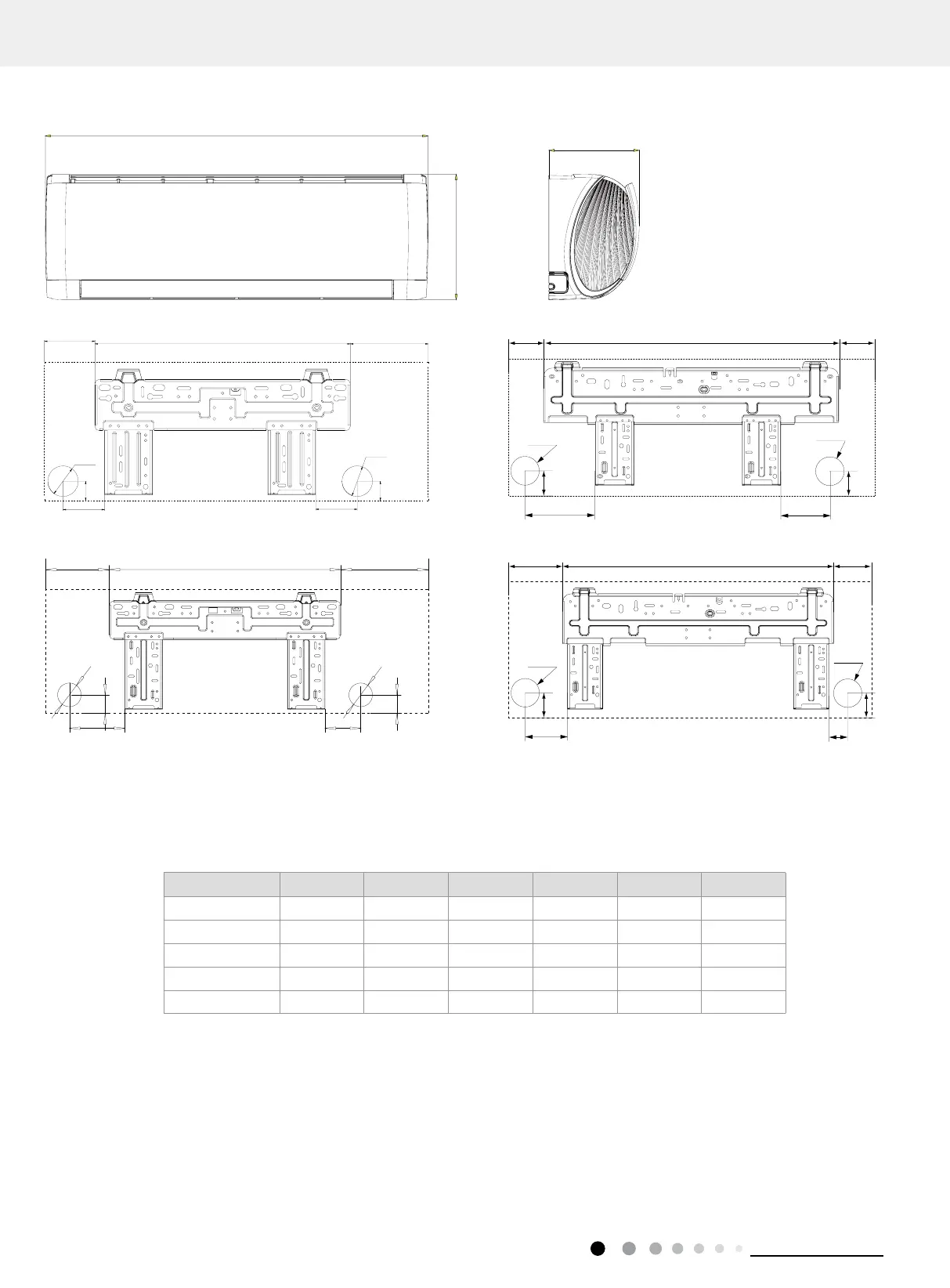

3. Outline Dimension Diagram
Model W H D W1 W2 W3
AFA 744 254 185 116 462 166
AFB 819 256 185 154 462 203
AFC 894 291 211 148 542 204
AFD 1017 304 221 127.5 685 204.5
AFE 1135 328 247 215.5 685 234.5
Unit:mm
W3W2
W1
W3W2
W1
W3W2
W1
83
Ø55
43
Ø55
43
130
W
D
H
79
154
43
Φ70
Φ70
43
140
190
38
Φ55
Φ55
38
AFD
AFC
AFA/AFB
AFE
75
35
Φ55
W3W2
W1
Φ55
35
75
