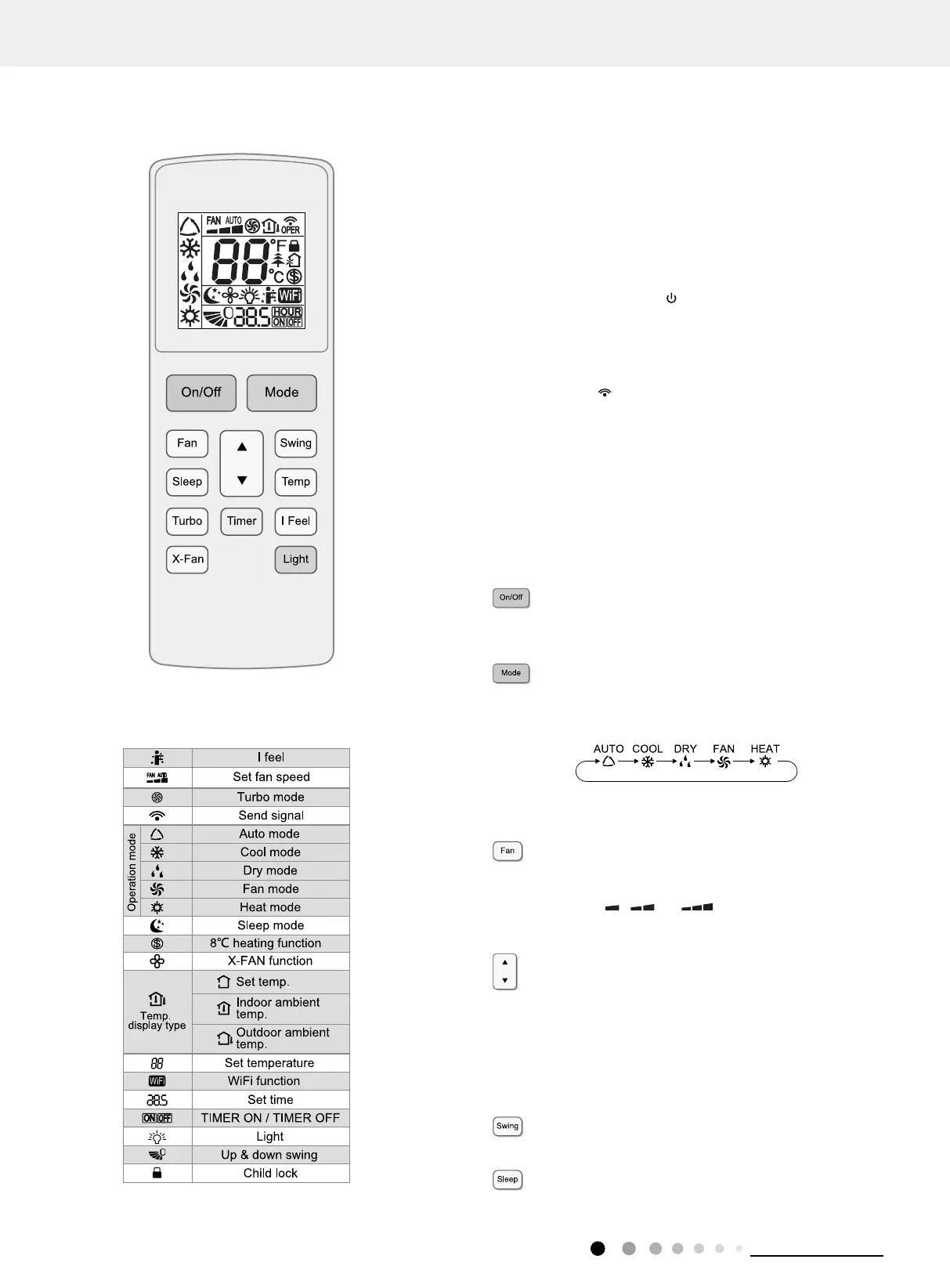

6.1 Remote Controller Introduction of YAW1F
6. Function and Control
Buttons on remote controller
Introduction for icons on display screen
Introduction for buttons on remote controller
NOTE:
●
This is a general use remote controller, it could be used for
the air conditioners with multifunction; For some function, which
the model doesn't have, if press the corresponding button on the
remote controller that the unit will keep the original running status.
●
After putting through the power, the air conditioner will give out
a sound. Power indicator " " is ON (red indicator, the colour is
different for different models). After that, you can operate the air
conditioner by using remote controller.
●
Under on status, pressing the button on the remote controller,
the signal icon " " on the display of remote controller will blink
once and the air conditioner will give out a "di" sound, which
means the signal has been sent to the air conditioner.
●
Under off status, set temperature and clock icon will be
displayed on the display of remote controller (If timer on, timer
off and light functions are set, the corresponding icons will be
displayed on the display of remote controller at the same time);
Under on status, the display will show the corresponding set
function icons.
button
Press this button to turn on the unit. Press this button again to turn
off the unit.
button
Each time you press this button, a mode is selected in a sequence
that goes from AUTO, COOL, DRY, FAN, and HEAT, as the
following:
NOTE:
●
Heat mode: Only for models with heating function.
button
This button is used for setting Fan Speed in the sequence that
goes from AUTO, , , to , then back to Auto.
NOTE:
●
Fan speed under dry mode is low speed.
button
Press "▲" or " ▼" button once increase or decrease set Press ▲ /
▼ button to increase / decrease set temperature. In AUTO mode,
set temperature is not adjustable.
When setting Timer On or Timer Off, press "▲" or "▼" button to
adjust the time.
button
Press this button to set up & down swing angle.
button
To Next Page
