37
Technical Information
Service Manual

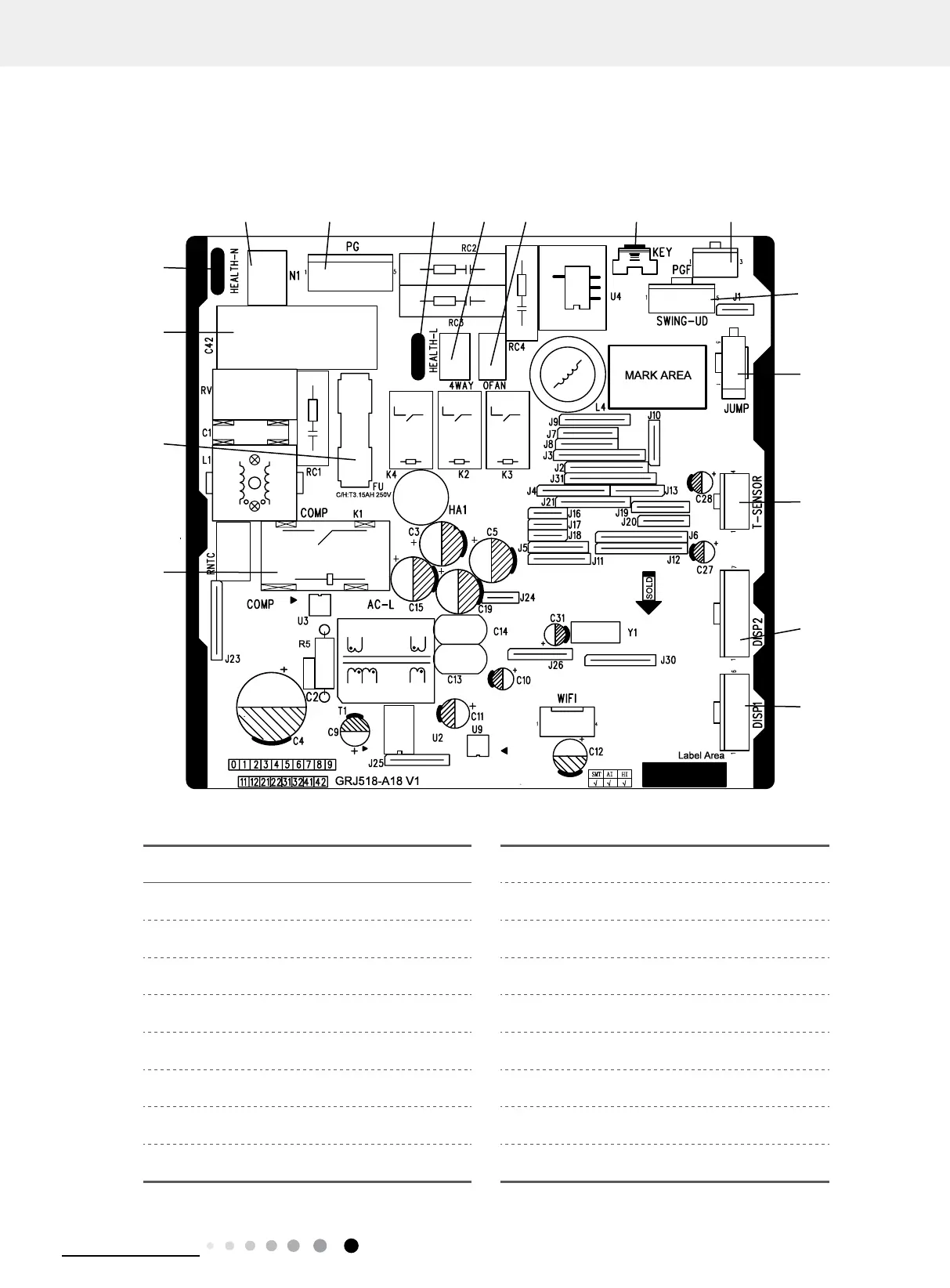

5.2 PCB Printed Diagram
● Indoor Unit
No. Name No. Name
1 Wiring terminal of compressor 9
Wiring terminal of 4-way valve
(heat pump unit)
2 Fuse 10 Auto button
3 Fan capacitor 11 Feedback wiring terminal of PG motor
4 Neutral wire terminal of cold plasma 12
Wiring terminal of up&down swing
motor
5 Terminal of neutral wire 13 Jumper cap
6 Wiring terminal of PG motor 14
Wiring terminal of indoor unit
temperature sensor
7 Live wire terminal for cold plasma 15
Wiring terminal 2 for display receiving
board
8
Wiring terminal of outdoor fan
(heat pump unit)
16
Wiring terminal 1 of display receiving
board
07/09/12K
1
2
3
4
56
78
9
10 11
12
13
14
15
16
