Installation and Maintenance
Service Manual

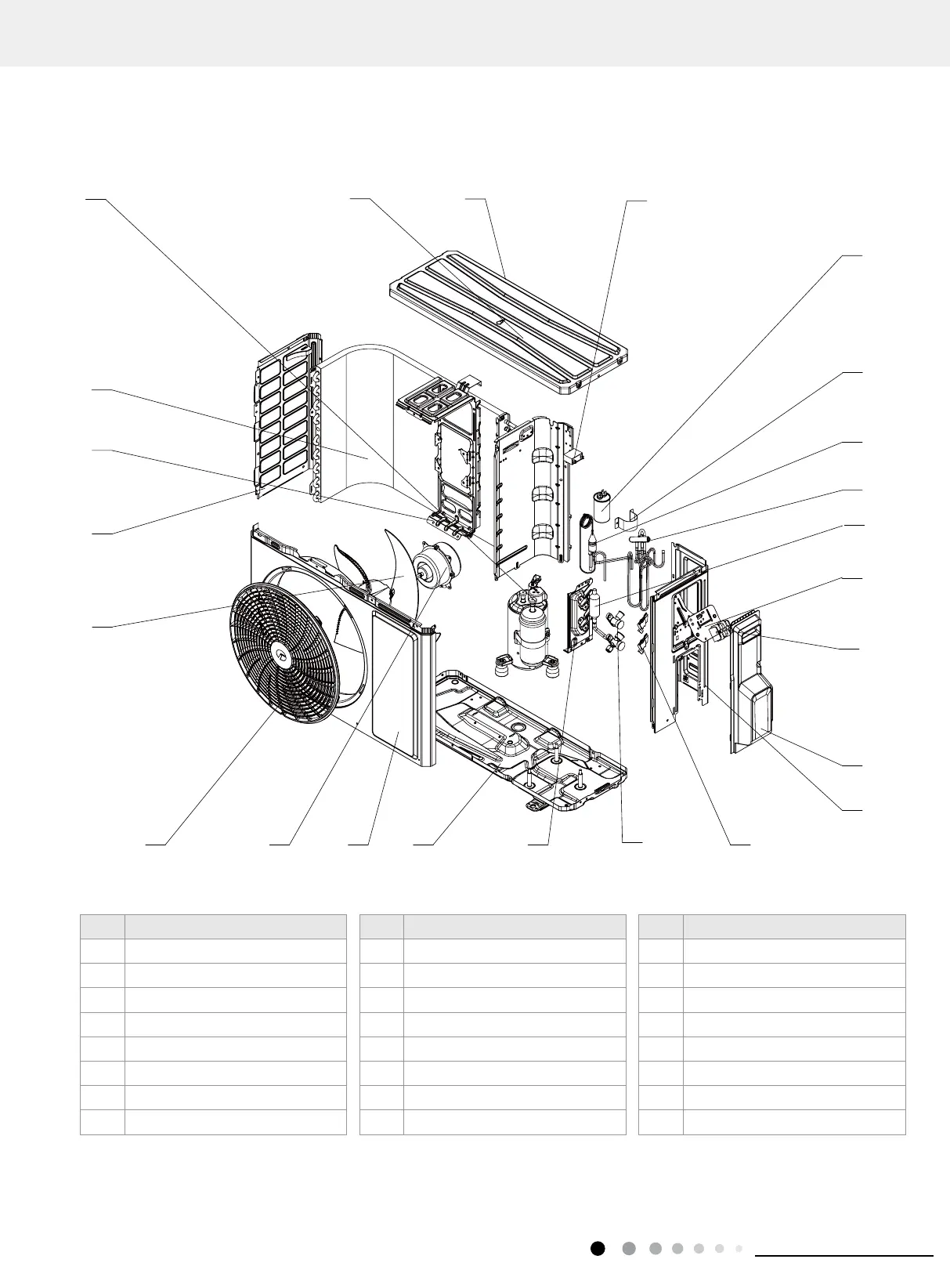

10.2 Outdoor Unit
07K/09K
4
2
1
7
3
5
6
8
9
10
11
12
13
14
1516171819
20
21
24
22
23
Some models may not contain some parts, please refer to the actual product.
NO. Description
1 Top Cover Sub-Assy
2 Top cover
3 Capacitor CBB61S
4 Capacitor CBB65
5 Capacitor Clamp
6 Strainer (fork shape)
7 4-Way Valve Assy
8 Silencer
NO. Description
9 Earthing Plate Sub-assy
10 Terminal Board
11 Handle
12 Right Side Plate
13 Valve Support Block
14 Cut-off valve 1/4(N)
15 Valve Support
16 Chassis Sub-assy
The component picture is only for reference; please refer to the actual product.
NO. Description
17 Cabinet
18 Fan Motor
19 Front Grill
20 Axial Flow Fan
21 Left Side Plate
22 Motor Support
23 Condenser Assy
24 Compressor and Fittings
