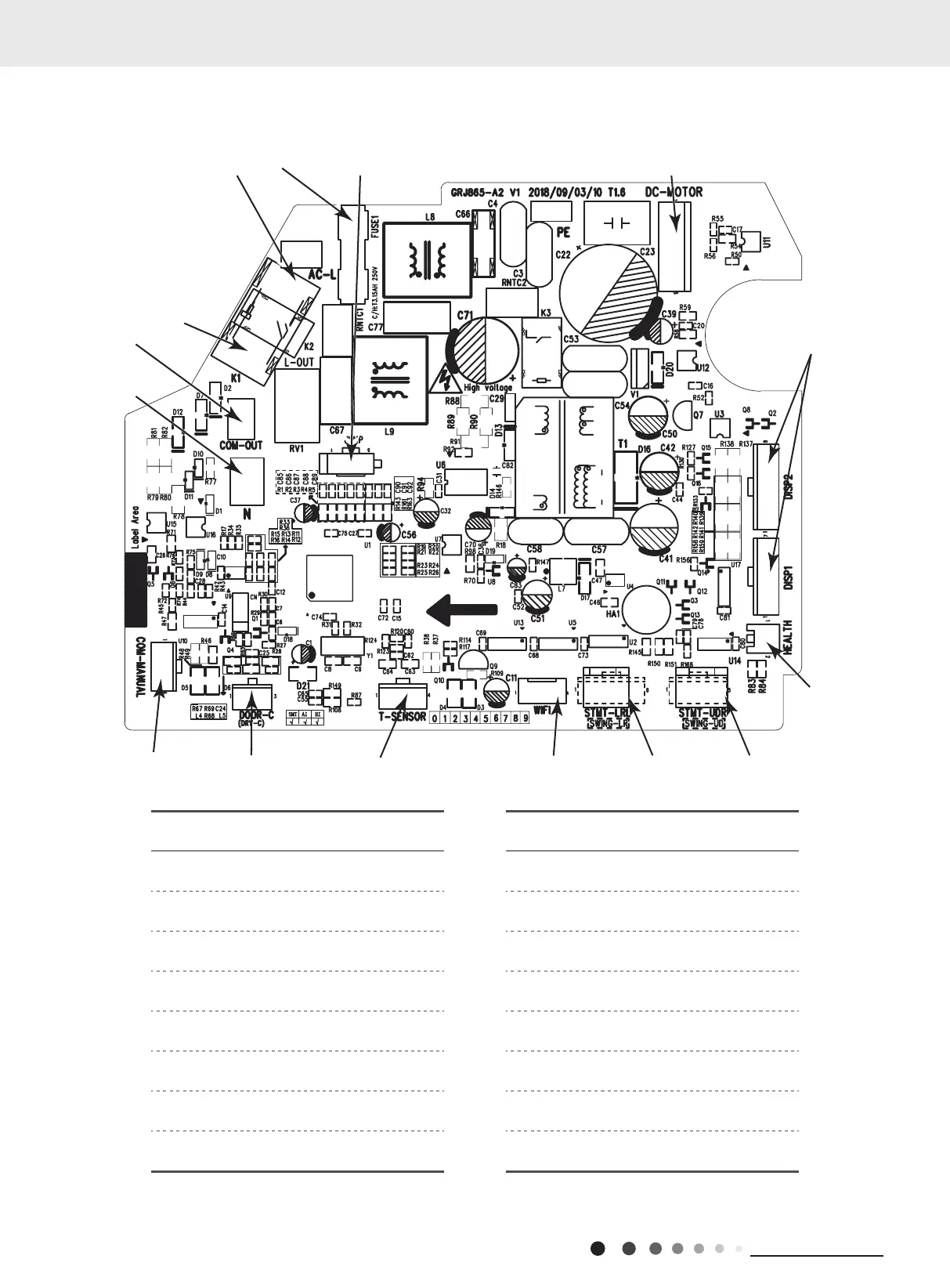

5.2 PCB Printed Diagram
Indoor Unit
2
3
45
6
7
8
9
13
1
111415 1012
No. Name No. Name
1 Interface of netural wire 9 Interface of cold plasma
2 Interface of communication wire 10 Interface of right drive box
3 Firewire control output 11 Interface of left drive box
4 Input terminal of live wire 12 Interface of WIFI
5 Fuse 13 Interface of temperature sensor
6 Jumper cap 14 Interface of gate control
7 Interface of DC motor 15 Interface of wired controller
8 Interface of display
