66
Installation and Maintenance
Service Manual

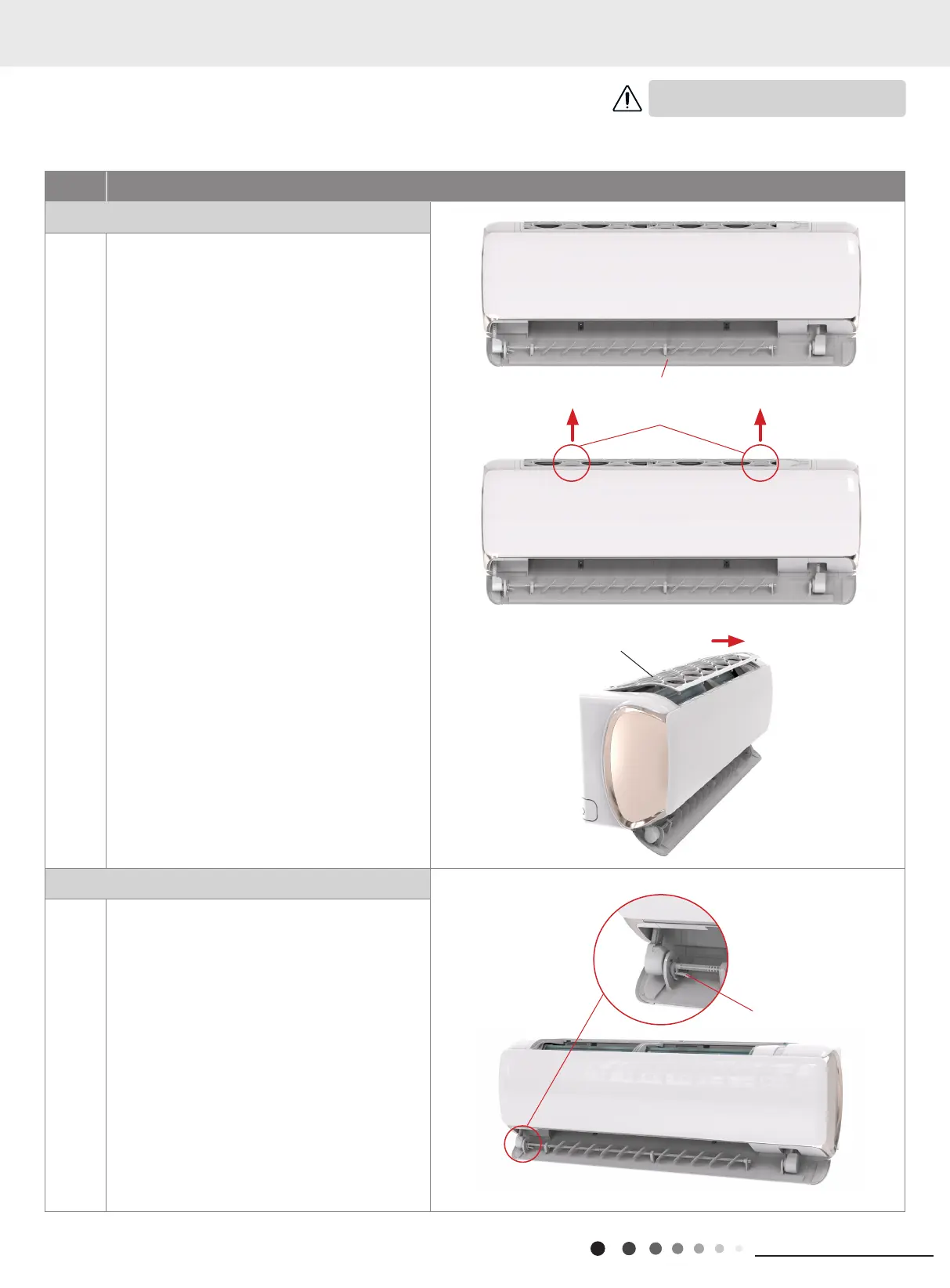

11. Removal Procedure
11.1 Removal Procedure of Indoor Unit
Caution: discharge the refrigerant
completely before removal.
Step Procedure
1. Remove lter
Under on status, press clean button on the remote
controller to enter into clean mode.
Once the air guide louver has been pushed to the
maximum position, please cut off the power.
Hold the handle on the lter, pull it upwards to let
the clasp at the top part of the lter loose, push it
forwards and then the lter can be pulled out.
2. Remove horizontal louver
Hold the clasp spring at the left side of the
connection rod of swing blade, pull the connection
rod to the right side to get loose the hook of
connection rod used for xing the swing connection
rod.
Air guide louver sub-assy
clasp
Filter
Clasp spring
To Next Page
