Operation procedures/pictures

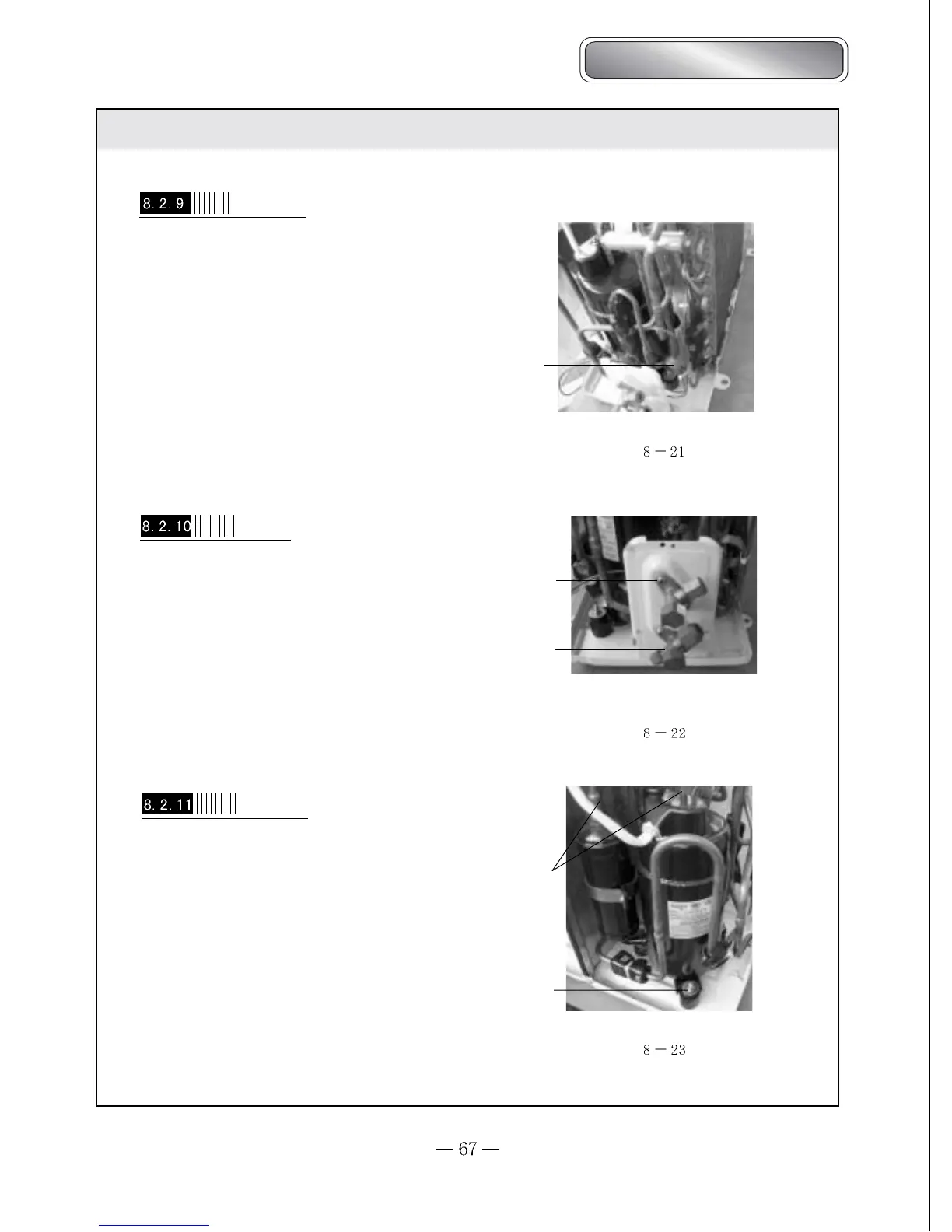

D isassemble the capillary
Unsolder the double end of the capillary, could dis-
assemble the capillary, do not let the dregs block
the capillary.(As shown in Fig.8-21)
Capillary assy
Fig.
Fig.
Screw
Valve
Solder joint
Fig.
Fig.
Disassemble the valve
Using the screwdriver to screw off the screws which
fix the valve, then unsolder the connection pipe which
connect with the valve. Then can disassemble the vavle.
(As shown in Fig.8-22)
Disassemble the compressor
Unsolder 2pcs solder joint from the compressor,
and use the spanner loose 3pcs base screw, can
disassemble the compressor.(As shown in Fig.8-23)
Base screw
Bird Single-Split Type
