Tailings 3
check if it is firm enough.
4. Ensure that the install height of indoor unit is 2m or more.
2. After wrapped piping and wiring (as shown in fig.5), pull them through the piping hole.
3. Hang the 2 mounting slots behind indoor unit on the upper tabs of the rear panel and
Tailings 2
Tailings 1

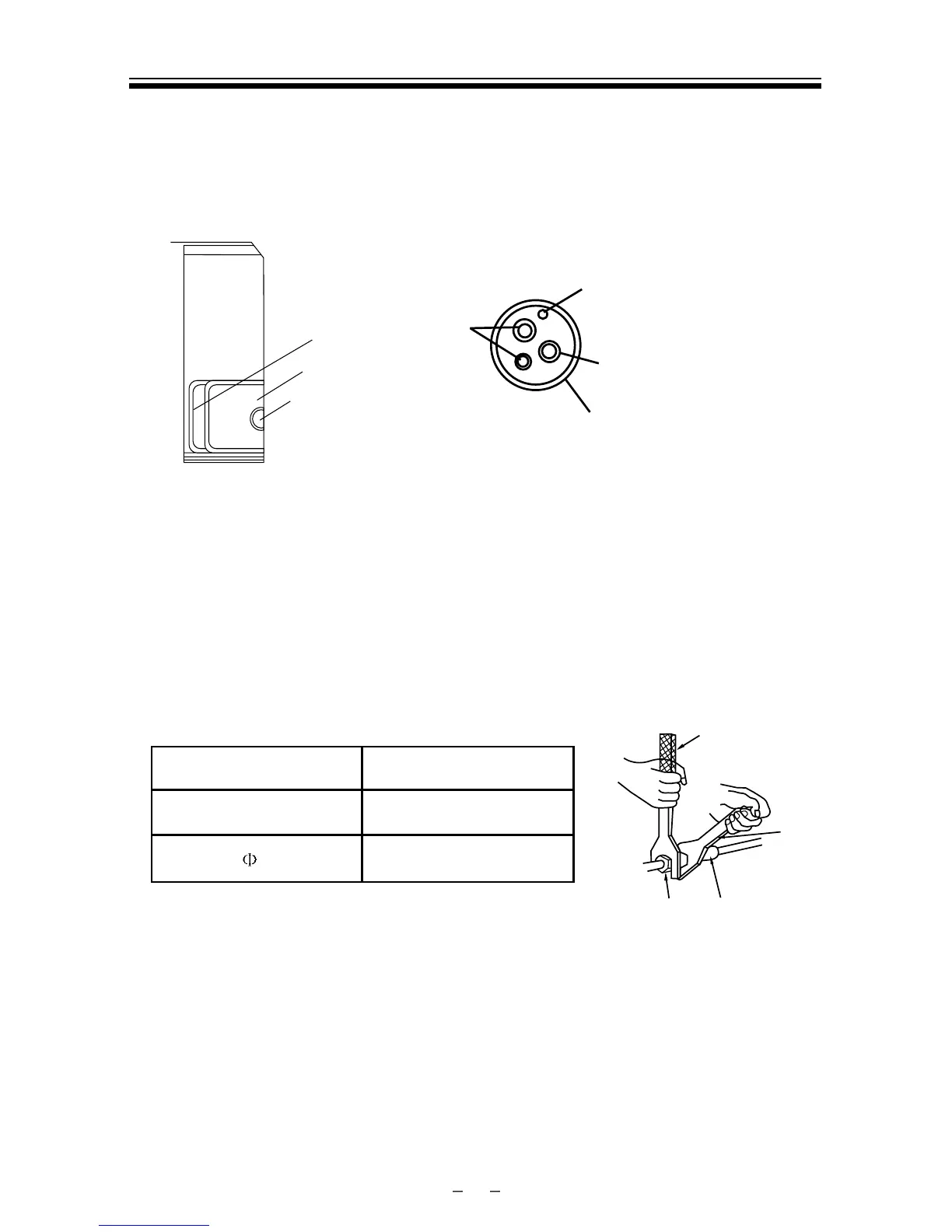

Fig. 4
Fig. 5
Connect
Power connect wire
Drainage hose
Wrapping tape
Note: Too great of torque would damage nuts.
◆ Install the outdoor unit
☆ Install connection pipe
1. Align the flare of connection pipe to the joint flare of corresponding valve.
2. Tighten nuts on connection pipe forcibly then tighten it by spanner as shown in right figure.
9.5
15~20
31~35
Refer the following list for tightening torque
Hex nut
Tighten torque (N.m)
Ф
6
Joint
Spanner
Nuts on
Torque wrench
1. Take off front side plate of outdoor unit and make through outdoor unit wire hole,
☆ Wiring connection
2. Take off wire clamp, connect the core of power connect wire onto terminal of line bank
of terminal board and fix it. Wiring allocation must be according with that of indoor unit.
3. Fix power connection wire by wire clamp.
4. Ensure that wire had been fixed well.
5. Install front side plate.
２４
pipe
Refer the following list for tighten torque
connection pipe
and put on wire collar.
