Service Manual
Installation and Maintenance
44

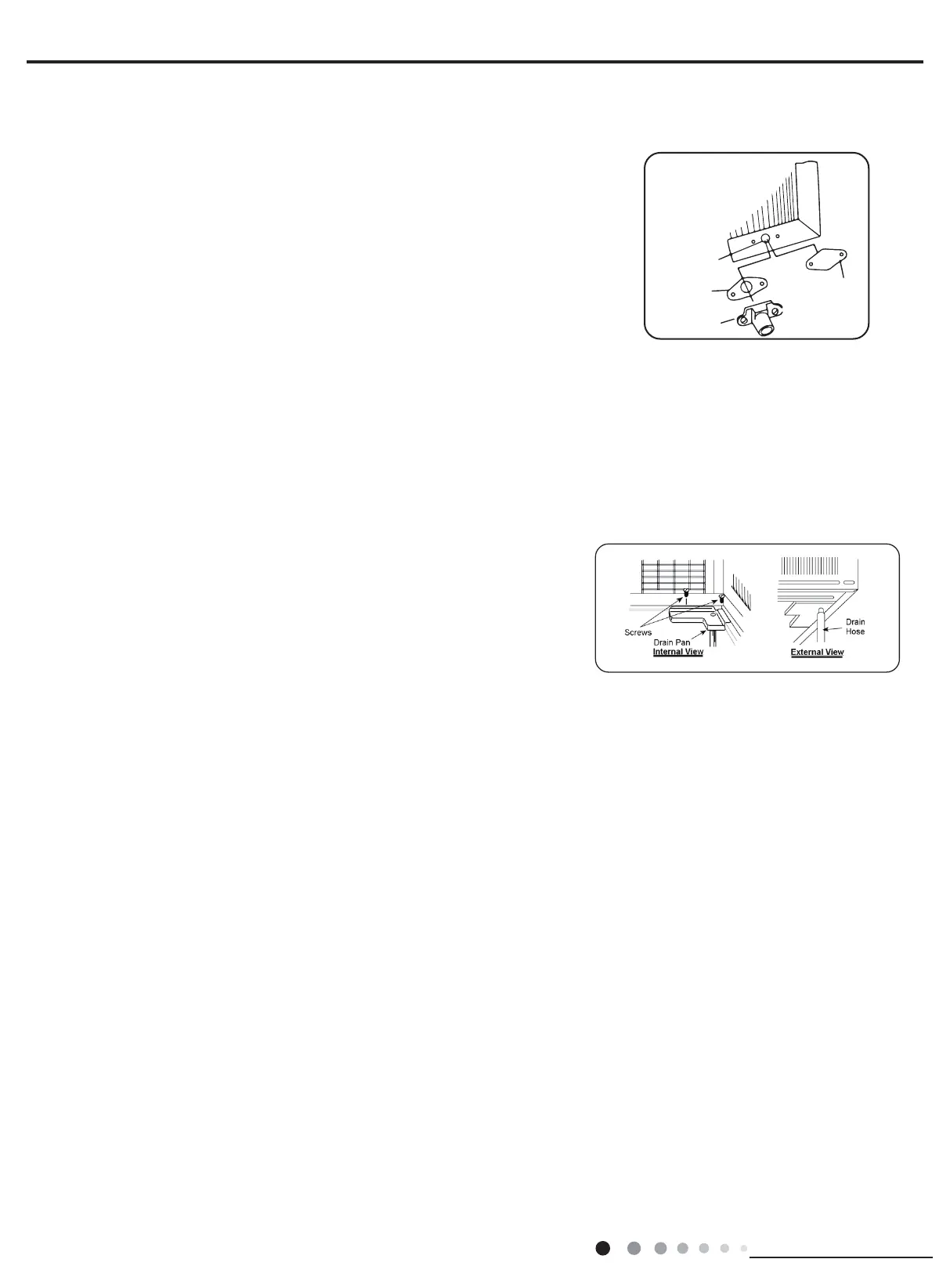

8.6 Drain Water for One Style
8.7 Drain Water for Another Style
8.8 Notes for Installation
To get the maximum cooling efciency,the air conditioner is designed to splash
the condensate on the condenser coil.
If the splashing sound annoys you, you can provide an outside drain by using
the following procedure,which may however cause a small loss of performance.
1. There is a drainage outlet at the back of the unit.
2. Remove cover from the drainage outlet, and then connect drainage joint to it
with screw.
3. Connect the drain hose to the outlet.
Note:
Drain hose or tubing can be purchased locally to satisfy your particular needs.
To get the maximum cooling efciency, the air conditioner is designed to splash
the condensation water on thecondenser coil.
To the cooling only unit,If the splashing sound annoys you, you can provide
an outside drain by using the following procedure, whichmay however cause a
small loss of performance.
1. Slide out the chassis from the cabinet.
2. Remove the rubber plug from the body base plate.
3. Install the drain pan to the corner of the cabinet with 2 screws.
4. Connect the drain hose to the outlet on the drain pan bottom.
5. Slide the chassis into its original place in the cabinet.
Note:
Drain hose or tubing can be purchased locally to satisfy your particular needs.
1) Remove
Before removing air conditioner to the other place, you shouldcontact the seller rstly.Then it must be done under the direction of the
professionaltechnician. In addition, the charge of this must be paid.
2) Noise
● Install in a location where is rm enough to avoid the enlargement of noise and vibration.
● Don’t put anything in front of the outlet of outdoor unit to avoid increasing noise.
● Be sure that hot air or noise will not inconvenience r neighbors.
● Please contact the seller as soon as there is strange noise during operation.
● Please use the safety support.
3) Electric wiring
● Must connect with ground reliably.
● The exclusive circuit must be used. But removable socket can’t be used because poor contact of it can cause over heat or re.
● Don’t pull the power cord strongly.
● In xed circuit, there must be electricity leakage protection switch and leakage current is less than 30mA.
● Connecting method between air conditioners and power cord and interconnecting method of each individual element with one
another should accord with wiring diagram on the unit.
● The air conditioner should be installed in accordance with national wiring regulation.
● An all-pole disconnection switch having a contact separation of at least 3mm in all poles should be connected in xed wiring.
● Air switch (thermal-magnetic breaker) should be installed in the circuit If the supply cord is damaged,it must be replaced by the
manufacturer or your dealer or a qualied person to avoid a hazard.
● All The dectrical work must be done according to the local wiring regulations.
Drainage outlet
Washer
Drainage joint
Install
Cover
Remove
