2 Wired Controller
2.1 Control panel

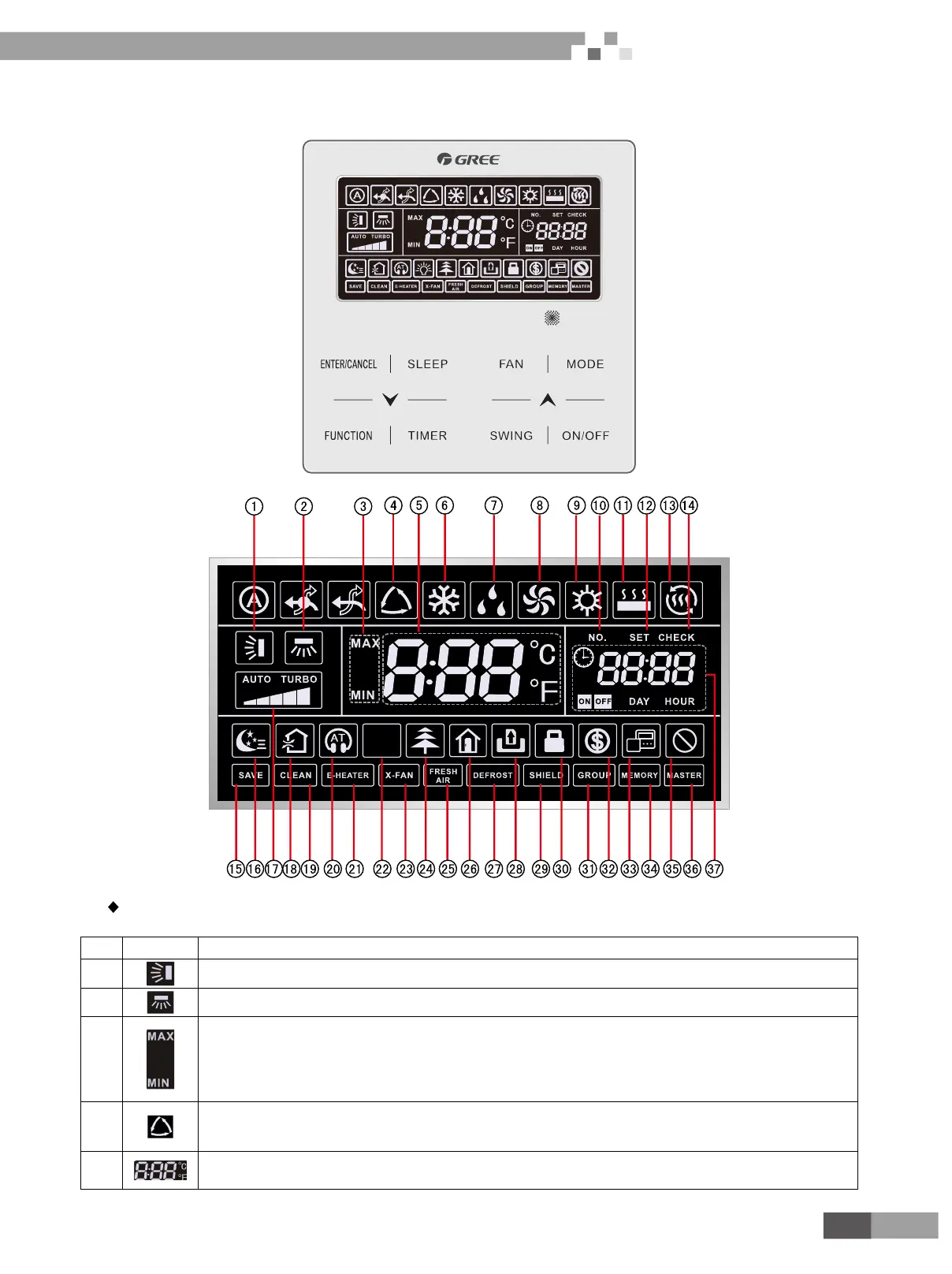

Fig. 1.1 Appearance of wired controller
Fig. 1.2 LCD graphics of wired controller
LCD Display Instruction
Table 1.1 LCD display instruction
No. Symbols Instructions
1
Up and down swing function
2
Left and right swing function
3
It's valid under Save mode and displays during setting process.
Temperature lower limit for Cooling: Limit the minimum temperature value under Cooling or Dry mode.
Temperature upper limit for Heating: Limit the maximum temperature value under Heating, Space Heating or 3D
Heating mode.
4
Auto mode (Under Auto mode, the indoor units will automatically select their operating mode as per the temperature
change so as to make the ambient comfortable.)
5
It shows the setting temperature value(In case the wired controller is controlling a Fresh Air Indoor Unit, then the
temperature zone will display FAP)
