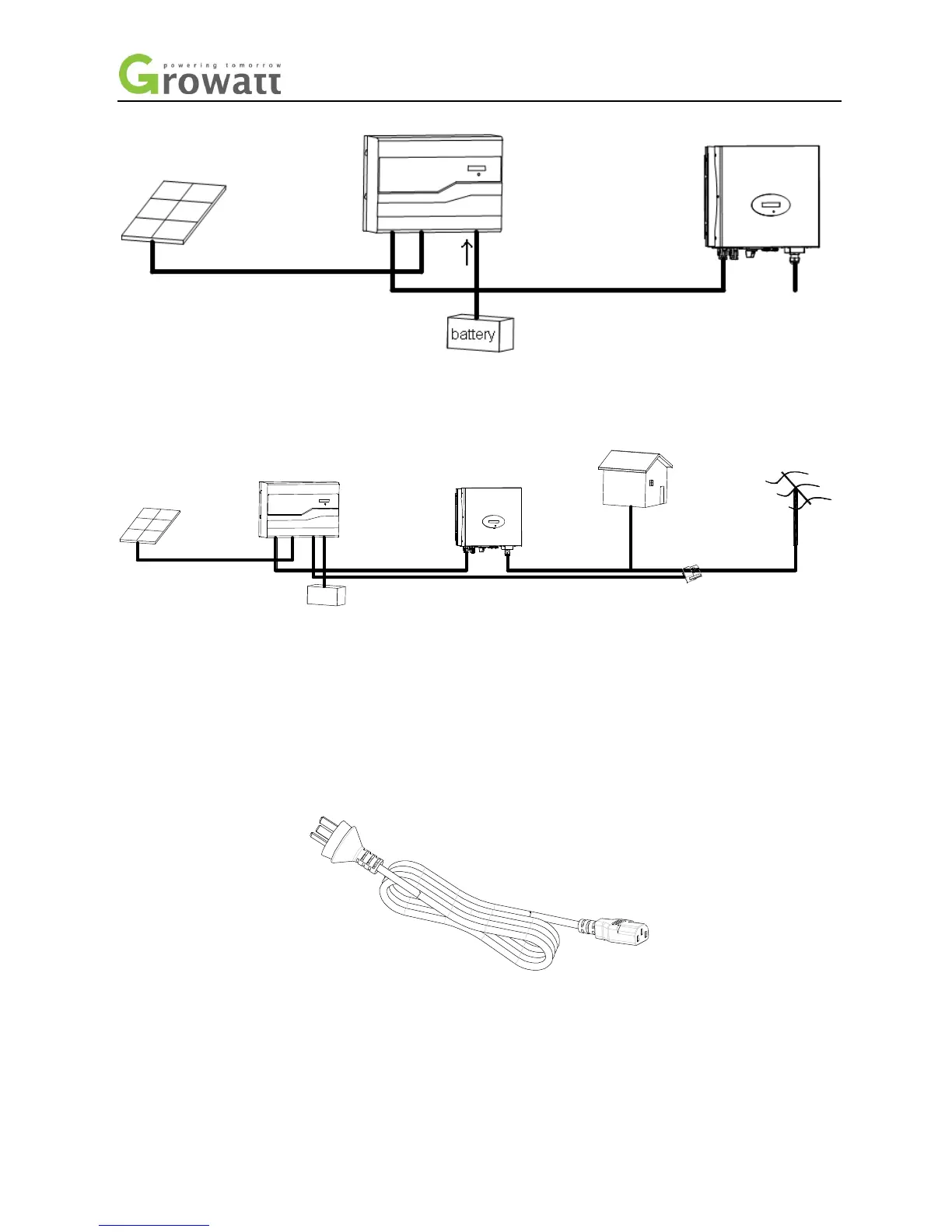

Chart 5.12
Step 4: Buckle the sensor to the residential user inlet wires, at the same time plug the AC PLUG on the Storage Plus
to electricity, and finally the entire system is ready to work smoothly.
Chart 5.13
5.4 System Electrical Connection
5.4.1 Storage Plus AC power supply connection
Preparations before connection:
A measure the grid voltage and frequency and make sure the voltage is 220/230Vac , the frequency is 50/60Hz in
single phase.
B Connect the AC cable with safety regulation to the AC PLUG section.
Chart 5.14
To Next Page
