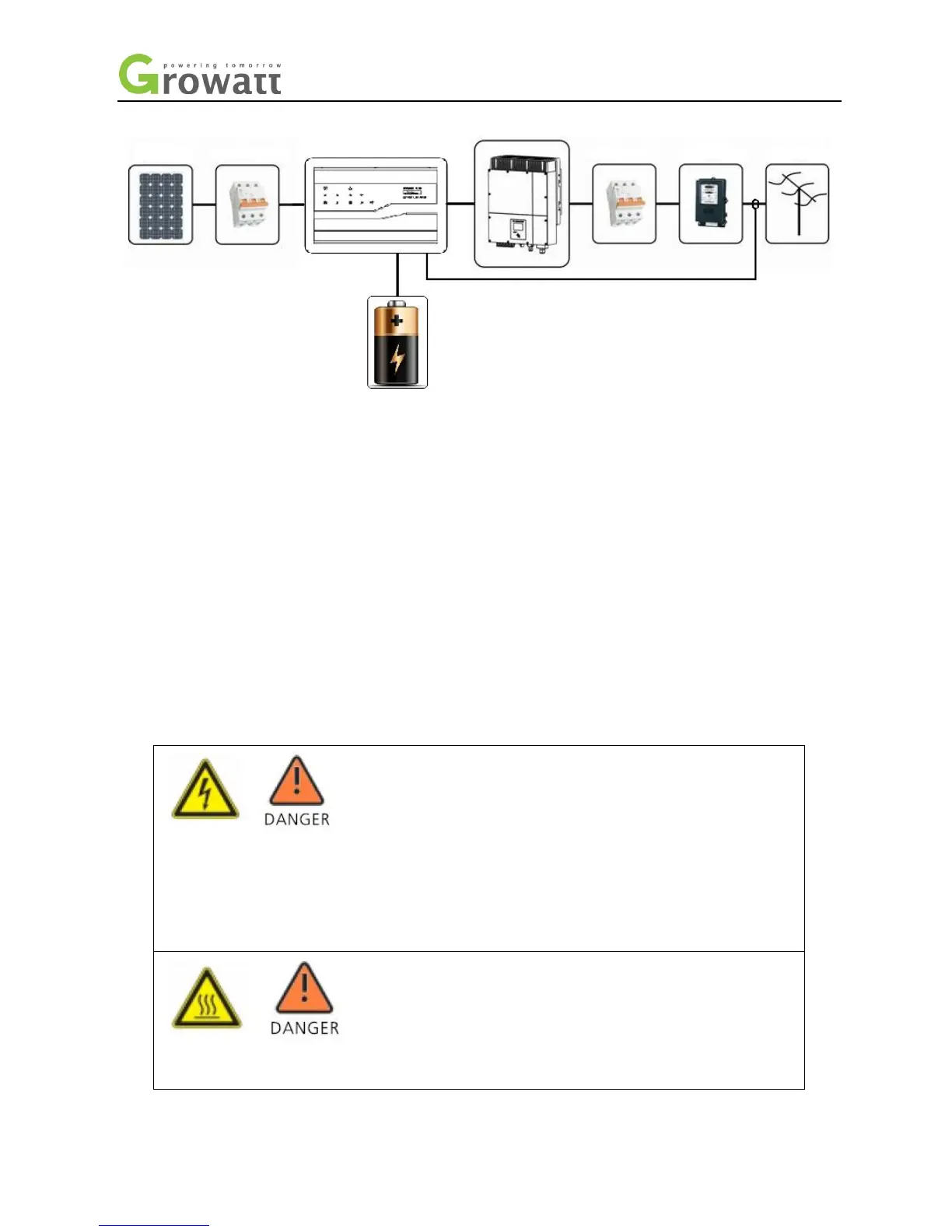

As shown above, A complete grid-connected system of PV storage consists of PV modules, storage
machine, battery, PV inverter, utility grid and other components. In the PV energy storage system, energy
storage machine and inverter are the key parts of component parts
Attention:
As the system refer to battery use, We must make sure ventilation of the service environment and
temperature control in order to prevent the danger of battery explosion, Battery recommended installation
environment must be strictly in accordance with the specification in IP20 environment, meanwhile the
temperature should be control in the 0-40℃ of indoor ventilation. If the chosen PV modules needs to positive or
negative ground connection, please contact with Growatt for technical support before installation.
2.2 Safety Measure
Risk of high voltage！
Relevant operation for professional personnel
Please notice children, disabled, laypeople do not close
Supervise and make sure children don’t play near the installation position of energy storage
machine
Risk of burns on the parts shell of energy storage machine ！
During the work, Cover, shell around, radiator is likely to be hot
