6.2.4 Shutdown mode
Under normally circumstances, the energy storage machine will be standby state all the time, If need energy
storage machine to stop working, you must disconnect the machine’s providing, then the energy storage machine
will turn into shutdown mode automatically.
NOTICE:
If the photovoltaic array PV side still have voltage, must dial the DC SWITCH to off status, to turn off the PV input.
6.3 LED AND LCD’S DISPLAY

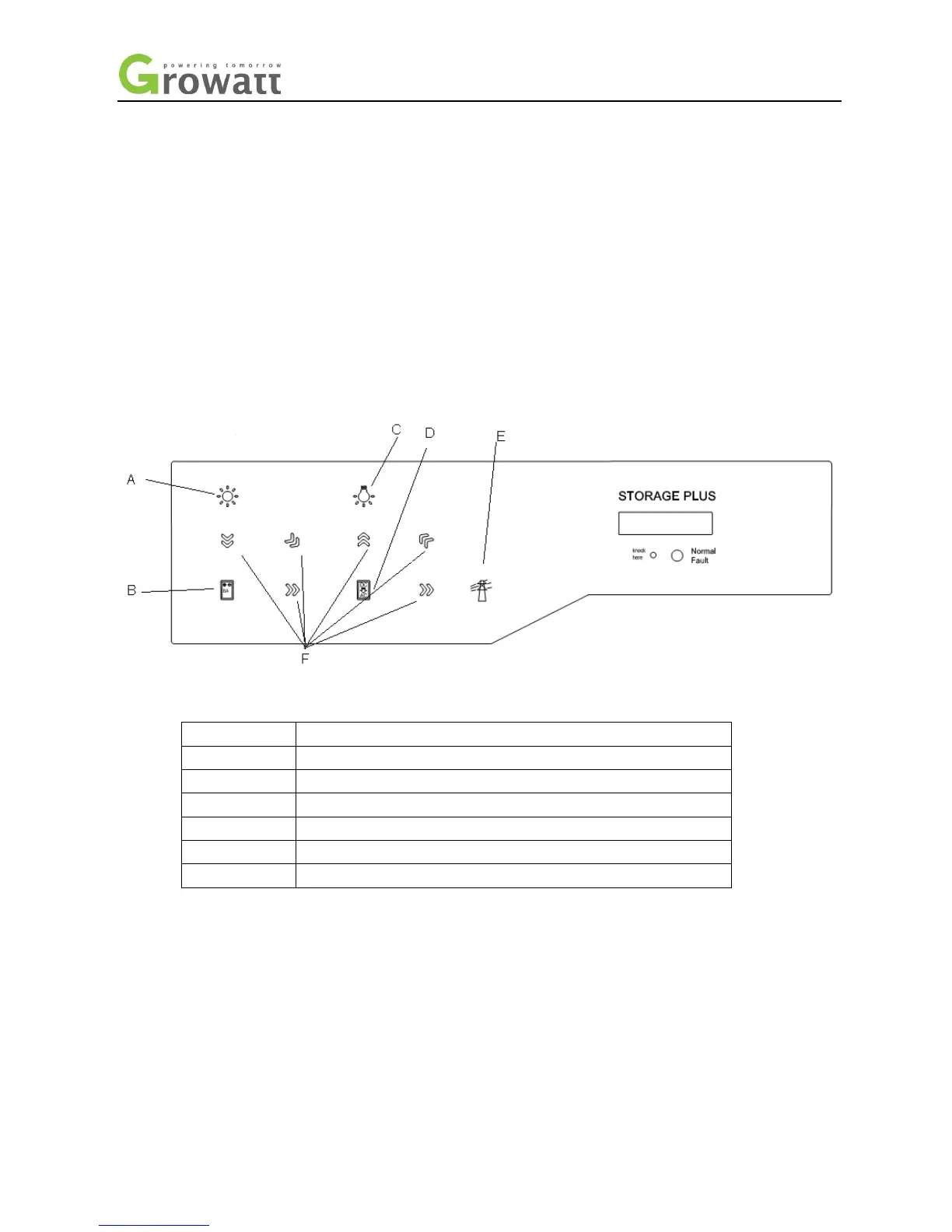

6.3.1 LED display area
Chart 6.2
location description
A
represent photovoltaic panel
B
storage system(include the machine and battery)
C
home use load contracted notation
D
PV inverter
E
Power grid
F
each of power direction indicating arrow
6.3.2 Each status’ LED light indication schematic
State one: before dawn, The energy stored in the battery is ran out, then the amount of home use load energy
needed by the power grid to supply, the whole LED light operate indication schematic as follow (for example):
