10 PNEG-900 Series 2000 Autoflow Fan/Heater and Control Installation Instructions
3. Installation
Fan/Heater Mounting
NOTE: Do not install this control panel near any transformers or any other device that will produce an
electro magnetic field.
1. Inspect the fan platform for proper installation per instructions in the Top Dry erection manual.
2. Raise the Top Dry fan/heater units to the platform. Use the Table below to determine the height of
the platform from the base of the Top Dry unit.
3. Mount the Top Dry fan/heater units to the bin entrance sheets. Fan legs should set on the platform.
Top Dry Bin Eave Height
Autoflow Control Box Mounting

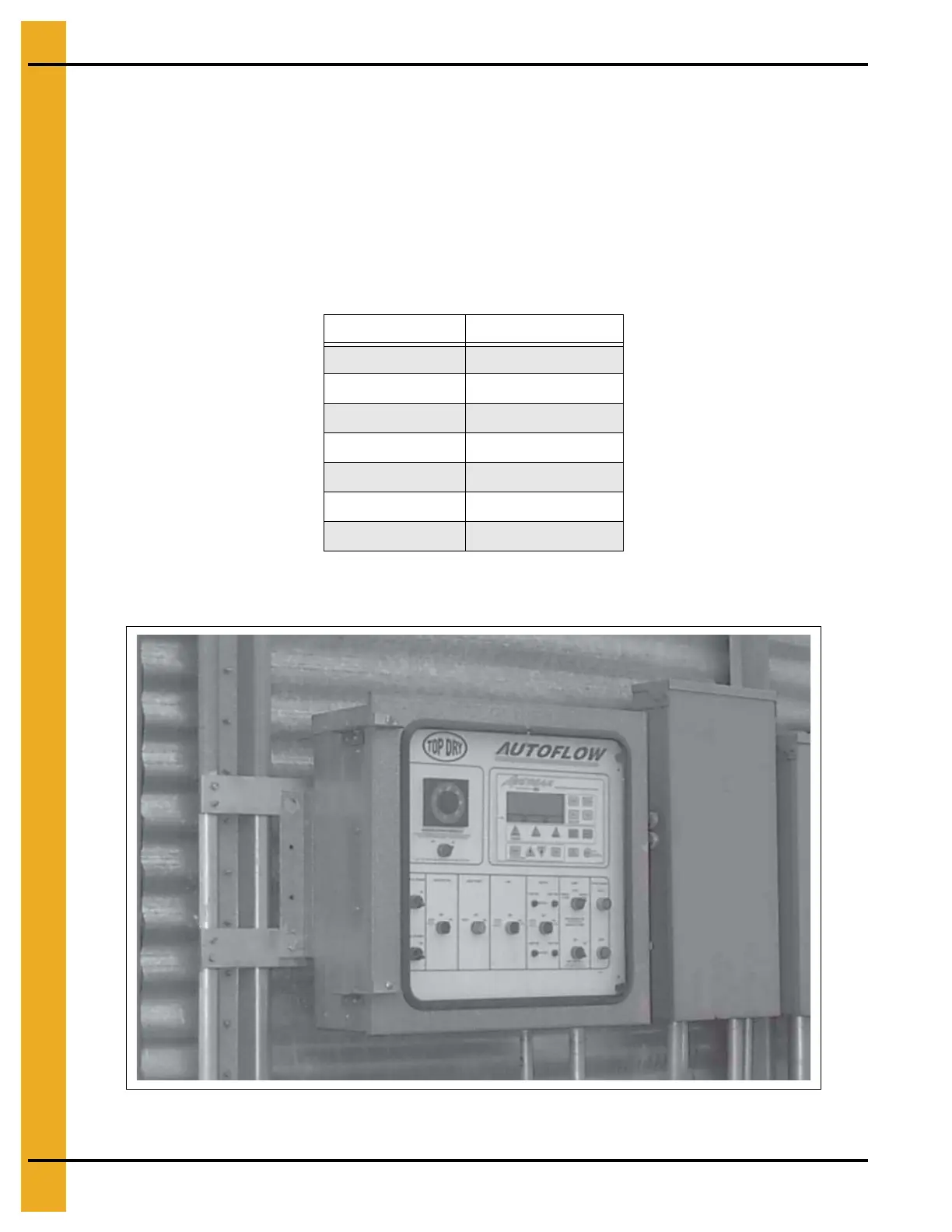

Figure 3A Autoflow Control Box Mounted on Bin
# of Rings Eave Height
5 18'-5"
622'-1"
7 25'-9"
829'-5"
9 33'-1"
10 36'-9"
11 40'-5"
