3. Installation
PNEG-900 Series 2000 Autoflow Fan/Heater and Control Installation Instructions 13
Control Box Mounting
Fill System Control Box Mounting
1. The fill system control box should be mounted at eye-level. Make sure to install the fill system control
box so that the fill system(s) and aeration fan are in view.
2. Keep in mind that wire will be used to interconnect the fill system control box with the Autoflow control
box; and, that power wires will have to be run from the entrance panel to the fill system control box
to power the fill system and aeration fan motors, which will also run from the fill system control box.
3. Use the pattern in Figure 3E on Page 14 to drill holes for the fill system control box.

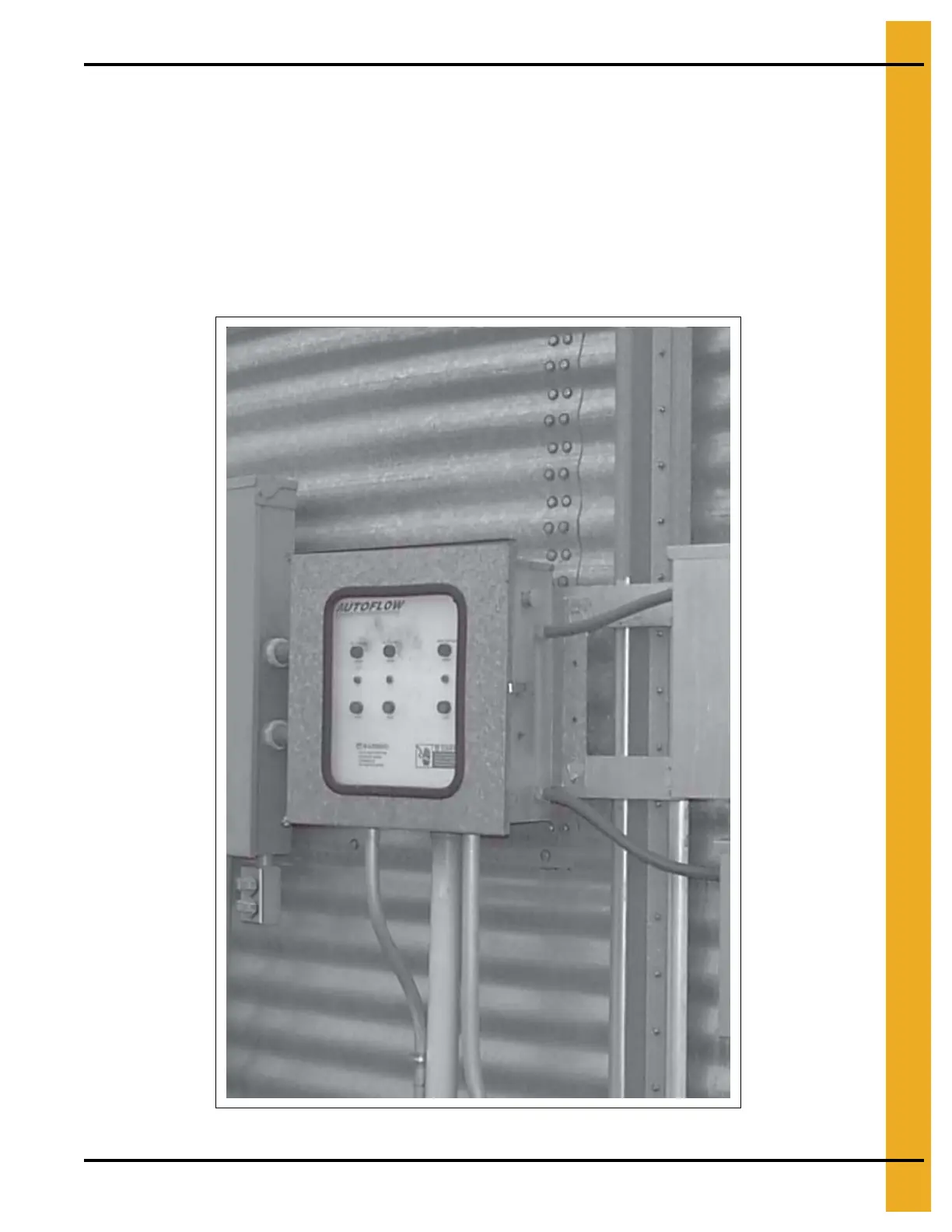

Figure 3D Fill System Control Box Mounted to Bin
To Next Page
