CONNECT SERIES SERVICE MANUAL
17
ENGLISH
Troubleshooting

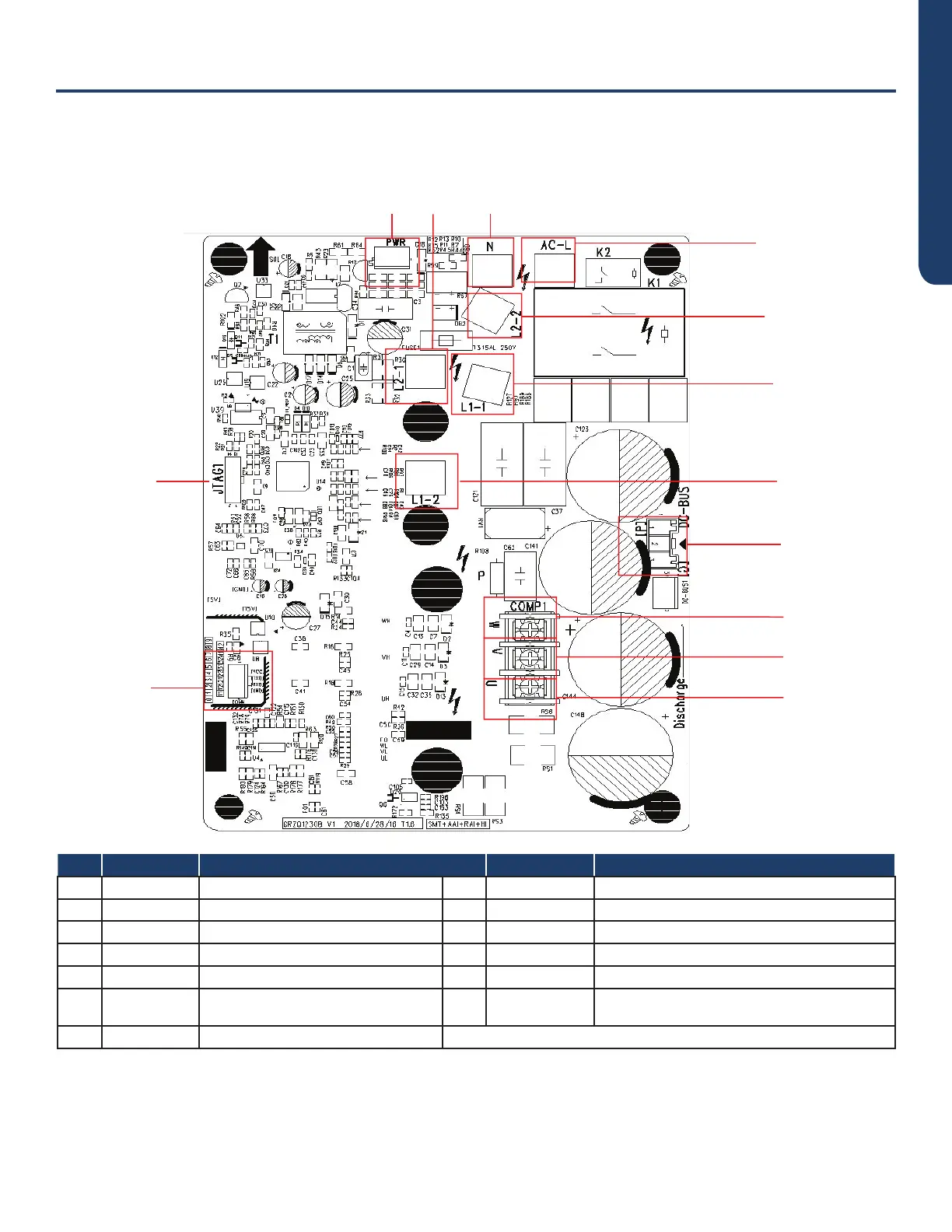

Model: AUH4860ZGDA
1
2
3
4
7
8
12
13
9
5
11
6
10
No. Printing Interface No. Printing Interface
1 L2-2 PFC induction wire (blue) 8 L1-2 PFC induction wire (white)
2 AC-L Live wire 9 U Compressor U phase terminal
3 L1-1 PFC induction wire (brown) 10 V Compressor V phase terminal
4 N Neutral wire 11 W Compressor W phase terminal
5 JTAG1 Programming interface (for testing) 12 PWR Drive power supply terminal
6 COMM
Communication terminal, same with
COMM
13 DC-BUS Power discharge terminal (for testing)
7 L2-1 PFC induction wire (yellow)
