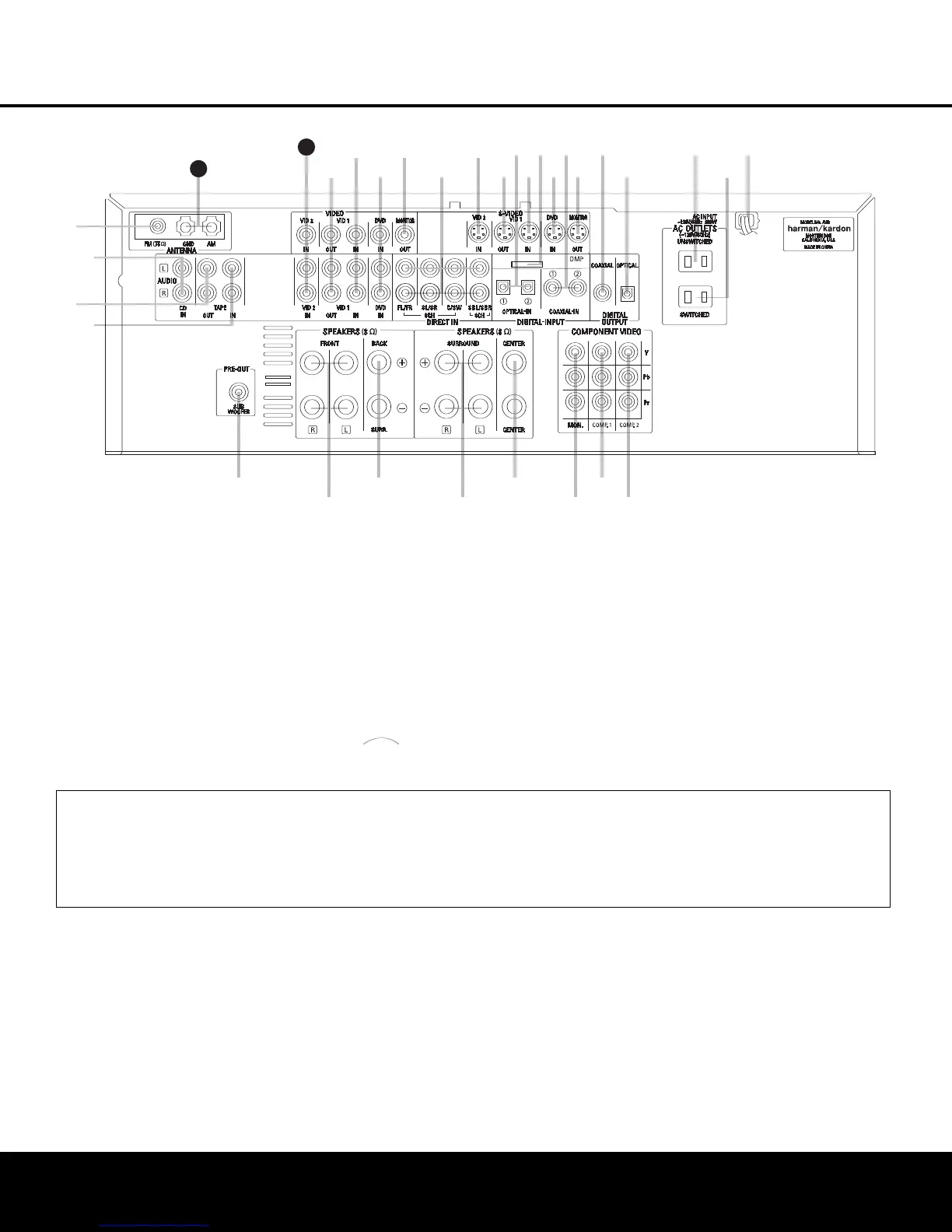

REAR-PANEL CONNECTIONS
7
•
∞
¶
⁄
fi
ª
¡
£
‹
°
b
d
g
j
i
a
™
¢
§
‚
¤
›
fl
‡
·
c
e
f
h
k
32
3
1
1
40140
(
100W, 1A MAX)(100W, 1A MAX)
(50W, 0.5A MAX)(50W, 0.5A MAX)
T
he Bridge
REAR-PANEL CONNECTIONS
¡ FM Antenna Jack
™ CD Audio Inputs
£ Tape Outputs
¢ Tape Inputs
∞ Subwoofer Output
§ Front Speaker Outputs
¶ Surround Back Speaker Outputs
• Surround Speaker Outputs
ª Center Speaker Outputs
‚ Component Video Monitor Outputs
⁄ Component Video
1 Inputs
¤ Component Video 2 Inputs
‹ AC Power Cord
› Switched AC Accessory Outlet
fi Unswitched AC Accessory Outlet
fl Optical Digital Audio Output
‡ Coaxial Digital Audio Output
° S-Video Monitor Output
· Coaxial Digital Audio Inputs
a DVD S-Video Input
b DMP Connector
c Video 1 S-Video
Input
d Optical Digital Audio Inputs
e Video 1 S-Video Output
f Video 2 S-Video Input
g 6/8-Channel Direct Inputs
h Video Monitor Output
i DVD Audio/Video Inputs
j Video 1 Audio/Video Inputs
k Video 1 Audio/Video Outputs
U Video 2 Audio/Video Inputs
V AM Antenna Terminals
The
Bridge
TM
NOTE: To assist in making the correct connections
for multichannel input, output and speaker connec-
tions
,
all connection jacks and terminals are color
-
coded in conformance with the CEA standards
as follows:
Front Left: White
Front Right: Red
Center: Green
Surround Left:
Blue
Surround Right: Gray
Surround Back Left: Brown
Surround Back Right: Tan
Subwoofer: Purple
Coaxial Digital Audio: Orange
Composite
Video
:
Y
ellow
Component Video “Y”: Green
Component Video “Pr”: Red
Component Video “Pb”: Blue
¡ FM Antenna Jack: Connect the supplied indoor
(or an optional external) FM antenna to this terminal.
™ CD Audio Inputs: Connect these jacks to the
analog audio outputs of a compact disc player or
CD
changer.
£ Tape Outputs: Connect these jacks to the
RECORD/INPUT jacks of an audio recorder.
¢ Tape Inputs: Connect these jacks to the
PLAY/OUT jacks of an audio recorder.
∞ Subwoofer Output: Connect this jack to the line-
level input of a powered subwoofer. If an external sub-
woofer amplifier is used, connect this jack to the sub-
woofer amplifier input.
§ F
ront Speaker Outputs:
Connect these outputs
to the matching + or – ter
minals on your left and right
speakers. When making speaker connections always
make certain to maintain correct polarity by connecting
the color
-coded (white for front left and red for front
right) (+) terminals on the AVR 140 to the red (+)
terminals on the speakers and the black (–) terminals
on the AVR 140 to the black (–) terminals on the
speakers
. See page 12 for more information on
speaker polarity.
¶ Surround Back Speaker Outputs: These
speaker ter
minals
are normally used to power the sur-
round back speaker in a 6.1-channel system. Connect
these outputs to the matching + and – terminals on
your surround back channel speaker
.
In confor
mance
with the CEA color
-code specification, the brown ter-
NOTE: To make it easier to follow the instructions that refer to this illustration, a larger copy may be downloaded from the Product Support section for this product
at www.harmankardon.com.
