Harman® • P-Series Owner’s Manual_R10 • 2014 - ___ • 11/1538 3-90-436168c
Service Parts
P68 Pellet
Beginning Manufacturing Date: N/A
Ending Manufacturing Date: Active
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor.
Hearth and Home Technologies does not sell directly to consumers. Provide model number
and serial number when requesting service parts from your dealer or distributor.
Stocked
at Depot
ITEM Description COMMENTS PART NUMBER
3 Feeder Assembly Post 008280309 1-10-07906A
3.1
Pellet Feeder Gear Motor, 6RPM 3-20-09302 Y
Gear Motor Fan Blade Pkg of 3 3-20-09302-3 Y
3.2
UL Feeder Cam 3-31-3014 Y
3.3
Feeder Air Crossover Kit 1-00-67900 Y
9MM Silicone Tube 5 Ft 1-00-511427 Y
3.4
Pellet Air Intake Assembly 1-10-06810A
3.5
Gasket Feeder Air Intake Pkg of 6 3-44-72224-6 Y
3.6
UL Feeder Air Intake 1-10-72228
3.7
Gasket Ultra Air Intake Pkg of 10 3-44-677160-10 Y
3.8
Ultra Feeder Weldment 1-10-724132 Y
3.9
UL Feeder Pusher Arm 1-10-677187W Y
3.10
Fines De ector No longer available 2-00-677138-10
3.11
Gasket, UL Feeder Cover 1-00-677122 Y
3.12
Slide Plate Assembly 1-10-677121A Y
3.13
UL Feeder Auger Assembly 3-50-00565 Y
3.14
Bearing Flange w/Hardware 1-00-04035 Y
3.15
UL Feeder Gear Motor Bracket w/Grommet 1-00-247406 Y
3.16
UL Feeder Cam Block 3-00-677154 Y
Gasket, Hopper Throat 3-44-677185 Y
Hopper Switch Feeder Fitting Pkg of 2 1-00-142818 Y
Motor Bracket Grommet Pkg of 12 3-31-2761-12
Pillow Block Pkg of 4 3-31-3614087-4 Y
Silicone Tubing, 1/8" 5 Ft 1-00-5113574 Y
Additional service parts on following page.
3.7
3.6
3.5
3.4
3.3
3.2
3.1
3.16
3.15
3.8
3.9
3.10
3.11
3.12
3.13
3.14

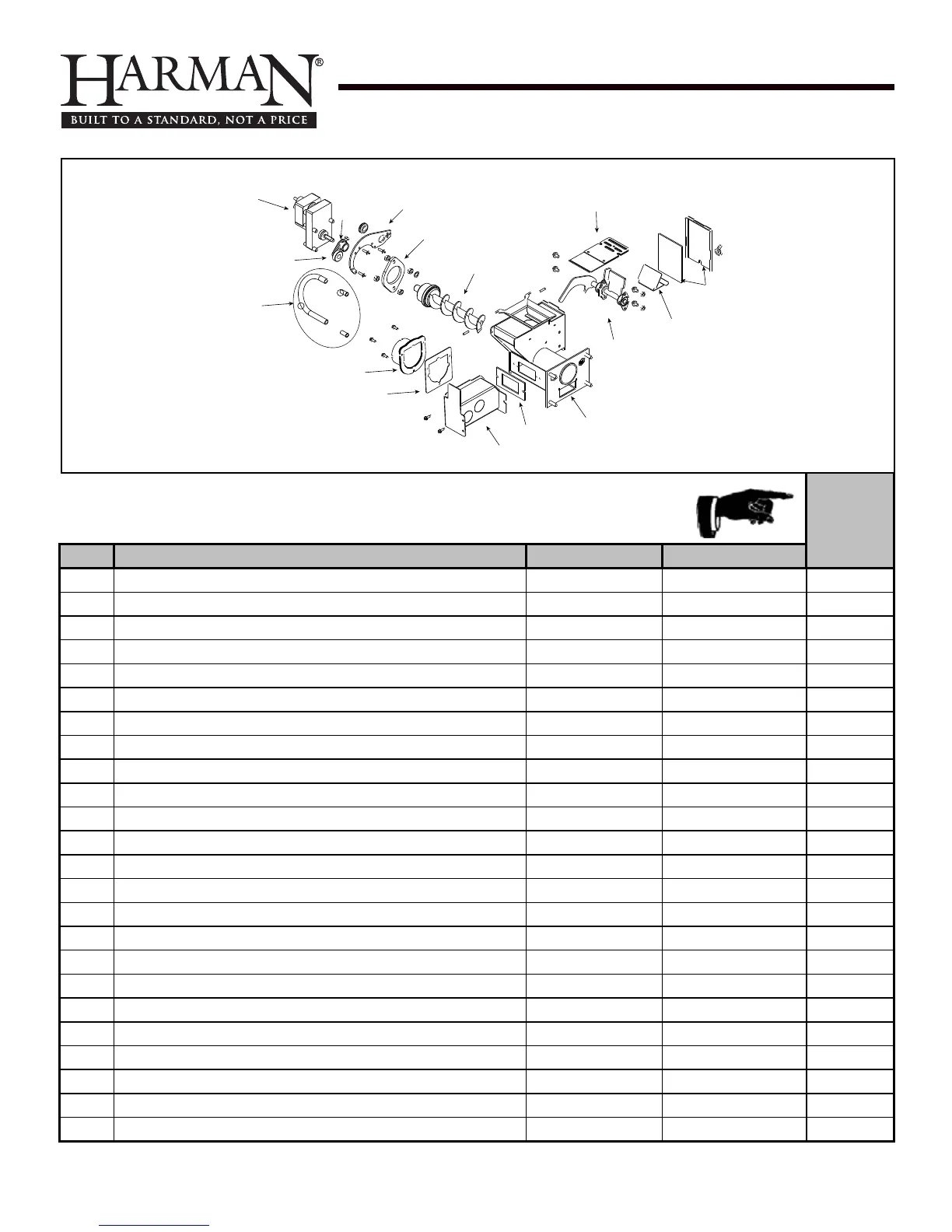

#3 Post Serial Number 008280309 Feeder Assembly
To Next Page
