Harman P61 Installation Manual

Harman® • P-Series Installation Manual_R18 • 2014 - ___ • 06/1817 3-90-436168i
C. Venting & Use of Elbows continued
Note: When the amount of vertical pellet vent pipe in the system exceeds 15 feet, 4” pellet vent pipe should be used.
Note: Equivalent Venting Length decreases as altitude increases.
Note:WhentheHighAltitudeFanBladeisused,themaximumlengthofOutsideAirPipedecreasesto20ft.
Example:
A unit with an EVL of 13, is to be installed at an altitude
of 3,000 feet above sea level.

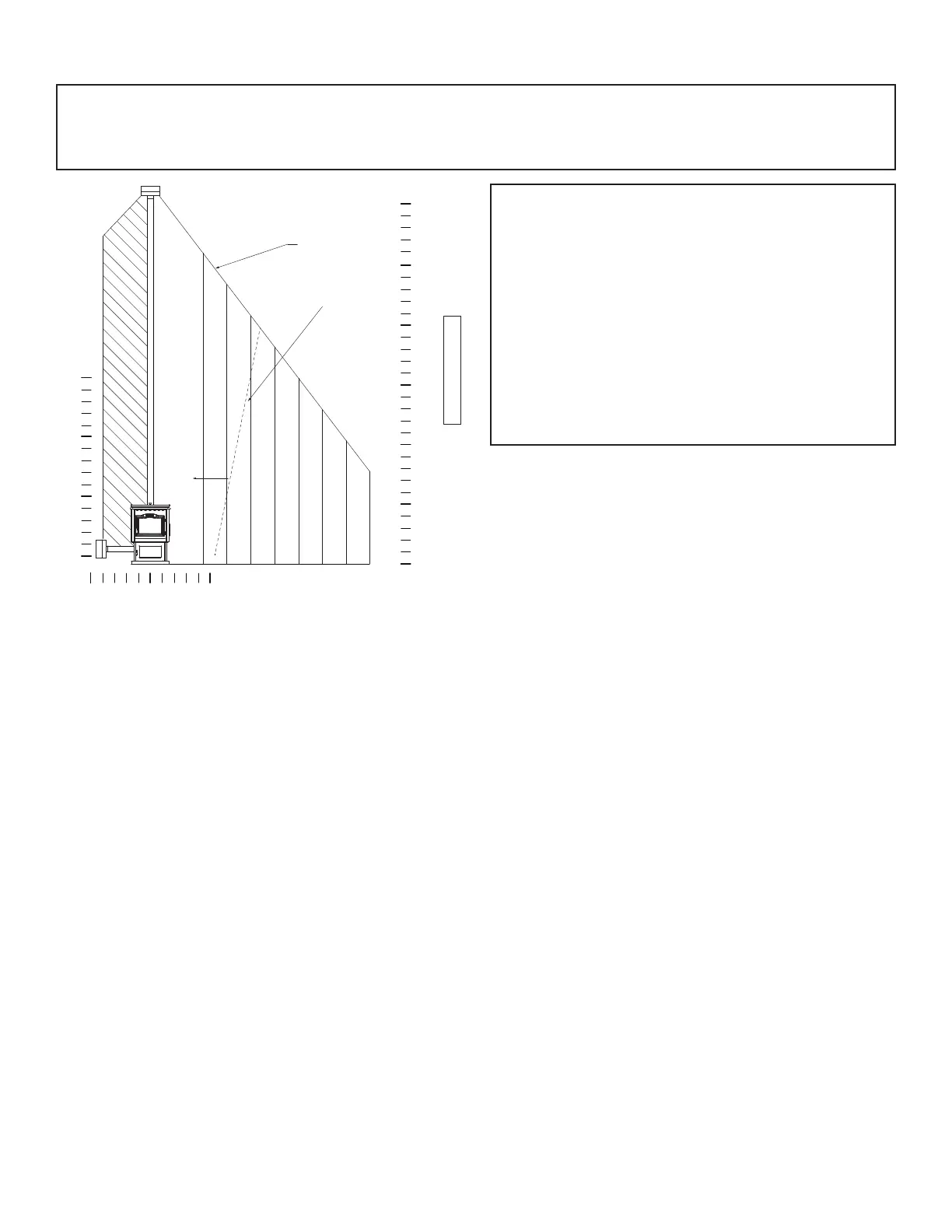

From the chart to the left, at 3,000 feet of altitude, the
maximum permissible equivalent venting length is 26
feet. Therefore this would be an acceptable installation
with no need to change the combustion blower fan.
However, if the same unit (EVL 13)was to be installed
an altitude of 9,000 feet above sea level, the installation
would no longer be acceptable and the equivalent vent
length of the pipe would have to be reduced for proper
unit operation.
No Change of Combustion
Blower Fan Blade Needed
0 Ft5 Ft 5 Ft
10,000
9,000
8,000
7,000
6,000
5,000
4,000
3,000
5 Ft
0 Ft
10 Ft
Combustion Blower Fan
Blade Changeover Line
Altitude
10 Ft
15 Ft
20 Ft
25 Ft
30 Ft
5 Ft
0 Ft
15 Ft
Equivalent Vent Length (EVL)
Maximum Horizontal Run
• LongrunsofexorPLventpipeinstalleddirectlyverticalfromtheuestubmayrequiremorefrequentcleaningdueto
yashfallingoffinsideandcollectingdirectlyabovethecombustionbloweroutlet.
• 4" stainless steel ex vent piping is only allowed for use in masonry replaces and chimneys or factory built wood-
burningreplaceswithClassAmetalchimneys.
• All pellet vent pipe must be secured together either by means provided by pipe manufacturer or by 3 screws at each joint.
• Useonlythespeciedventingcomponents.Useofanyothercomponentswillvoidtheproductwarrantyandmaypose
a hazard.
• Do Not Install a Flue Damper In The Exhaust Venting System of This Appliance.
• DONOTCONNECTTHISUNITTOACHIMNEYFLUESERVINGANOTHERAPPLIANCE.
• NOTE: Simpson DuraVent PelletVent Pro Harman®Adapter Part #3PVP-ADHB and PelletVent Pro Harman®Adapter
Increaser Part #3PVPX4ADHB are highly recommended to be installed on the starter collar to insure a proper pipe
connection to the unit.
• INSTALL VENT AT CLEARANCES SPECIFIED BY THE VENT MANUFACTURER
• Use silicone to create an effective vapor barrier at the location where the chimney or outside air ducting passes through
to the exterior of the structure
