USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Page 9 of 20 Max-Flo XL Pump IS2300 Rev-A1
3.9. Wiring
WARNING – All electrical wiring MUST conform to local codes, regulations and the National Electric Code
(NEC).
Pump MUST be permanently connected to circuit. If other lights or appliances are also on the same circuit, be sure
to add their amp loads before calculating wire and circuit breaker sizes. Use the load circuit breaker as the Master
On-Off switch.
WARNING – If you do not use conduit when wiring motor, be sure to seal wire opening on end of motor to
prevent dirt, bugs, etc., from entering.
Risk of dangerous or fatal electrical shock. Be sure that power to the motor circuit is off before working on
wiring, wiring connections, or motor. Re-install the motor end cover and all other wiring covers before
turning on the power.
1. Turn off power.
2. Remove the motor end cover.
To Wire a Single Speed, Single Voltage Motor
There are two terminals labeled L1 and L2. Attach the power leads to these terminals. Either wire may attach to
either terminal.
To Wire a Dual-Voltage Motor
Dual voltage motors have a plug to change from 230 volts (factory setting) to 115 volts.
1. If you have 230 volts motor supply voltage, confirm that the plug is set for 230 volts. The arrow on the plug
will point to the 230 volt position. Note that plug only connects with one prong in this position. See Fig 3.9.1
2. If you have 115 volt supply, pull the plug straight up & place it on the two brass prongs as shown. See Fig 3.9.2

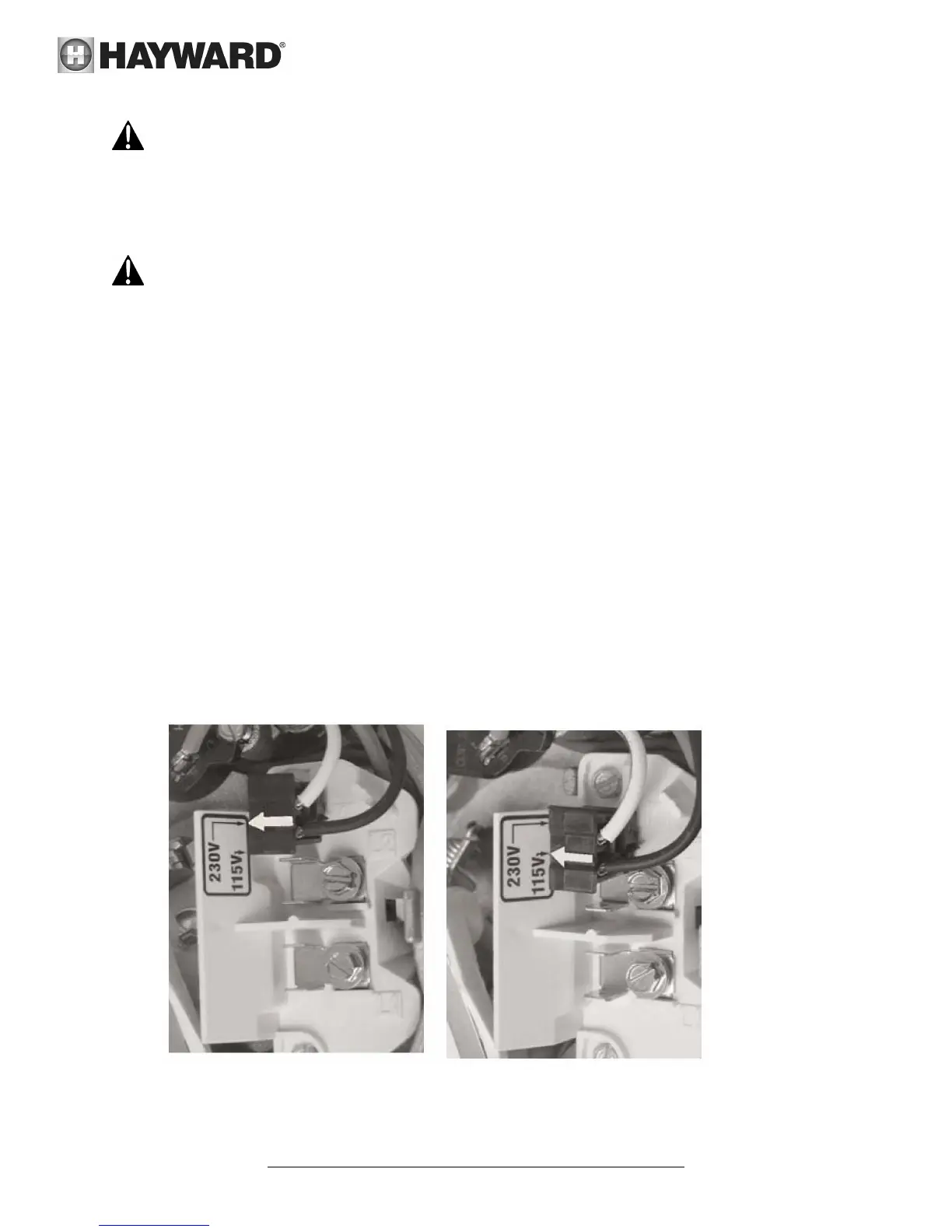

Voltage change plug set for 230 volts Voltage change plug set for 115 volts
Fig 3.9.1 Fig 3.9.2
Note: Large white arrow is for reference only.
