User Manual of 9600/8600/7700/7600 Series NVR
201
14.2 Configuring General Settings
Purpose:
You can configure the BNC output standard, VGA output resolution, mouse pointer speed through the Menu >
Configuration > General interface.
Steps:
1. Enter the General Settings interface.
Menu >Configuration> General
2. Select the General tab.

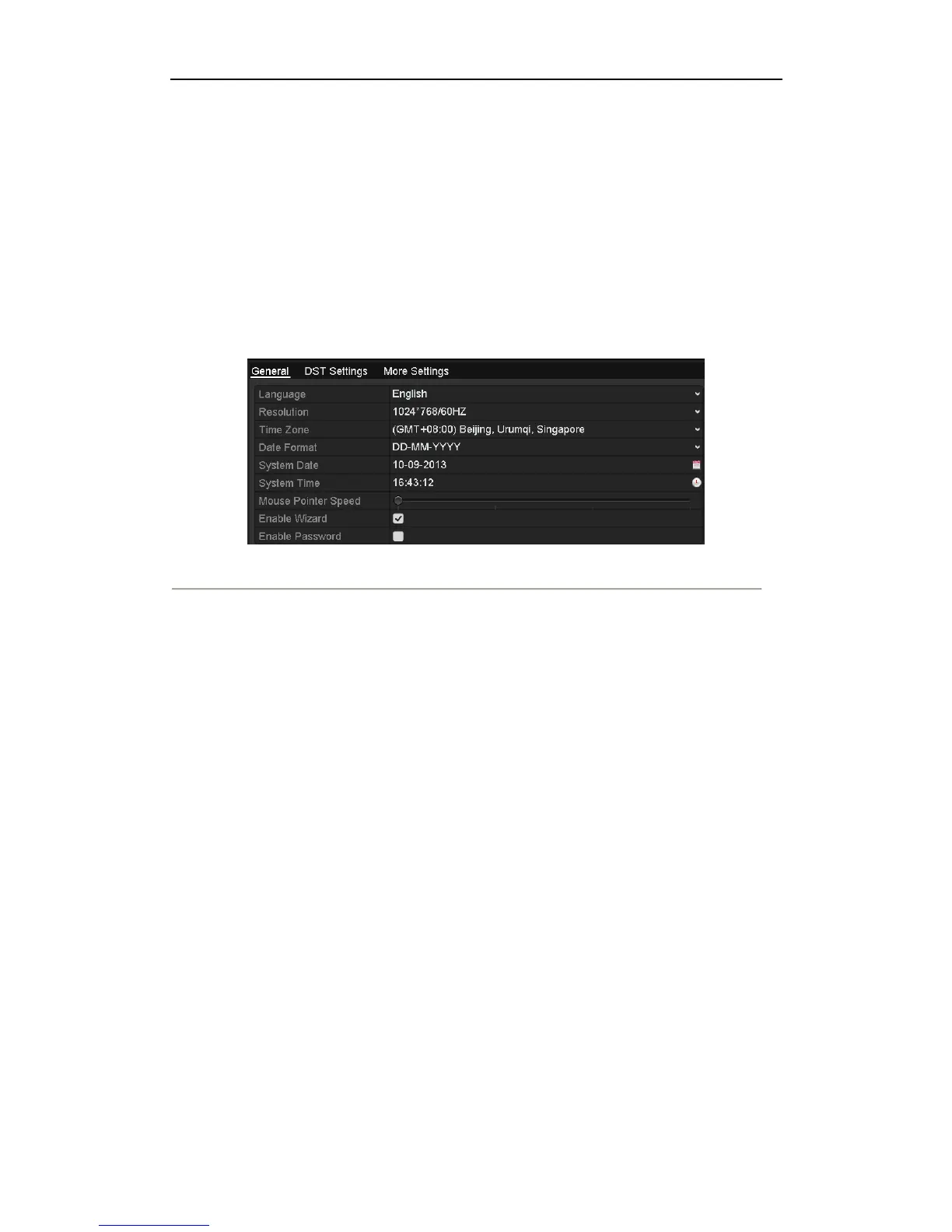

Figure 14. 2 General Settings Interface
3. Configure the following settings:
• Language: The default language used is English.
• CVBS Output Standard: Select the CVBS output standard to NTSC or PAL, which must be the
same with the video input standard.
• VGA Resolution: Select the VGA output resolution, which must be the same with the resolution
of the monitor screen.
• HDMI Resolution: Select the HDMI resolution, which must be the same with the resolution of the
monitor screen.
• Time Zone: Select the time zone.
• Date Format: Select the date format.
• System Date: Select the system date.
• System Time: Select the system time.
• Mouse Pointer Speed: Set the speed of mouse pointer; 4 levels are configurable.
• Enable Wizard: Enable/disable the Wizard when the device starts up.
• Enable Password: Enable/disable the use of the login password.
4. Click the Apply button to save the settings.
