HIKVISION DS-2CD5165G0-IZS User Manual

Network Camera User Manual

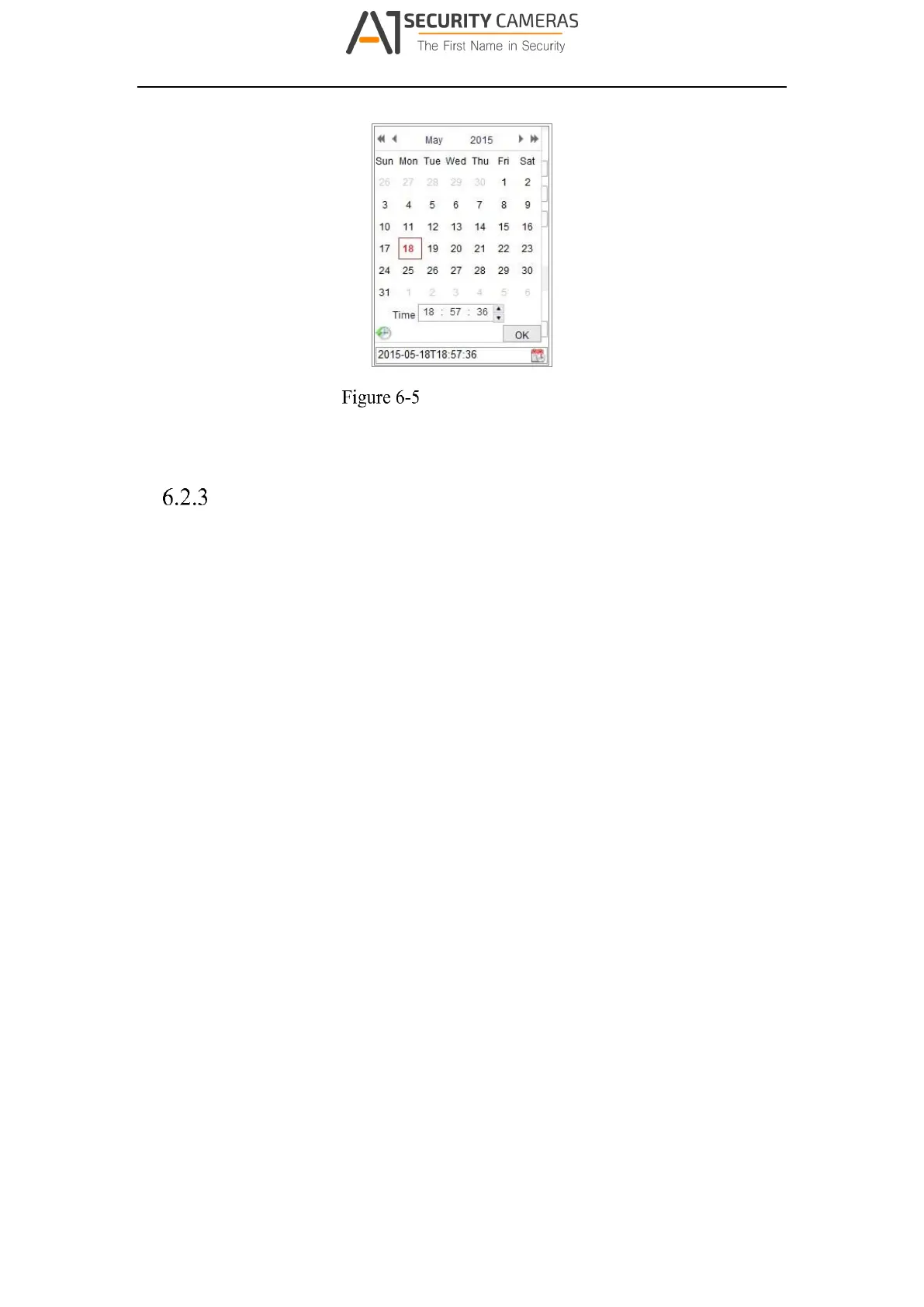

Time Sync Manually
 Click Save to save the settings.
Configuring RS232 Settings
The RS232 port can be used in two ways:
 Parameters Configuration: Connect a computer to the camera through the serial
port. Device parameters can be configured by using software such as
HyperTerminal. The serial port parameters must be the same as the serial port
parameters of the camera.
 Transparent Channel: Connect a serial device directly to the camera. The serial
device will be controlled remotely by the computer through the network.
Steps:
1. Enter RS232 Port Setting interface: Configuration > System > System Settings >
RS232.
2. Configure the Baud Rate, Data Bit, Stop Bit, Parity, Flow Control, and Usage.
46
