User Manual of Digital Video Recorder
102
8.2 Detecting Video Loss
Purpose:
Detect video loss of a channel and take alarm response action(s).
Steps:
1. Enter Video Loss interface of Camera Management and select a channel you want to detect.
Menu> Camera> Video Loss

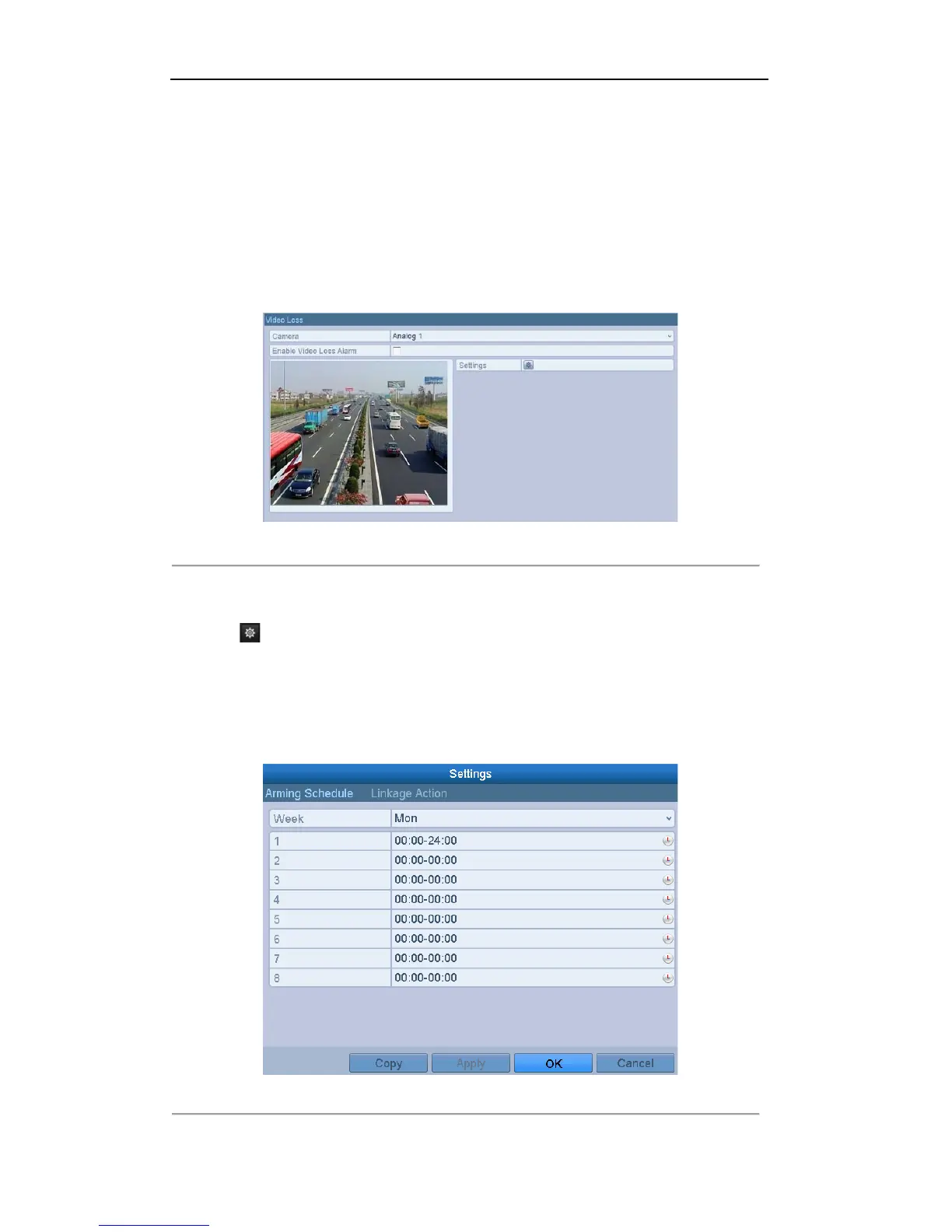

Figure 8. 6 Video Loss Setup Interface
2. Set up handling method of video loss.
Check the checkbox of “Enable Video Loss Alarm”.
Click button to set up handling method of video loss.
3. Set arming schedule of the channel.
Select Arming Schedule tab to set the channel’s arming schedule.
Choose one day of a week and up to eight time periods can be set within each day. Or you can click the
Copy button to copy the time period settings to other day(s).
Note: Time periods shall not be repeated or overlapped.
Figure 8. 7 Set Arming Schedule of Video Loss
