User Manual of Digital Video Recorder

Note: If the corresponding camera supports intelligent function, the Reboot Intelligence option will be included

when right-clicking mouse on this camera.

Note: If you enter Aux monitor mode and the Aux monitor is not connected, the mouse operation is disabled;

you need to switch back to the Main output with the F1 button on front panel or VOIP/MON button on IR

remote control and then press the Enter button.

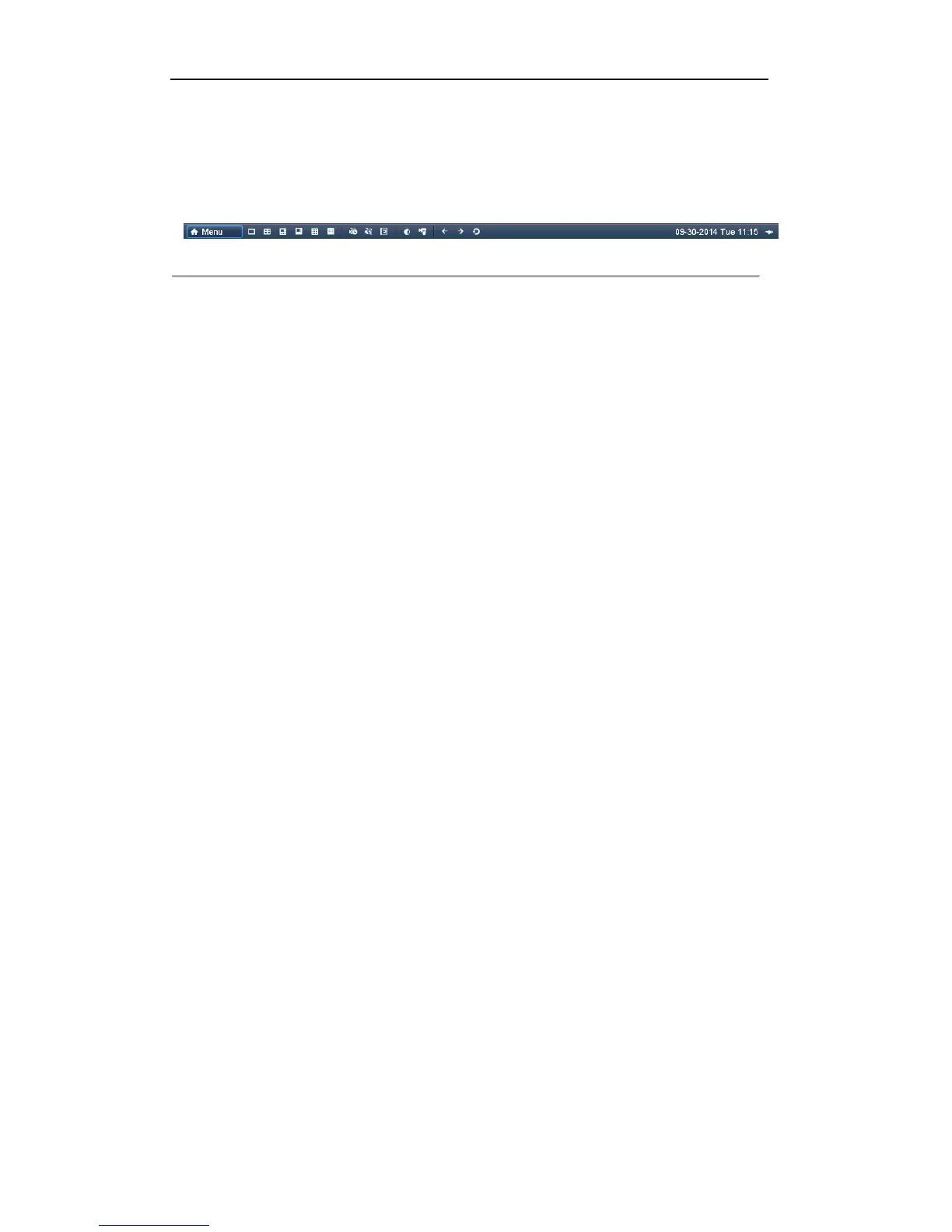

Figure 3. 1 Right-click Menu

3.2.2 Using an Auxiliary Monitor

Certain features of the Live View are also available while in an Aux monitor. These features include:

• Single Screen: Switch to a full screen display of the selected camera. Camera can be selected from a

dropdown list.

• Multi-screen: Switch between different display layout options. Layout options can be selected from a

dropdown list.

• Previous Screen: When displaying less than the maximum number of cameras in Live View, clicking this

feature will switch to the previous set of displays.

• Next Screen: When displaying less than the maximum number of cameras in Live View, clicking this

feature will switch to the next set of displays.

• Quick Set: Set the video output mode to Standard, Bright, Gentle or Vivid.

• Menu Output Mode: Select the menu output mode to HDMI/VGA, Main CVBS or Auto.

• PTZ Control: The shortcut to enter the PTZ control interface.

• Main Monitor: Enter Main operation mode.

Note: In the live view mode of the main output monitor, the menu operation is not available while Aux output

mode is enabled.

3.2.3 Main/Aux Output Switching

When the HDMI/VGA output is configured as the main output, you can perform the following operation to

switch to CVBS output as the main output.

Steps:

1. Use the mouse wheel to double-click on the HDMI/VGA output screen, and the following message box

pops up:

2. Use the mouse wheel to double-click on the screen again to switch to the Aux output, or click Cancel to

cancel the operation.

3. Select the Menu Output Mode to Main CVBS from the right-click menu on the CVBS output monitor.

4. On the pop-up message box, click Yes to restart the device to enable the CVBS output as the main output.

Note: You can select the Menu Output Mode under Menu>Configuration>More Settings to Auto or

HDMI/VGA and then restart the device to switch the main output back to HDMI/VGA output.
