User Manual of Digital Video Recorder
144
11.2 Configuring Privacy Mask
Purpose:
You are allowed to configure the four-sided privacy mask zones that cannot be viewed or recorded by the operator.
Steps:
1. Enter the Privacy Mask Settings interface.
Menu > Camera > Privacy Mask
2. Select the camera to set privacy mask.
3. Check the checkbox of Enable Privacy Mask to enable this feature.

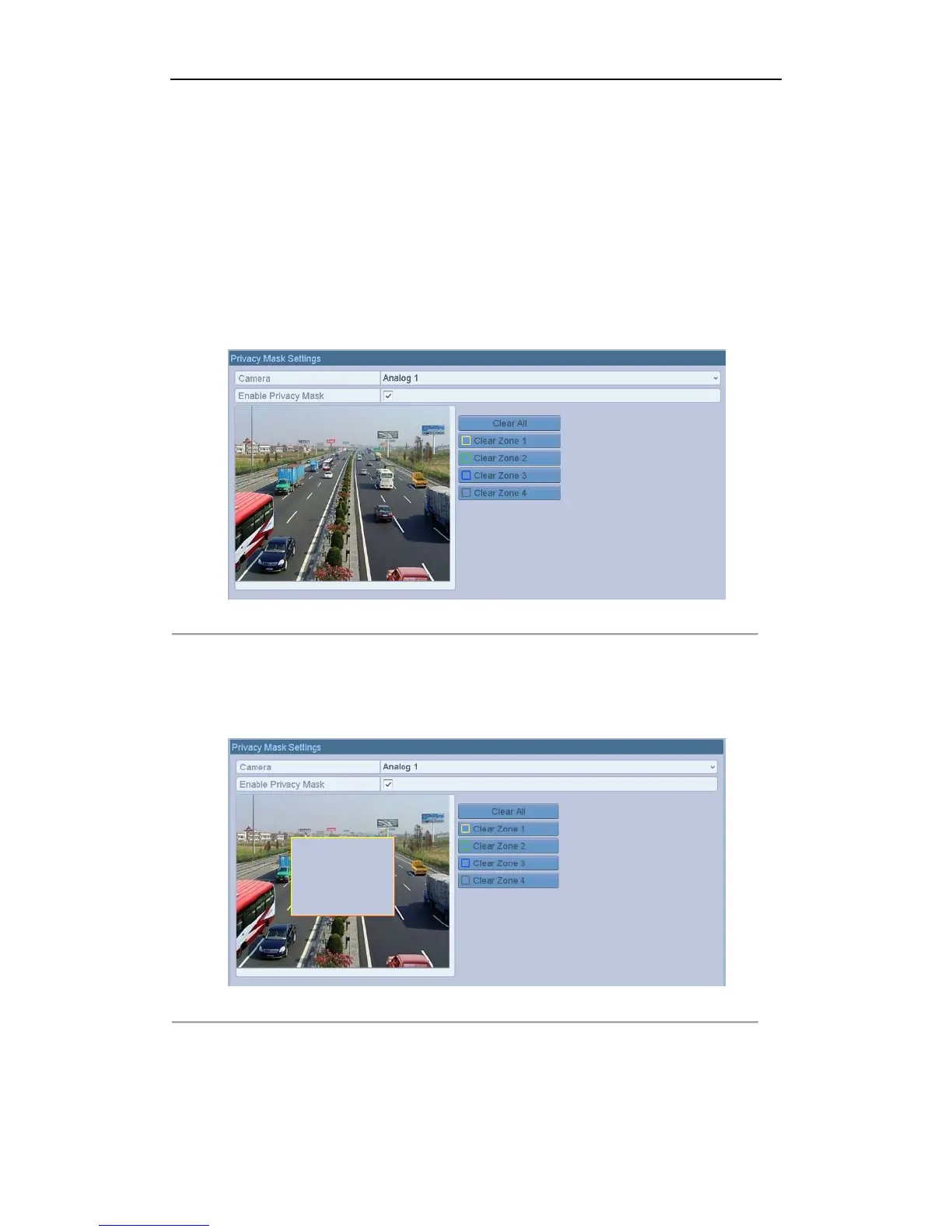

Figure 11. 3 Privacy Mask Settings Interface
4. Use the mouse to draw a zone on the window. The zones will be marked with different frame colors.
Note: Up to 4 privacy mask zones can be configured, and the size of each area can be adjusted.
5. The configured privacy mask zones on the window can be cleared by clicking the corresponding Clear
Zone1-4 icons on the right side of the window, or click Clear All to clear all zones.
Figure 11. 4 Set Privacy Mask Area
6. You can click the Copy button to copy the privacy mask settings of the current camera to other cameras.
Please refer to step 7 of Chapter 11.1Configuring OSD Settings.
7. Click the Apply button to save the settings.
