HIKVISION DS-2DE3304W-DE User Manual

User Manual of Network Mini PTZ Camera
115
Appendix
Appendix 1 SADP Software Introduction
 Description of SADP
SADP (Search Active Devices Protocol) is a kind of user-friendly and installation-free
online device search tool. It searches the active online devices within your subnet
and displays the information of the devices. You can also modify the basic network
information of the devices using this software.
 Search active devices online
 Search online devices automatically
After launch the SADP software, it automatically searches the online devices
every 15 seconds from the subnet where your computer locates. It displays
the total number and information of the searched devices in the Online
Devices interface. Device information including the device type, IP address
and port number, etc. will be displayed.

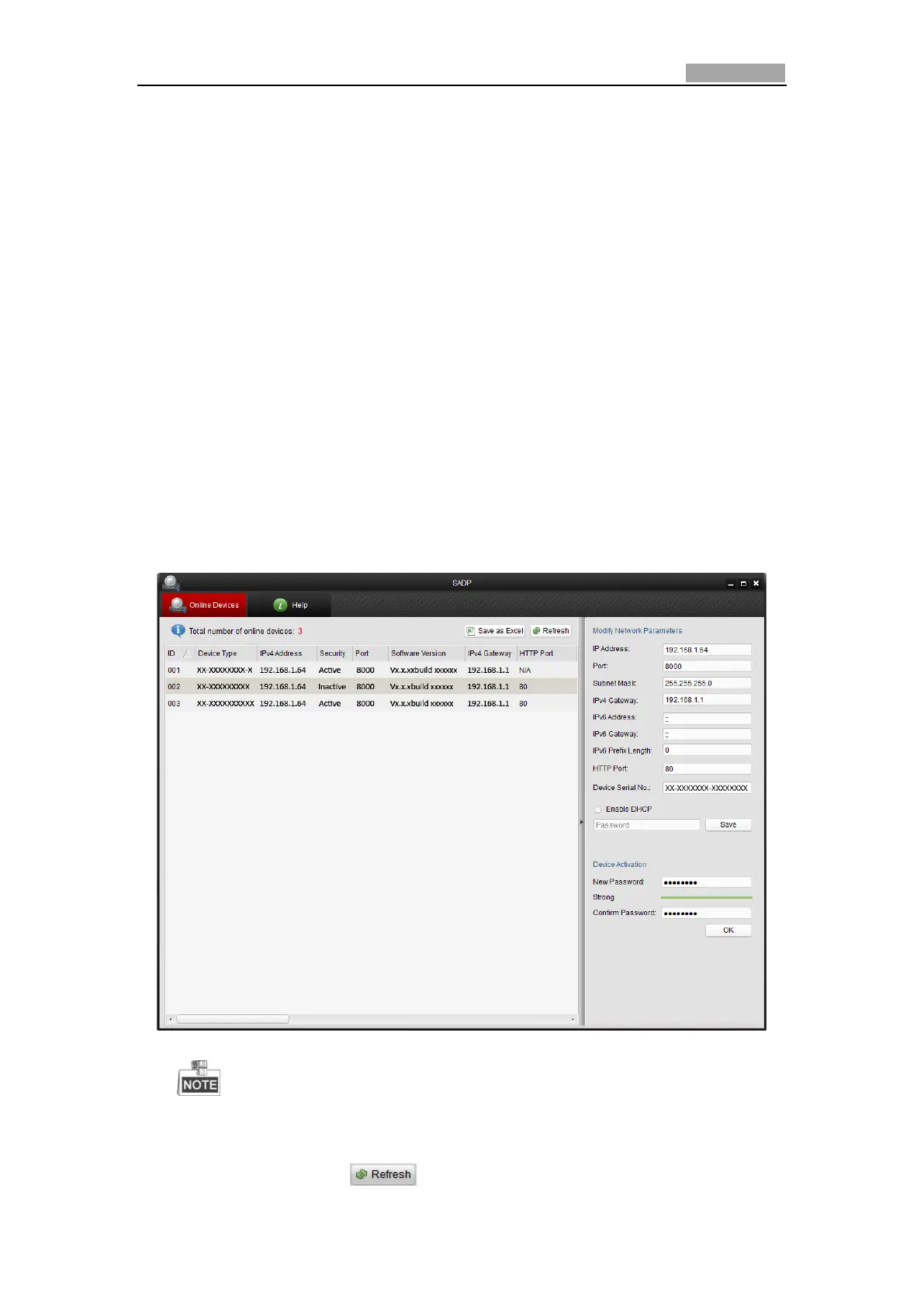

Figure A.1.1 Searching Online Devices
Device can be searched and displayed in the list in 15 seconds after it
went online; it will be removed from the list in 45 seconds after it went offline.
 Search online devices manually
You can also click to refresh the online device list manually. The

HIKVISION DS-2DE3304W-DE Specifications

General

IK code	IK10
Form factor	Dome
Mounting type	Ceiling/wall
Product color	White
International Protection (IP) code	IP66
Type	IP security camera
Certification	FCC, CE, UL, IEC/EN 61000, IEC/EN 55022, IEC/EN 55024, IEC /EN60950-1
Languages support	BUL, CHI (TR), CZE, DAN, DEU, DUT, ENG, ESP, EST, FIN, FRE, GRE, HRV, HUN, ITA, JPN, KOR, LAT, LIT, NOR, POL, POR, RUM, RUS, SER, SLK, SLV, SWE, THA, TUR, VIE
Alarm input/output	Yes
Number of languages	32
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Sustainability certificates	RoHS
Operating temperature (T-T)	-30 - 65 °C
Operating relative humidity (H-H)	0 - 90 %
AC input voltage	36 - 57 V
DC output current	1 A
DC output voltage	12
Power source type	DC, PoE
Power consumption (max)	8 W
Number of cameras	1
Wi-Fi	No
Number of users	32 user(s)
Cabling technology	10/100Base-T(X)
Supported network protocols	IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Number of simultaneous live view channels	20 channels
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	128 GB
Total megapixels	3 MP
Maximum resolution	2048 x 1536 pixels
Video compression formats	H.264, H.264+, H.265, H.265+, M-JPEG
Noise reduction technology	3D noise reduction
Pan range	0 - 350 °
Pan speed	60 °/sec
White balance	ATW, Auto, Daylight, Indoor, Manual, Outdoor, Sodium lamp
Tilt angle range	0 - 90 °
Camera shutter speed	1/1 - 1/10000 s
Minimum illumination	0.01 lx
Signal-to-Noise Ratio (SNR)	52 dB
Digital zoom	16 x
Optical zoom	4 x
Focal length range	2.8 - 12 mm
Maximum aperture number	2.7
Minimum aperture number	1.6
Sensor type	CMOS
Optical sensor size	1/2.8 \

Weight and Dimensions

Height	107.2 mm
Weight	950 g
Diameter	140.7 mm
