User Manual of Network Mini PTZ Camera
© Hikvision
61
3. Click to save the settings.
If you want to upload the captured pictures to FTP server, you also have to
enable the continuous snapshot or event-triggered snapshot in Snapshot
interface. For detailed information, please refer to the Section 8.4
Configuring Snapshot Settings.
7.3.8 Configuring UPnP™ Settings
Purpose:
Universal Plug and Play (UPnP™) is a networking architecture that provides
compatibility among networking equipment, software and other hardware devices.
The UPnP protocol allows devices to connect seamlessly and to simplify the
implementation of networks in the house and corporate environments.
With the function enabled, you don’t need to configure the port mapping for each
port, and the camera is connected to the Wide Area Network via the router.
Steps:
1. Enter the UPnP™ settings interface.
Configuration >Advanced Configuration > Network > UPnP™
2. Check the checkbox to enable the UPnP™ function.
You can edit the Friendly Name of the PTZ camera. This name can be detected by
corresponding device, such as a router.

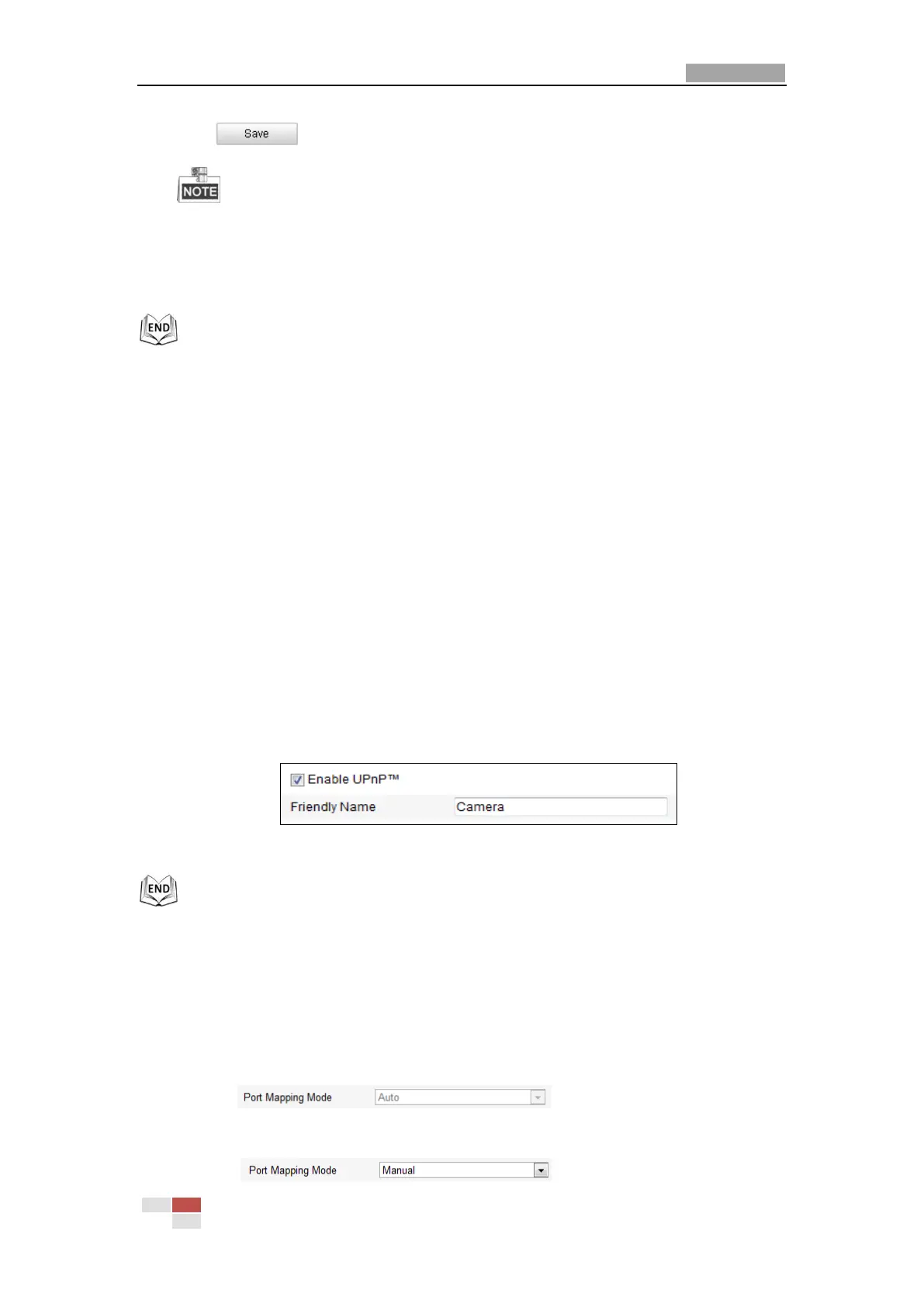

Figure 7-20 Configure UPnP Settings
7.3.9 Configuring NAT (Network Address Translation) Settings
Steps:
1. Set the port mapping mode:
To port mapping with the default port numbers:
Choose
To port mapping with the customized port numbers:
Choose

HIKVISION DS-2DE3304W-DE Specifications

General

IK code	IK10
Form factor	Dome
Mounting type	Ceiling/wall
Product color	White
International Protection (IP) code	IP66
Type	IP security camera
Certification	FCC, CE, UL, IEC/EN 61000, IEC/EN 55022, IEC/EN 55024, IEC /EN60950-1
Languages support	BUL, CHI (TR), CZE, DAN, DEU, DUT, ENG, ESP, EST, FIN, FRE, GRE, HRV, HUN, ITA, JPN, KOR, LAT, LIT, NOR, POL, POR, RUM, RUS, SER, SLK, SLV, SWE, THA, TUR, VIE
Alarm input/output	Yes
Number of languages	32
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Sustainability certificates	RoHS
Operating temperature (T-T)	-30 - 65 °C
Operating relative humidity (H-H)	0 - 90 %
AC input voltage	36 - 57 V
DC output current	1 A
DC output voltage	12
Power source type	DC, PoE
Power consumption (max)	8 W
Number of cameras	1
Wi-Fi	No
Number of users	32 user(s)
Cabling technology	10/100Base-T(X)
Supported network protocols	IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Number of simultaneous live view channels	20 channels
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	128 GB
Total megapixels	3 MP
Maximum resolution	2048 x 1536 pixels
Video compression formats	H.264, H.264+, H.265, H.265+, M-JPEG
Noise reduction technology	3D noise reduction
Pan range	0 - 350 °
Pan speed	60 °/sec
White balance	ATW, Auto, Daylight, Indoor, Manual, Outdoor, Sodium lamp
Tilt angle range	0 - 90 °
Camera shutter speed	1/1 - 1/10000 s
Minimum illumination	0.01 lx
Signal-to-Noise Ratio (SNR)	52 dB
Digital zoom	16 x
Optical zoom	4 x
Focal length range	2.8 - 12 mm
Maximum aperture number	2.7
Minimum aperture number	1.6
Sensor type	CMOS
Optical sensor size	1/2.8 \

Weight and Dimensions

Height	107.2 mm
Weight	950 g
Diameter	140.7 mm
