HIKVISION DS-2DF8223I-AEL User Manual

Network Speed Dome Installation Manual
11
Pendant Adapter
Lock Screw

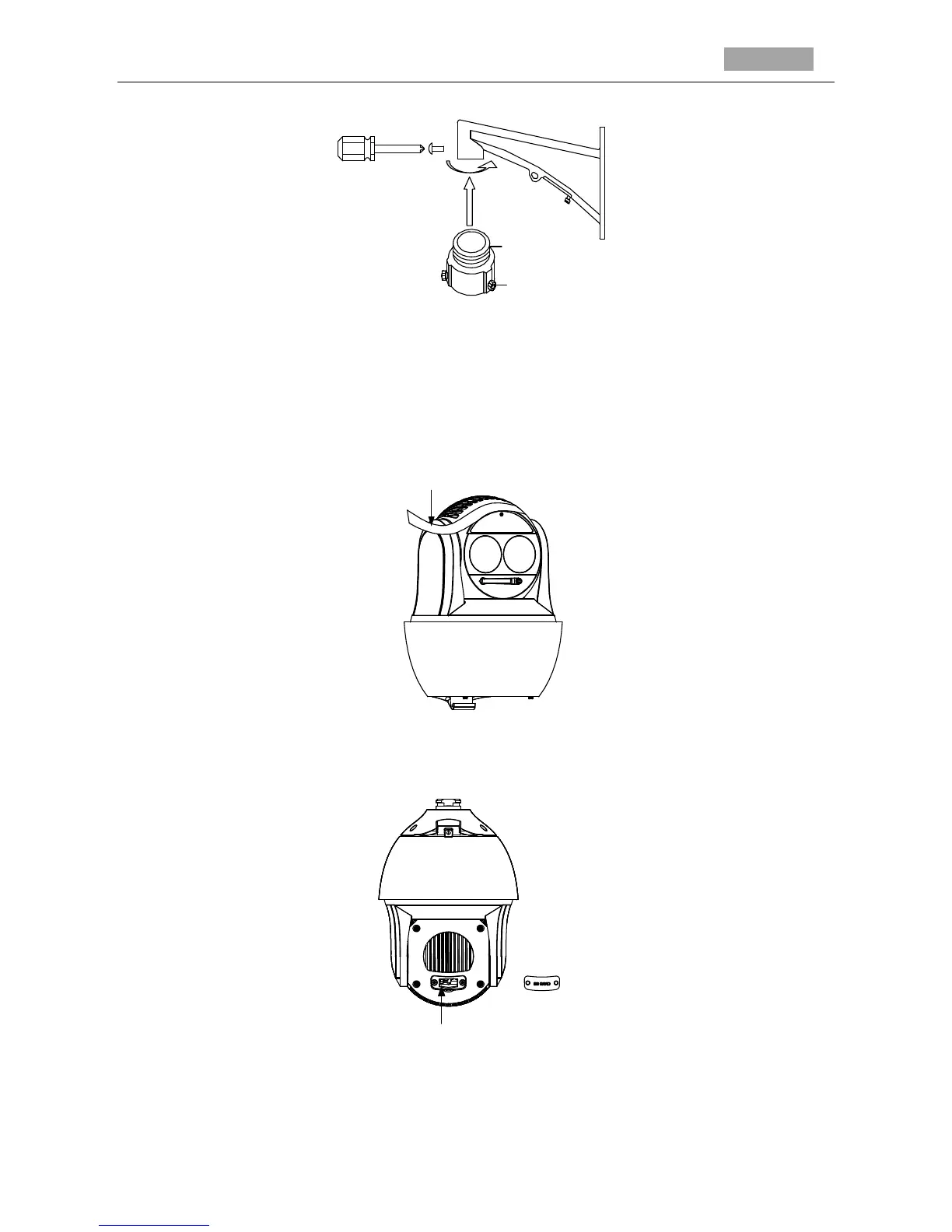

Figure 1-23 Pendent Adapter
1.1.4 Installing the Type IV Speed Dome
Steps:
1. Remove the protective sticker as shown in Figure 1-24.
Protective Sticker
Figure 1-24 Remove Protective Sticker
2. Remove the cover on the back of the speed dome. Insert the SD card to the SD card slot and
install the cover back.
SD Card Slot
Slot Cover
Figure 1-25 SD Card Slot
3. Secure the bracket with 4 hex nuts and washers.

HIKVISION DS-2DF8223I-AEL Specifications

General

Type	IP security camera
PTZ control	Yes
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Maximum operating distance	1500 m
Form factor	Dome
Product color	Black, White
International Protection (IP) code	IP66
Sensor type	CMOS
Optical sensor size	1/1.8 \
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Supported video modes	240p, 480p, 720p, 960p, 1080p
Video formats supported	H.264, M-JPEG, MPEG4
Analog signal format system	NTSC, PAL
Pan range	0 - 360 °
Pan speed	160 °/sec
White balance	ATW, Auto, Daylight, Indoor, Manual, Outdoor, Sodium lamp
Tilt angle range	-20 - 90 °
Minimum illumination	0.002 lx
Field of view (FOV) angle	59.8 °
Optical zoom	16 x
Focal length range	- mm
Maximum aperture number	3.4
Signal-to-Noise Ratio (SNR)	55 dB
Headphone outputs	1
Built-in HDD	-
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	128 GB
DC output voltage	24
Power source type	PoE
Power consumption (typical)	60 W
Operating temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	0 - 90 %
Ethernet interface type	Fast Ethernet

Weight and Dimensions

Length	365.2 mm
Weight	8000 g
Diameter	266.6 mm
