Chapter 2 Mounting Applications
Before you start:
For cement wall, you need to use the expansion screw to fix the bracket. The mounting hole of
the expansion pipe on the wall should align with the mounting hole on the bracket.
For wooden wall, you can just use the self-tapping screw to fix the bracket.
The wall must be thick enough to install the expansion screws.
Please make sure that the wall is strong enough to withstand more than 8 times the weight of
the dome and the bracket.
2.1 Wall Mounting Applications
2.1.1 Components

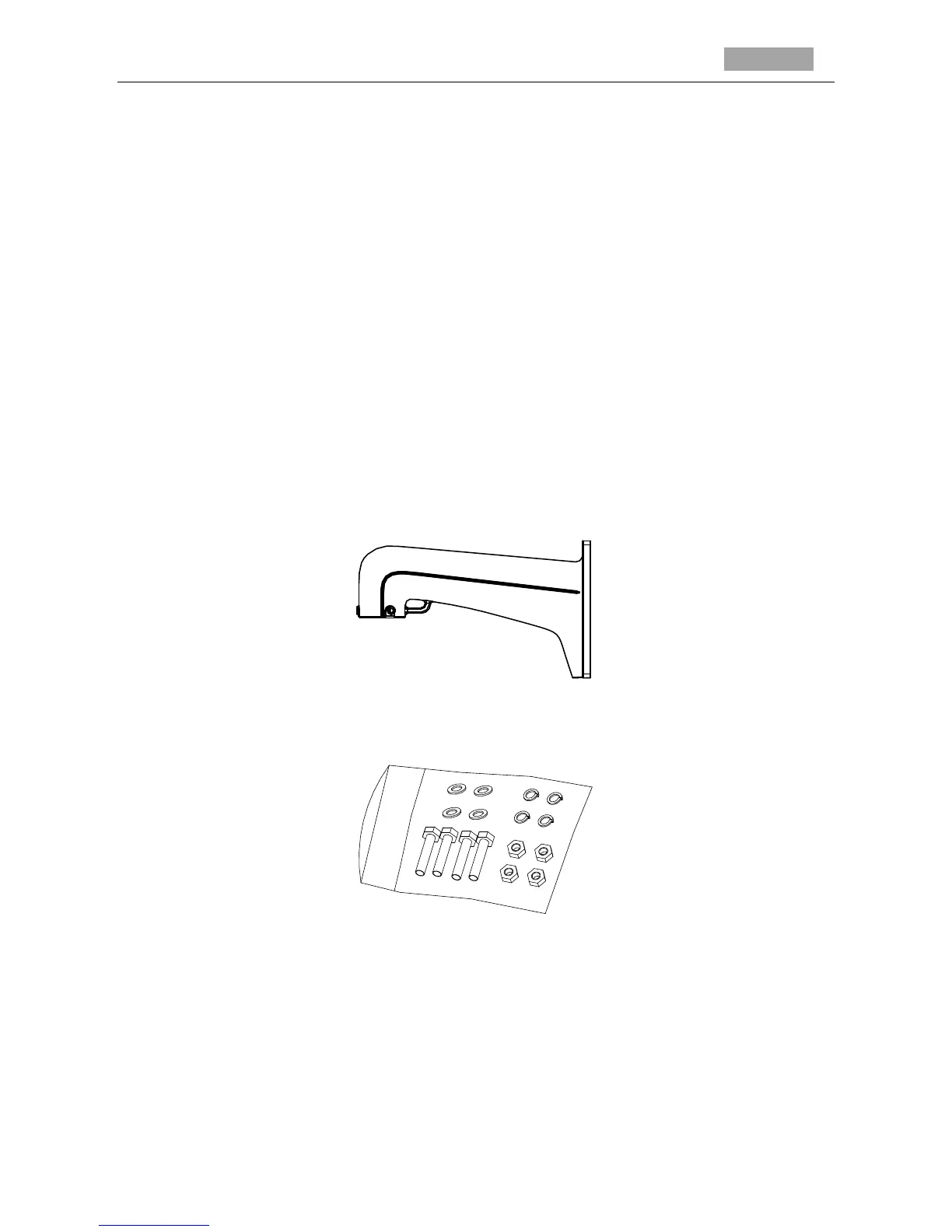

Bracket
Figure 2-1 Bracket
Mounting Accessories
Figure 2-2 Nuts and Flat Washers
2.1.2 Wall Mounting
Steps:
1. Drill 4 screw holes in the wall according to the holes of the bracket, and then insert M6
expansion screws (not supplied) into the mounting holes.
2. Attach the gasket (not supplied) then bracket to the wall by aligning the 4 screw holes of the
