Digital Video Recorder User Manual
222
Step 1 Enter the Array Settings interface. The disk 3 is lost.
Menu > HDD > RAID > Array

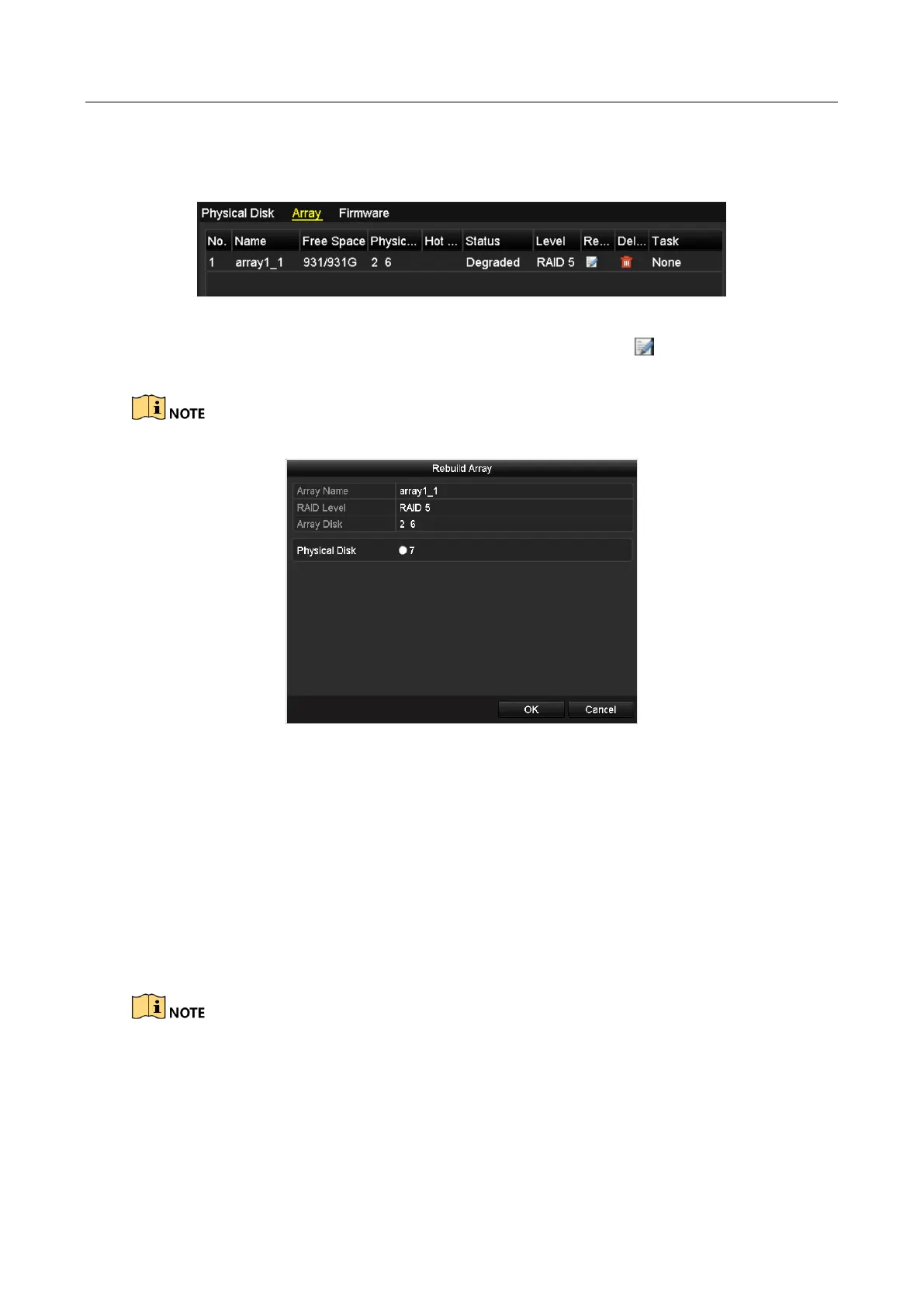

Figure 13-13 Array Settings Interface
Step 2 Click Array tab to return to the Array Settings interface and click to configure the array
rebuild.
At least one available physical disk should exist for rebuilding the array.
Figure 13-14 Rebuild Array Interface
Step 3 Select the available physical disk and click OK button to confirm to rebuild the array.
Step 4 The “Do not unplug the physical disk when it is under rebuilding” message box pops up.
Click OK button to start rebuilding.
Step 5 You can enter the Array Settings interface to view the rebuilding status.
Step 6 After rebuilding successfully, the array and virtual disk will restore to Functional.
13.3 Deleting Array
Deleting array will cause to delete all the data saved in the disk.
Step 1 Enter the Array Settings interface.
Menu>HDD>RAID>Array
To Next Page
