User Manual of Network Video Recorder
37
2.5 Adding and Connecting the IP Cameras
2.5.1 Activating the IP Camera
Purpose:
Before adding the camera, make sure the IP camera to be added is in active status.
Steps:
1. Enter the IP Camera management interface.
Menu > Camera > Camera
For the IP camera detected online in the same network segment, the Security status shows whether it is
active or inactive.

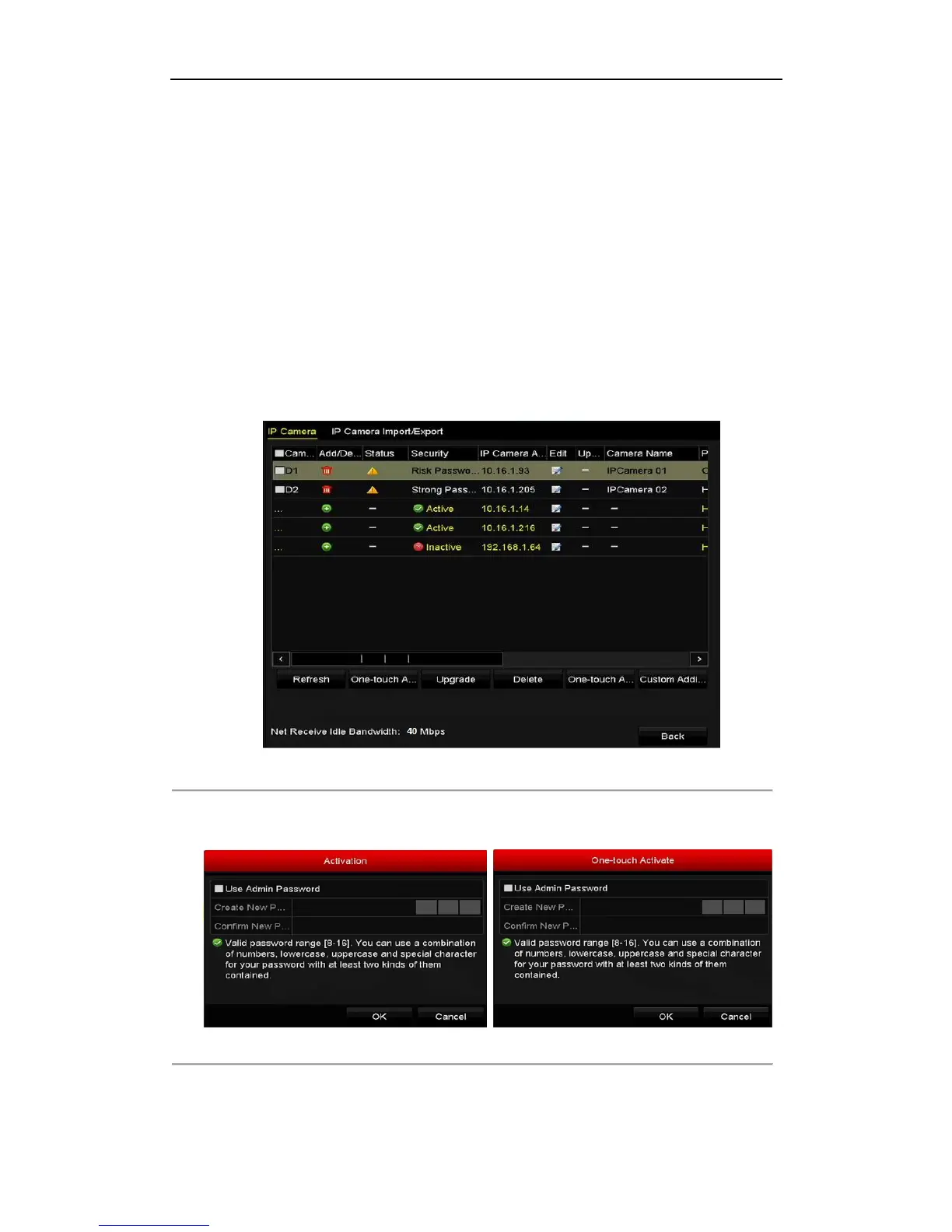

Figure 2. 16 IP Camera Management Interface
2. Click the inactive icon of the camera to enter the following interface to activate it. You can also select
multiple cameras from the list and click the One-touch Activate to activate the cameras in batch.
Figure 2. 17 Activate the Camera
3. Set the password of the camera to activate it.
Use Admin Password: when you check the checkbox, the camera (s) will be configured with the same
