HIKVISION DS-7108HQHI-K1 User Manual

Digital Video Recorder User Manual
197
Step 6 You can click Copy to copy the image settings of the current camera to other cameras.
Step 7 Click Apply to save the settings.
14.3.2 Configuring Camera Parameters Settings
Step 1 Go to Menu > Camera > Image > Camera Parameters Settings.

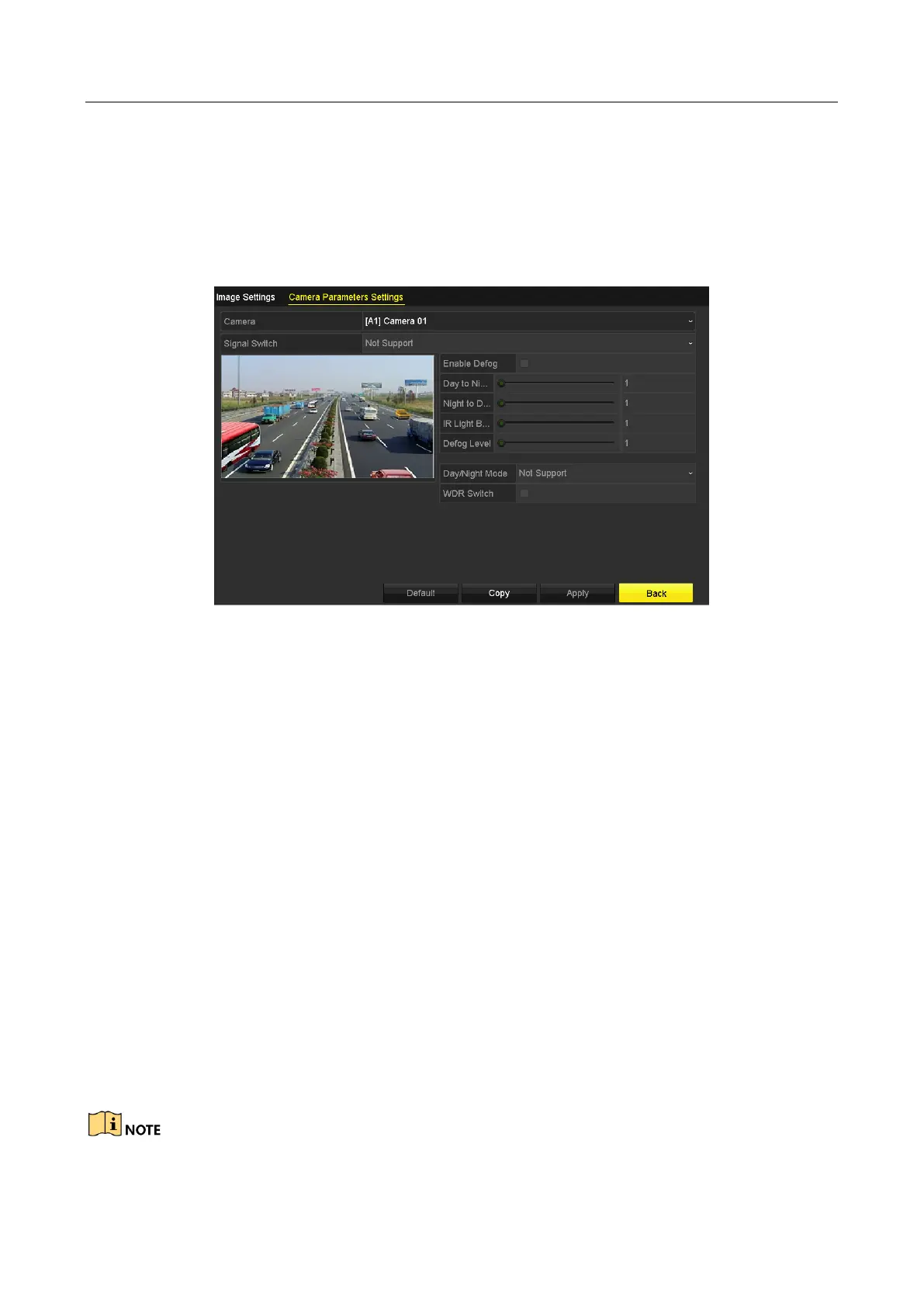

Figure 14-7 Camera Parameters Settings
Step 2 Select the Camera from the drop-down list.
Step 3 Configure the parameters.
 Switch the 4 MP or 5 MP signal from the Signal Switch drop-down list. 4 MP 25/30 fps
and 5 MP 20 fps are selectable. The 4 MP 25 fps and 4 MP 30 fps signals are
self-adaptive for the camera.
 Check Enable Defog to enable the defog function of the selected camera. And set the
Defog Level from 1 to 4.
 Adjust the parameters including Day to Night Sensitivity, Night to Day Sensitivity and
IR Light Brightness for the analog cameras.
 Select the Day/Night Mode of the camera from the drop-down list.
 Check the WDR Switch checkbox to enable the function of the camera.
Step 4 (Optional) Click Default to set the parameters to the default settings.
Step 5 (Optional) Click Copy to copy the parameters of the current camera to other analog
cameras.
Step 6 Click Apply to save the settings.

HIKVISION DS-7108HQHI-K1 Specifications

General

BNC input ports	1
Video input channels	8 channels
USB 2.0 ports quantity	2
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Power consumption (typical)	12 W
Voltage	12 V
Product color	White
Rack capacity	1U
Audio output channels	1.0 channels
Video compression formats	H.264, H.264+, H.265, H.265+
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	1000 g
Dimensions (WxDxH)	200 x 200 x 45 mm
