HIKVISION DS-7108HQHI-K1 User Manual

Digital Video Recorder User Manual
213

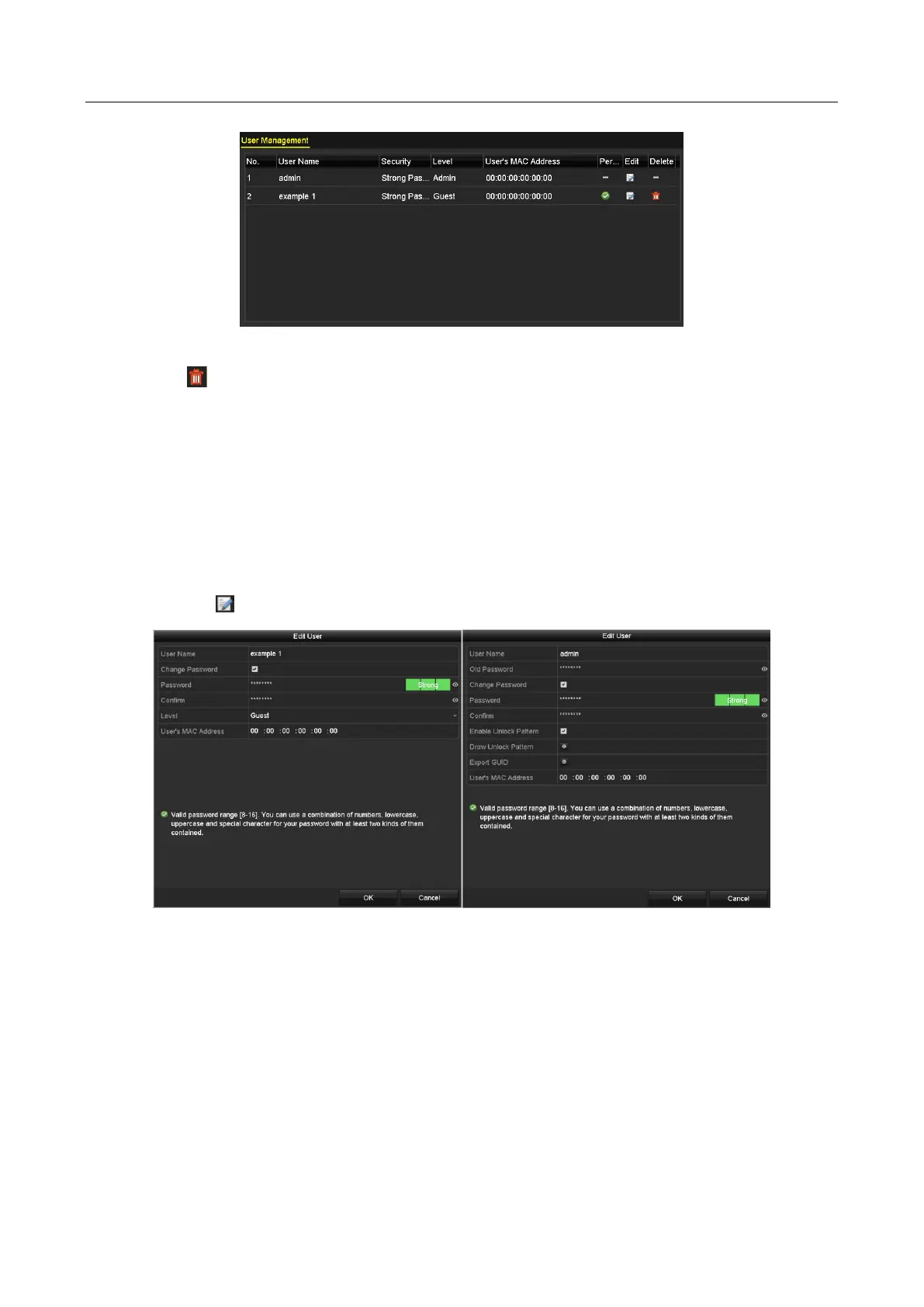

Figure 16-12 User List
Step 3 Click to delete the selected user account.
16.4.3 Editing a User
Purpose
For the added user accounts, you can edit the parameters.
Step 1 Go to Menu > Configuration > User.
Step 2 Select the user to be edited from the list.
Step 3 Click the icon to enter the Edit User interface, as shown below.
Figure 16-13 Edit User Interface
Step 4 Edit the corresponding parameters.
 Operator and Guest
You can edit the user information, including user name, password, permission level and
MAC address. Check the checkbox of Change Password if you want to change the password,
and input the new password in the text field of Password and Confirm. A strong password
is recommended.
 Admin

HIKVISION DS-7108HQHI-K1 Specifications

General

BNC input ports	1
Video input channels	8 channels
USB 2.0 ports quantity	2
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Power consumption (typical)	12 W
Voltage	12 V
Product color	White
Rack capacity	1U
Audio output channels	1.0 channels
Video compression formats	H.264, H.264+, H.265, H.265+
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	1000 g
Dimensions (WxDxH)	200 x 200 x 45 mm
