HIKVISION DS-7204HGHI-F1 User Manual

Digital Video Recorder User Manual
142

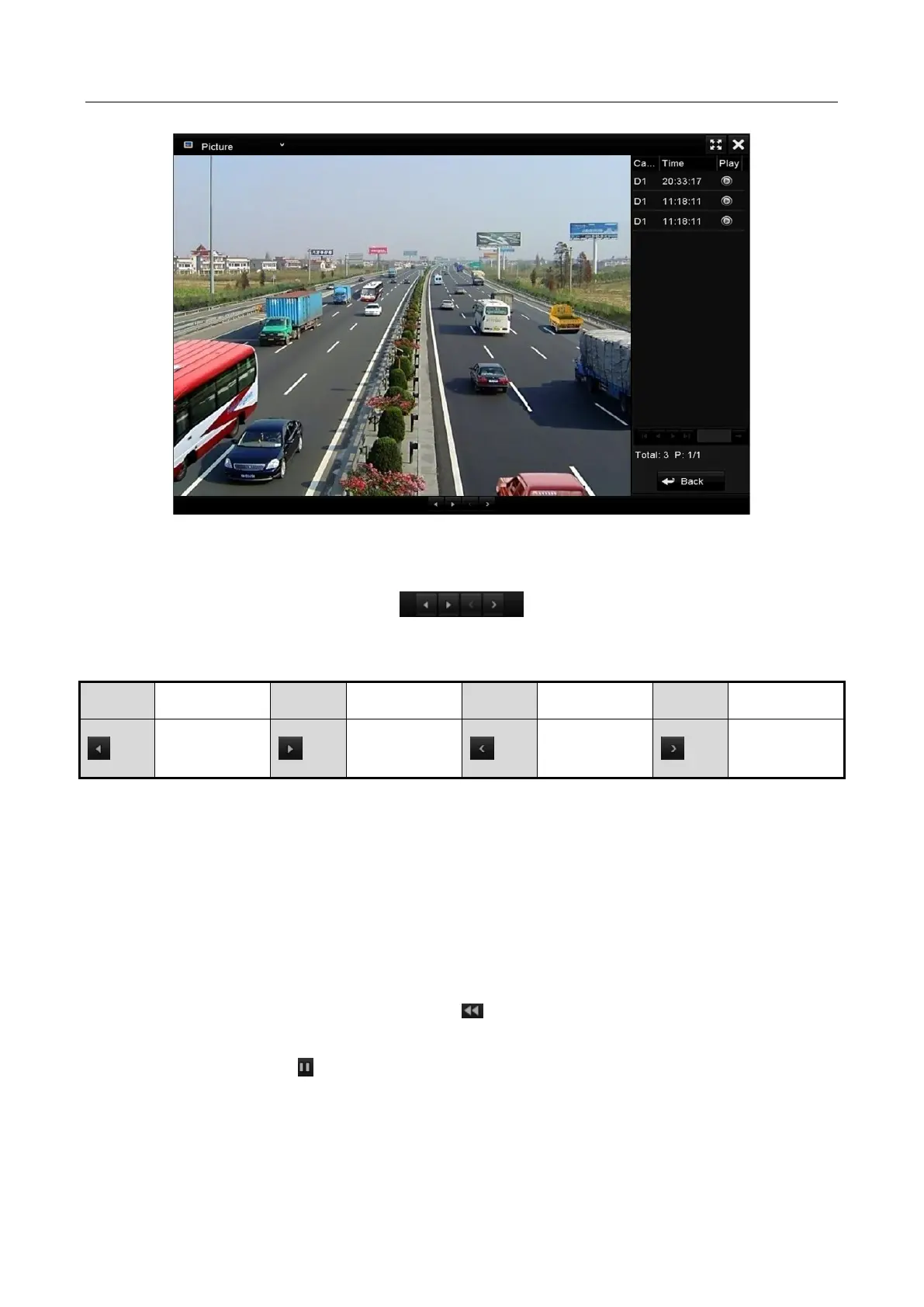

Figure 6-22 Result of Picture Playback
Step 7 The toolbar in the bottom part of Playback interface can be used to control playing process.
Figure 6-23 Picture Playback Toolbar
Table 6-3 Detailed Explanation of Picture-playback Toolbar
Button
Function
Button
Function
Button
Function
Button
Function
Play reverse
Play
Previous
Next picture
6.2 Auxiliary Functions of Playback
6.2.1 Playing Back Frame by Frame
Purpose
Play video files frame by frame, in order to check image details of the video when abnormal events
happen.
Step 1 Go to Playback interface and click button until the speed changes to Single frame.
Step 2 One click on the playback screen represents playback or adverse playback of one frame.
You can use button in toolbar to stop the playing.

HIKVISION DS-7204HGHI-F1 Specifications

General

Voltage	12 V
Product color	Black
Rack capacity	1U
Audio output channels	1.0 channels
Video compression formats	H.264, H.264+
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Video input channels	4 channels
USB 2.0 ports quantity	2
Power consumption (typical)	8 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	1000 g
Dimensions (WxDxH)	260 x 222 x 45 mm
