HIKVISION DS-7204HGHI-F1 User Manual

Digital Video Recorder User Manual
67

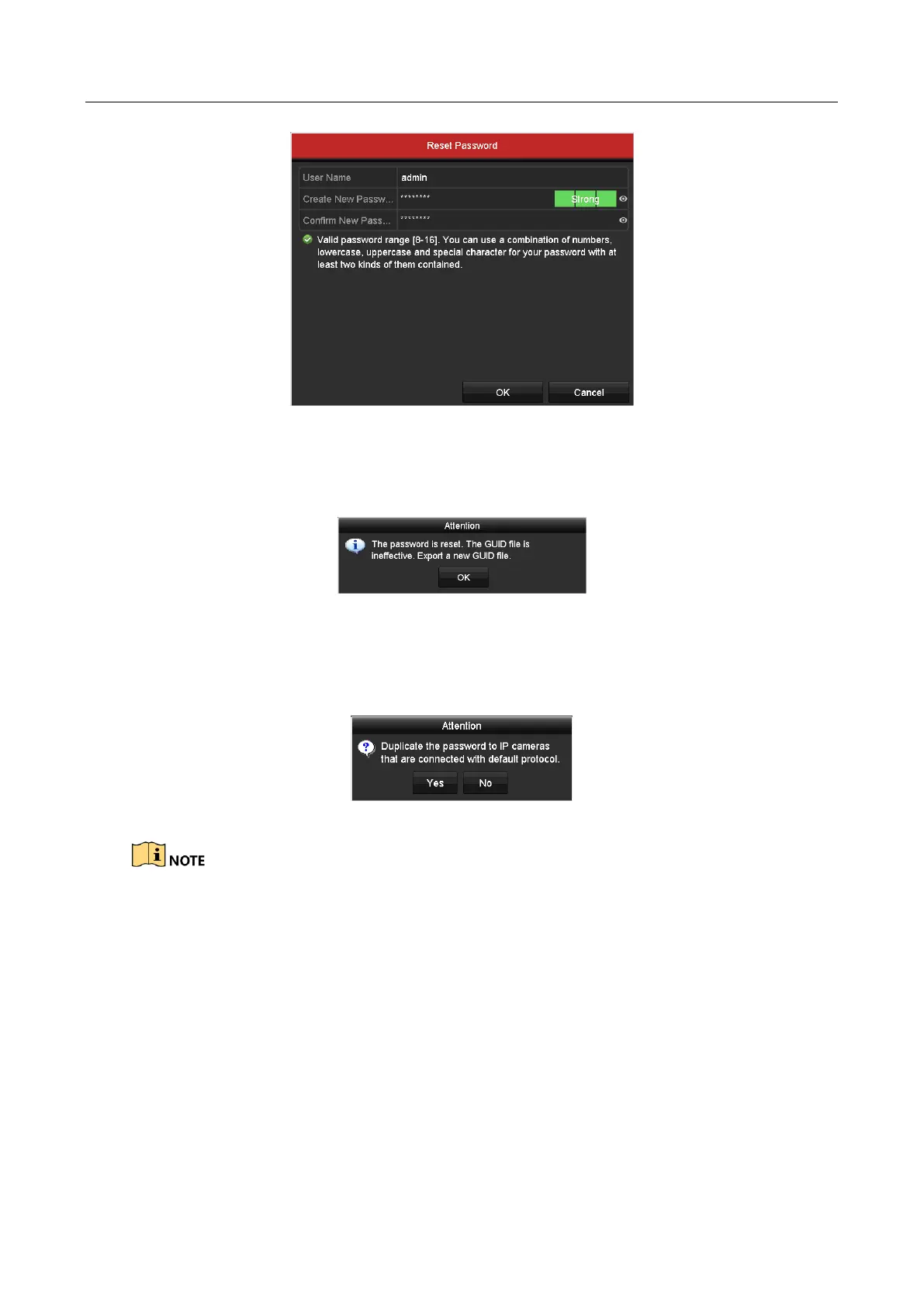

Figure 2-32 Reset Password
2) Input the new password and confirm the password.
3) Click OK to save the new password. Then the Attention box pops up as shown below.
Figure 2-33 GUID File Imported
4) Click OK and the Attention box as below pops up to remind you to duplicate the
password of the device to IP cameras that are connected with default protocol. Click
Yes to duplicate the password or No to cancel it.
Figure 2-34 Duplicate the Password

If you want to retrieve the password when you forget it, you must export the GUID file first.

Once the password is reset, the GUID file becomes ineffective. You can export a new GUID
file. Refer to Chapter 17.5.3 Editing a User for reference.
2.5.2 User Logout
Purpose
After logging out, the monitor turns to the live view mode and if you want to perform some
operations, you need to enter the user name and password to log in again.
Step 1 Enter the Shutdown menu.

HIKVISION DS-7204HGHI-F1 Specifications

General

Voltage	12 V
Product color	Black
Rack capacity	1U
Audio output channels	1.0 channels
Video compression formats	H.264, H.264+
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Video input channels	4 channels
USB 2.0 ports quantity	2
Power consumption (typical)	8 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	1000 g
Dimensions (WxDxH)	260 x 222 x 45 mm
