HIKVISION DS-7204HGHI-F1 User Manual

Digital Video Recorder User Manual
258
 Enhanced VCA Mode: For DS-7208/7216HUHI-F/N series DVR, you can check the checkbox
to enable enhanced VCA mode. When you enable it and click Apply, the attention box
pops up as below. Click Yes to apply the function and reboot the device.

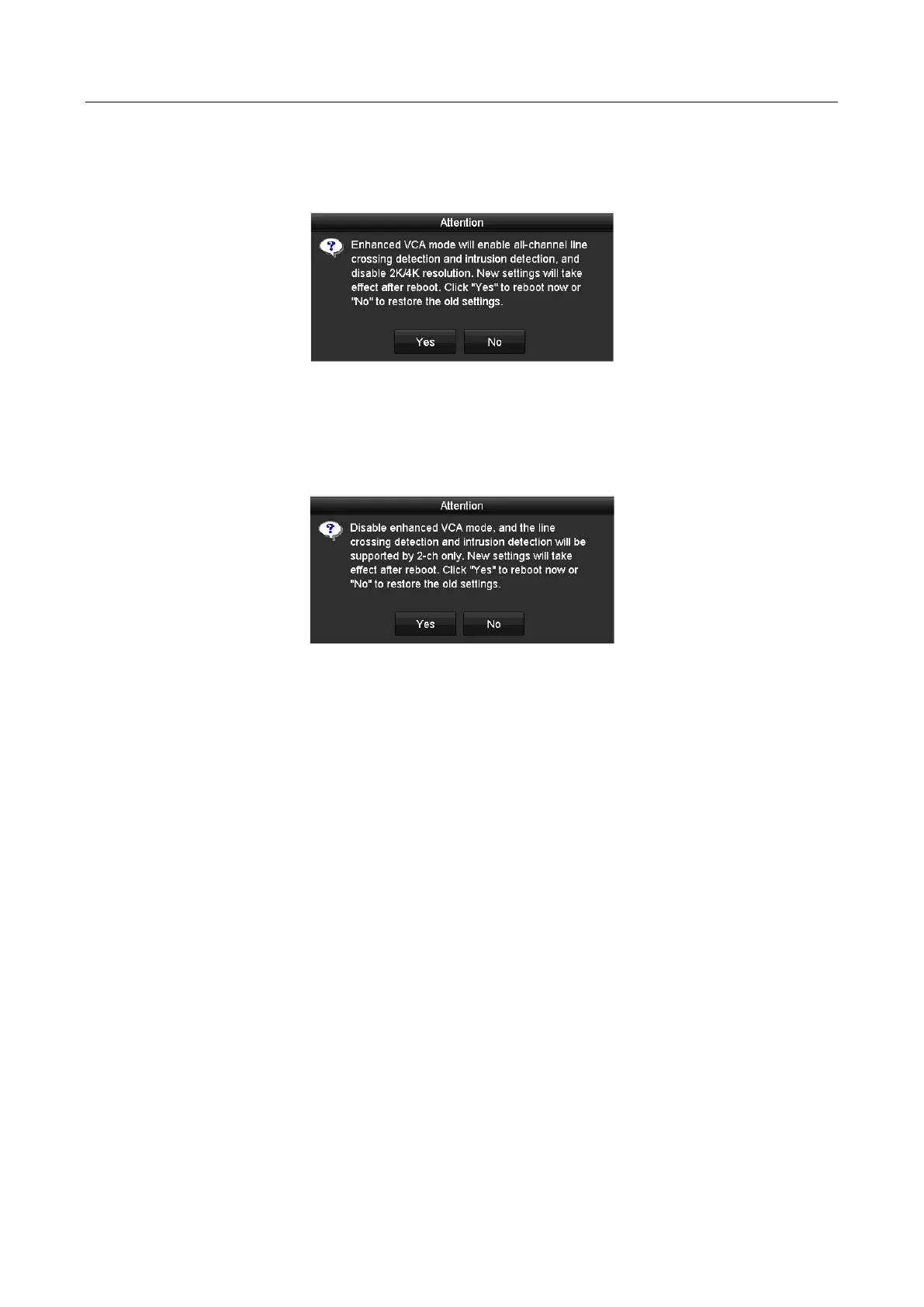

Figure 17-10 Enable Enhanced VCA Mode
If the enhanced VCA mode has been enabled, you can disable it by unchecking the
checkbox. When you disable it and click Apply, the attention box pops up as below. Click
Yes to apply the function and reboot the device.
Figure 17-11 Disable Enhanced VCA Mode
Step 4 Click the Apply button to save the settings.
17.5 Managing User Accounts
Purpose
There is a default account in the DVR: Administrator. The Administrator user name is admin and
the password is set when you start the device for the first time. The Administrator has the
permission to add and delete user and configure user parameters.
17.5.1 Adding a User
Step 1 Enter the User Management interface.
Menu >Configuration>User

HIKVISION DS-7204HGHI-F1 Specifications

General

Voltage	12 V
Product color	Black
Rack capacity	1U
Audio output channels	1.0 channels
Video compression formats	H.264, H.264+
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Video input channels	4 channels
USB 2.0 ports quantity	2
Power consumption (typical)	8 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	1000 g
Dimensions (WxDxH)	260 x 222 x 45 mm
