independent output configuration of DS-7608/7616HUHI-F/N and
DS-7116/7216/7300/8100HQHI-F/N series), Auto and HDMI/VGA (for HGHI-F/N, HGHI-F,
DS-7100/7200HQHI-F/N and DS-7200/7604HUHI series or simultaneous output configuration of
DS-7608/7616HUHI-F/N and DS-7300/8100HQHI-F/N series) and then reboot the device to switch
the main output.
3.2.3 Quick Setting Toolbar in Live View Mode
On the screen of each channel, there is a quick setting toolbar which shows when you click the
screen.

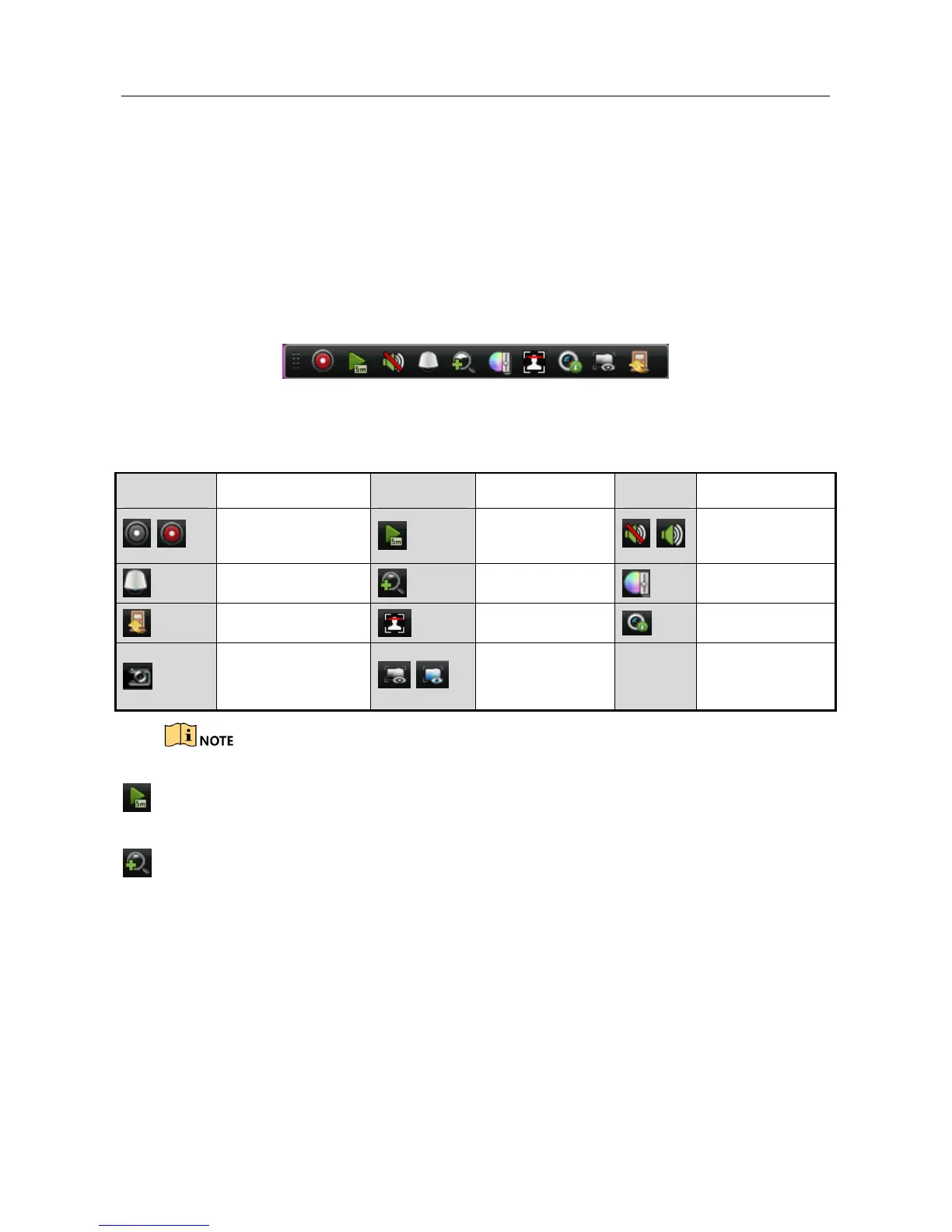

Figure 3-3 Quick Setting Toolbar
You can refer to Table 3-8 for the description of Quick Setting Toolbar icons.
Table 3-8 Description of Quick Setting Toolbar Icons
Icons Description Icons Description Icons Description
/
Enable/Disable
Manual Record
Instant Playback
/
Mute/Audio on
PTZ Control
Digital Zoom
Image Settings
Close Live View
Face Detection
Information
Capture
/
Show/Hide VCA
Information
Picture capture is only applicable to DS-7300/8100/9000HUHI-F/N series DVR.
Instant Playback only shows the record in last five minutes. If no record is found, it means
there is no record during the last five minutes.
Digital Zoom can zoom in the selected area to the full screen. Click and draw to select the
area to zoom in, as shown in Figure 3-4.
