Digital Video Recorder User Manual
140
You can adjust the size and position of textbox on the live view screen of POS settings interface by
dragging the frame.
Step 8 Click Apply to activate the settings.
Step 9 (Optional) You can click the Copy button to copy the current settings to other POS (s).

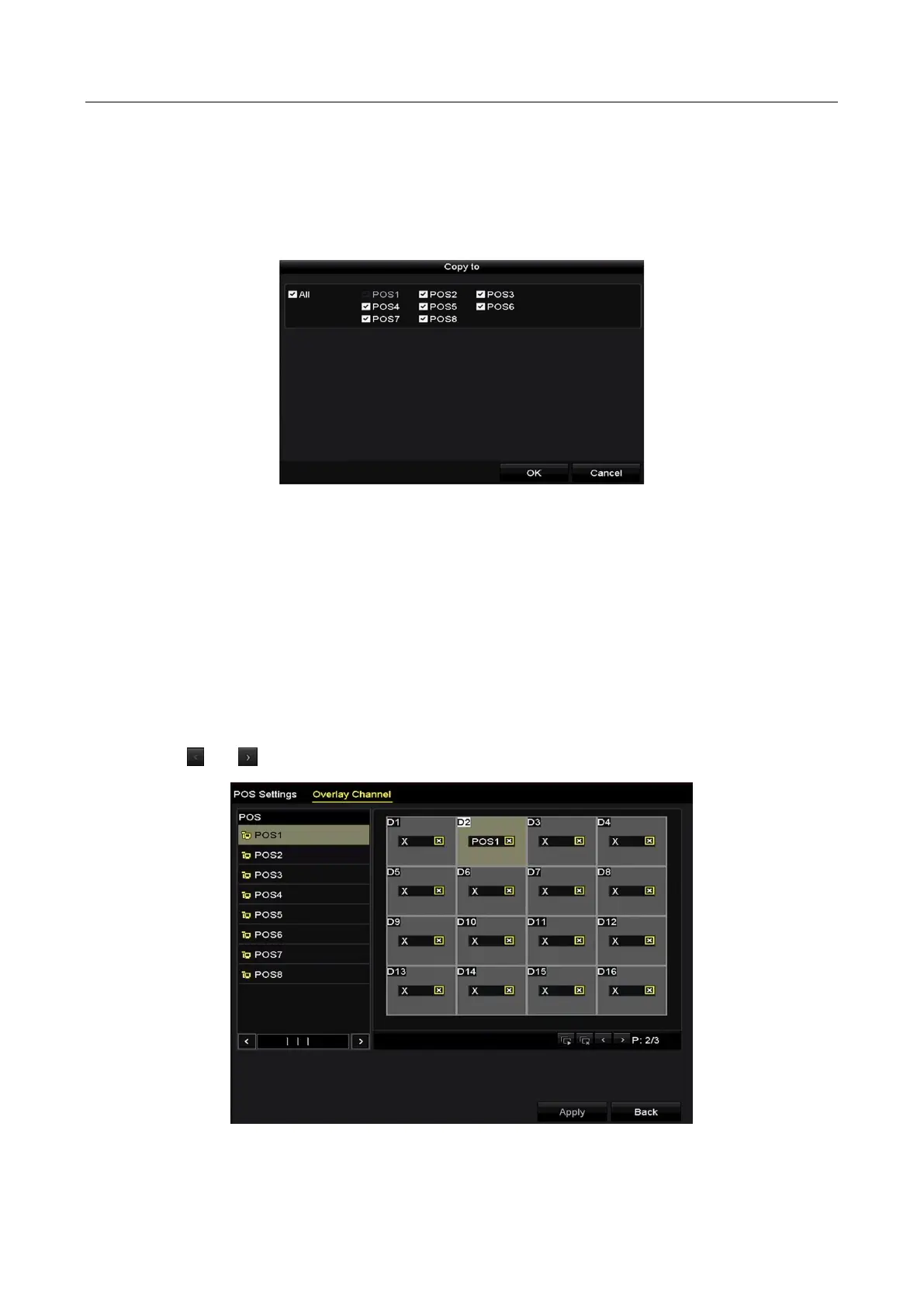

Figure 9-13 Copy POS Settings
9.2 Configuring Overlay Channel
Purpose
You can assign the POS machine to corresponding channel on which you want to overlay.
Step 1 Go to Menu > Configuration > POS > Overlay Channel.
Step 2 Click to select an analog or IP camera from the camera list on the right, and then click a POS
item from the POS list you want to overlay on the selected camera.
Click or to go to the previous or next page of cameras.
Figure 9-14 Overlay Channel Settings

HIKVISION DS-7208HQHI-K2/P Specifications

General

HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Number of HDDs supported	2
Power consumption (typical)	60 W
Voltage	12 V
Product color	Black
Audio output channels	1.0 channels
Video compression formats	H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
BNC input ports	1
Video input channels	8 channels
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	17480 g
Dimensions (WxDxH)	380 x 320 x 48 mm
