Refer to Chapter 3.2 Operations in Live View Mode for the main and aux output
relationship.

The CVBS output only serves as the aux output or live view output.
Step 1 Use the mouse wheel to double-click on the HDMI/VGA output screen, and the following
message box pops up.

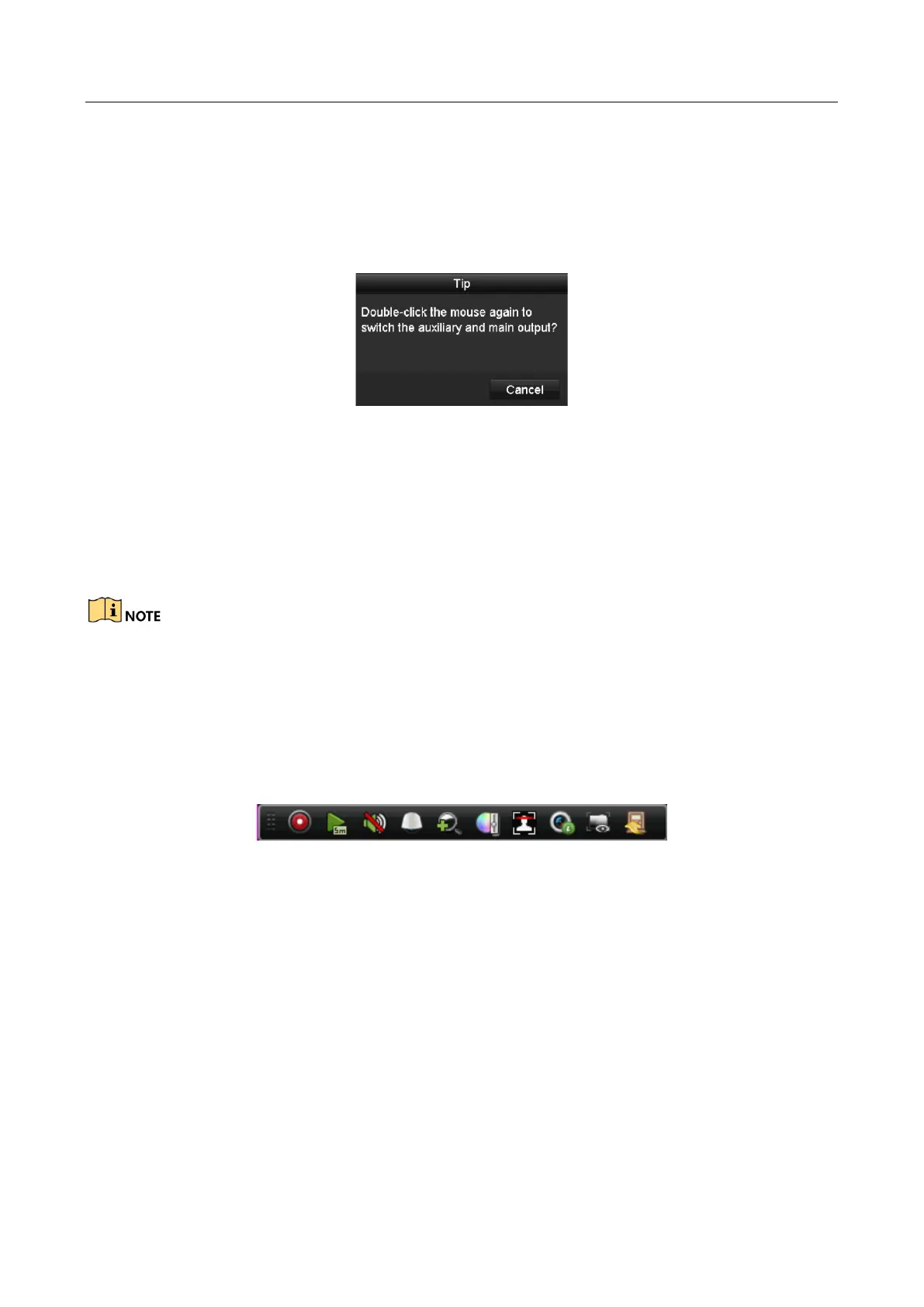

Figure 3-2 Switch Main and Aux Output
Step 2 Use the mouse wheel to double-click on the screen again to switch to the aux output, or
click Cancel to cancel the operation.
Step 3 Select the Menu Output Mode to others from the right-click menu on the monitor.
Step 4 On the pop-up message box, click Yes to reboot the device to enable the selected menu
output as the main output.
You can select the Menu Output Mode under Menu>Configuration>General>More Settings to
Auto and HDMI/VGA and then reboot the device to switch the main output.
3.2.3 Quick Setting Toolbar in Live View Mode
On the screen of each channel, there is a quick setting toolbar which shows when you click the
screen.
Figure 3-3 Quick Setting Toolbar
You can refer to Table 3-4 for the description of Quick Setting Toolbar icons.

HIKVISION DS-7208HQHI-K2/P Specifications

General

HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Number of HDDs supported	2
Power consumption (typical)	60 W
Voltage	12 V
Product color	Black
Audio output channels	1.0 channels
Video compression formats	H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
BNC input ports	1
Video input channels	8 channels
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	17480 g
Dimensions (WxDxH)	380 x 320 x 48 mm
