HIKVISION DS-7208HQHI-K2/P User Manual

Digital Video Recorder User Manual
52

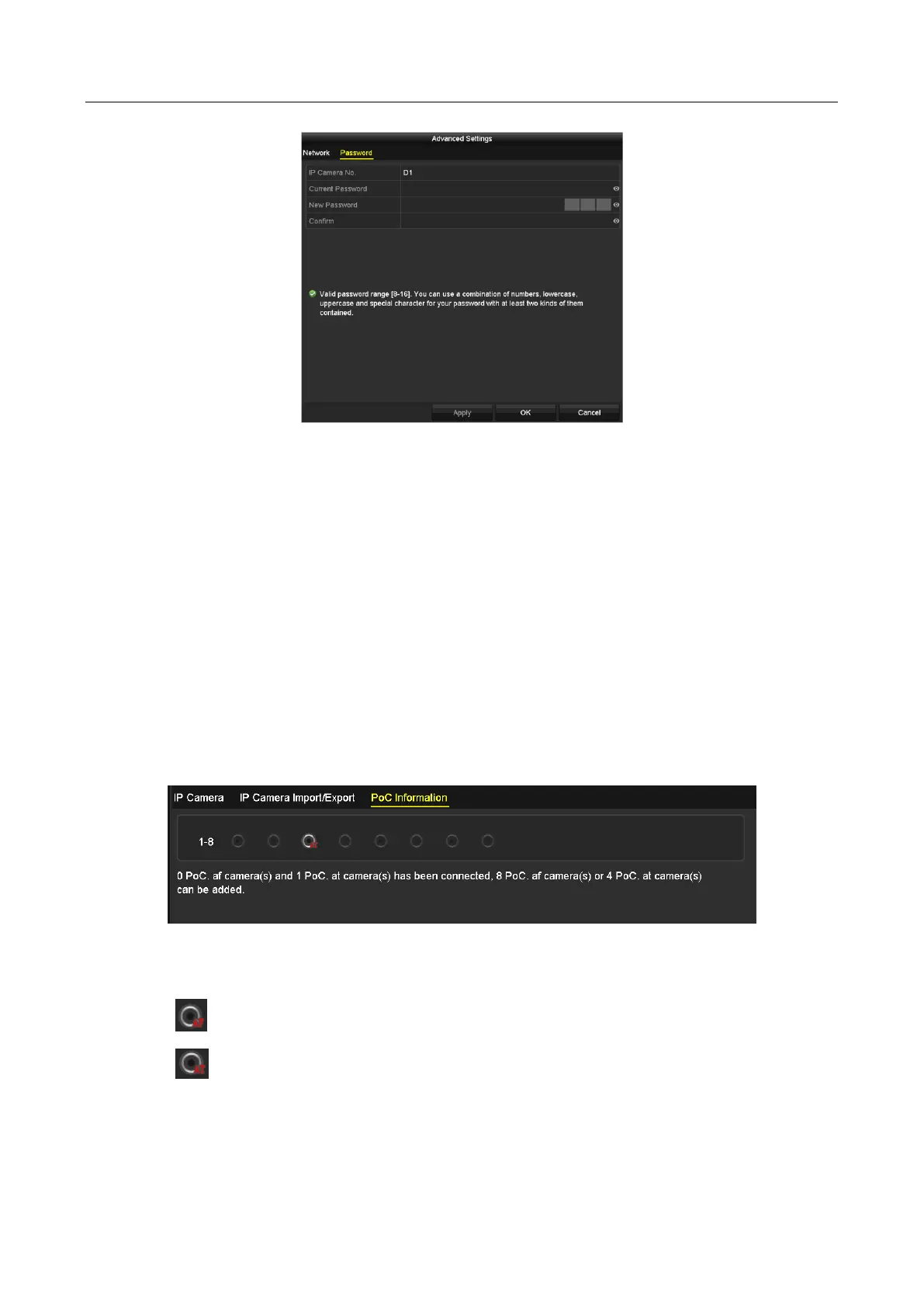

Figure 2-43 Password Configuration of the Camera
Step 5 Click OK to save the settings and exit the interface.
2.8 Connecting PoC Cameras
Purpose
-K/P series DVR support PoC (Power over Coaxitron) cameras connection. DVR will detect the
connected PoC cameras automatically, manage the power consumption via the coaxial
communication, and provide power to the cameras via coaxitron.
Before you start
Connect the PoC camera to the DVR.
Step 1 Go to Menu > Camera > PoC Information.
Figure 2-44 PoC Information
Step 2 Check the status of connected PoC camera.
 : When the PoC camera is connected to the DVR, the default status is AF.
 : If the connected PoC camera supports AT mode and the power of the DVR PoC
module is enough, the DVR will switch the default AF mode to AT mode.

HIKVISION DS-7208HQHI-K2/P Specifications

General

HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Number of HDDs supported	2
Power consumption (typical)	60 W
Voltage	12 V
Product color	Black
Audio output channels	1.0 channels
Video compression formats	H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
BNC input ports	1
Video input channels	8 channels
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	17480 g
Dimensions (WxDxH)	380 x 320 x 48 mm
