HIKVISION DS-7208HVI-S & 7216HVI-S User‟s Manual
53

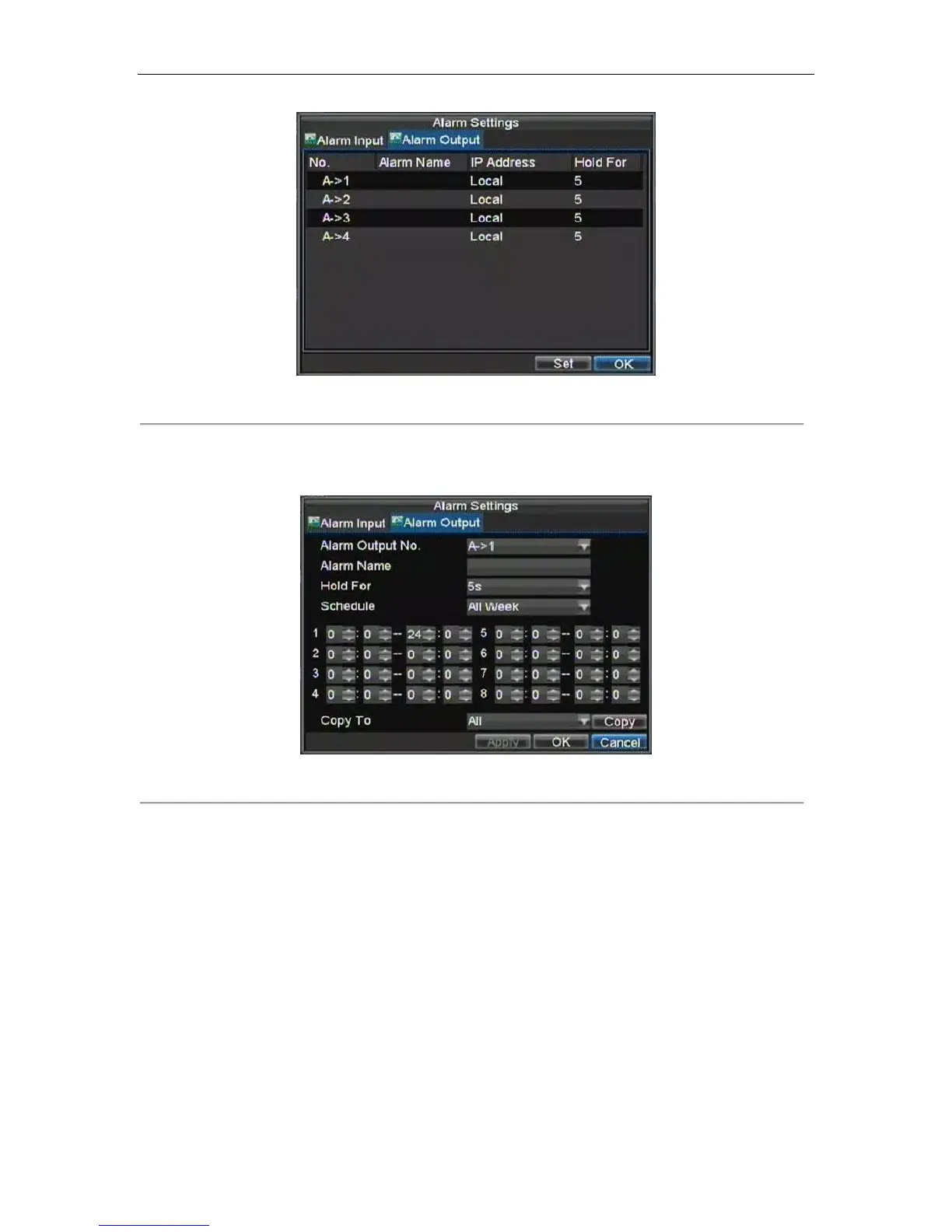

Figure 8. Alarm Output Interface
2. Select the output you would like to configure and click the Set button. This will bring up the settings
page for the selected channel (Figure 9).
Figure 9. Alarm Output Settings
3. Configure the settings for selected output.
4. Select OK to save and exit.
Note: If the Hold For option is selected as Manually Stop, the alarm will only stop when you manually stop it (See
Triggering Alarm Outputs Manually).
Triggering Alarm Outputs Manually
You may also trigger alarm outputs manually through the Manual Alarm menu.
To trigger alarm outputs manually:
1. Enter the Manual Alarm menu (Figure 10) by clicking Menu > Manual Alarm.
To Next Page
