HIKVISION DS-7208HVI-S & 7216HVI-S User‟s Manual
71

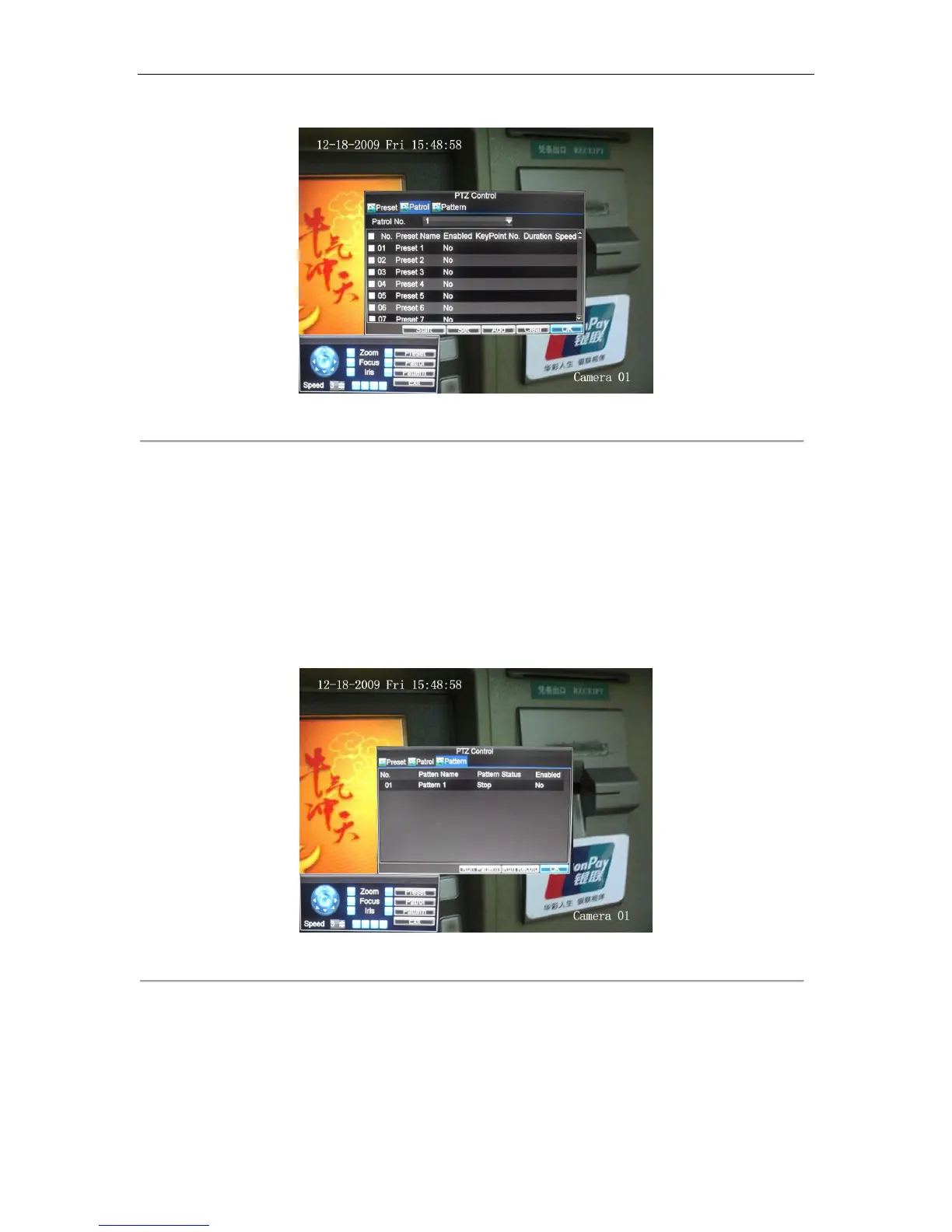

Figure 7. Patrol Management Menu
Customizing Patterns
Patterns can be setup by recording the movement of the PTZ.
To setup and use PTZ patterns:
1. Enter the PTZ Control interface, shown in Figure 3 by clicking PTZ in the mouse menu or the PTZ
button on the front panel.
2. Select the Pattern button to enter the Pattern Management menu, shown in Figure 8.
Figure 8. Pattern Management Menu
3. Select a Pattern Number.
4. To record a new pattern, select the Run Record button to start recording of the movements of the PTZ.
Use the PTZ control panel to move the PTZ. The PTZ movements will be recorded until the Stop
Record button is clicked.
5. To run a pattern, click the Run Pattern button on a valid pattern. The PTZ will move according to the
path that was defined until Stop Pattern is clicked.
6. Click OK to save and exit from menu.
