HIKVISION DS-7216HQHI-K1 User Manual

Digital Video Recorder User Manual
157
Chapter 11 VCA Search
With the configured VCA detection, the device supports the VCA search for the behavior search,
face search, plate search, people counting and heat map results of the IP cameras.
11.1 Face Search
Purpose
When there are detected face picture captured and saved in HDD, you can enter the Face Search
interface to search the picture and play the picture related video files according to the specified
conditions.
Before you start
Please refer to Chapter 9.1 Face Detection for configuring the face detection.
Step 1 Go to Menu > VCA Search > Face Search.
Step 2 Select the camera (s) for the face search.

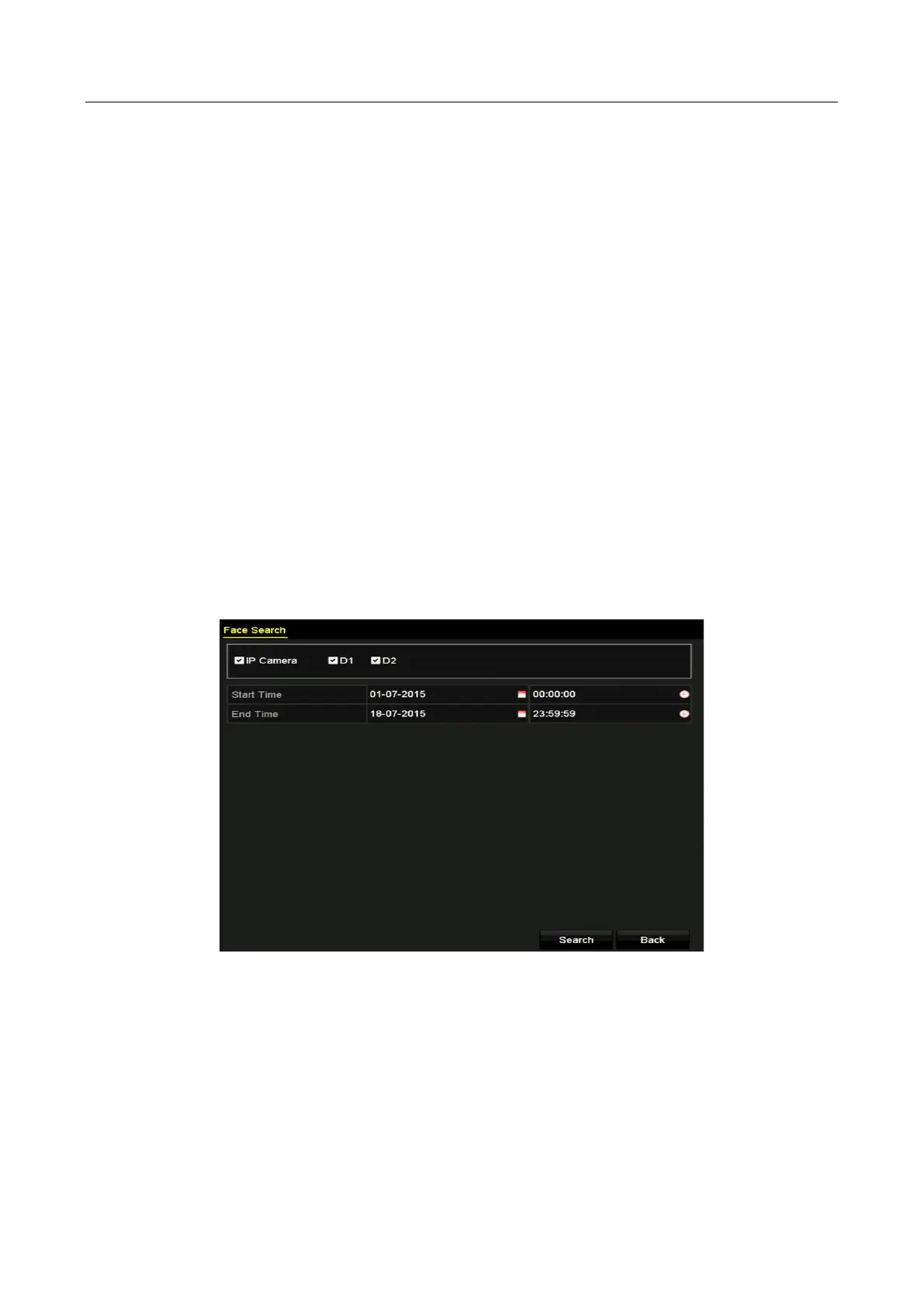

Figure 11-1 Face Search
Step 3 Specify the start time and end time for searching the captured face pictures or video files.
Step 4 Upload the pictures from your local storage device for matching the detected face pictures.
Step 5 Set the similarity level for the source pictures and the captured pictures.
Step 6 Click Search to start searching. The search results of face detection pictures are displayed
in list or in chart.

HIKVISION DS-7216HQHI-K1 Specifications

General

Product color	Black
Channels quantity	16 channels
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768, 3840 x 2160, 2560 x 1440
Audio input	RCA
BNC input ports	16
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Power consumption (typical)	25 W
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB

Weight and Dimensions

Weight	2000 g
Dimensions (WxDxH)	315 x 242 x 45 mm
