Digital Video Recorder User Manual
43

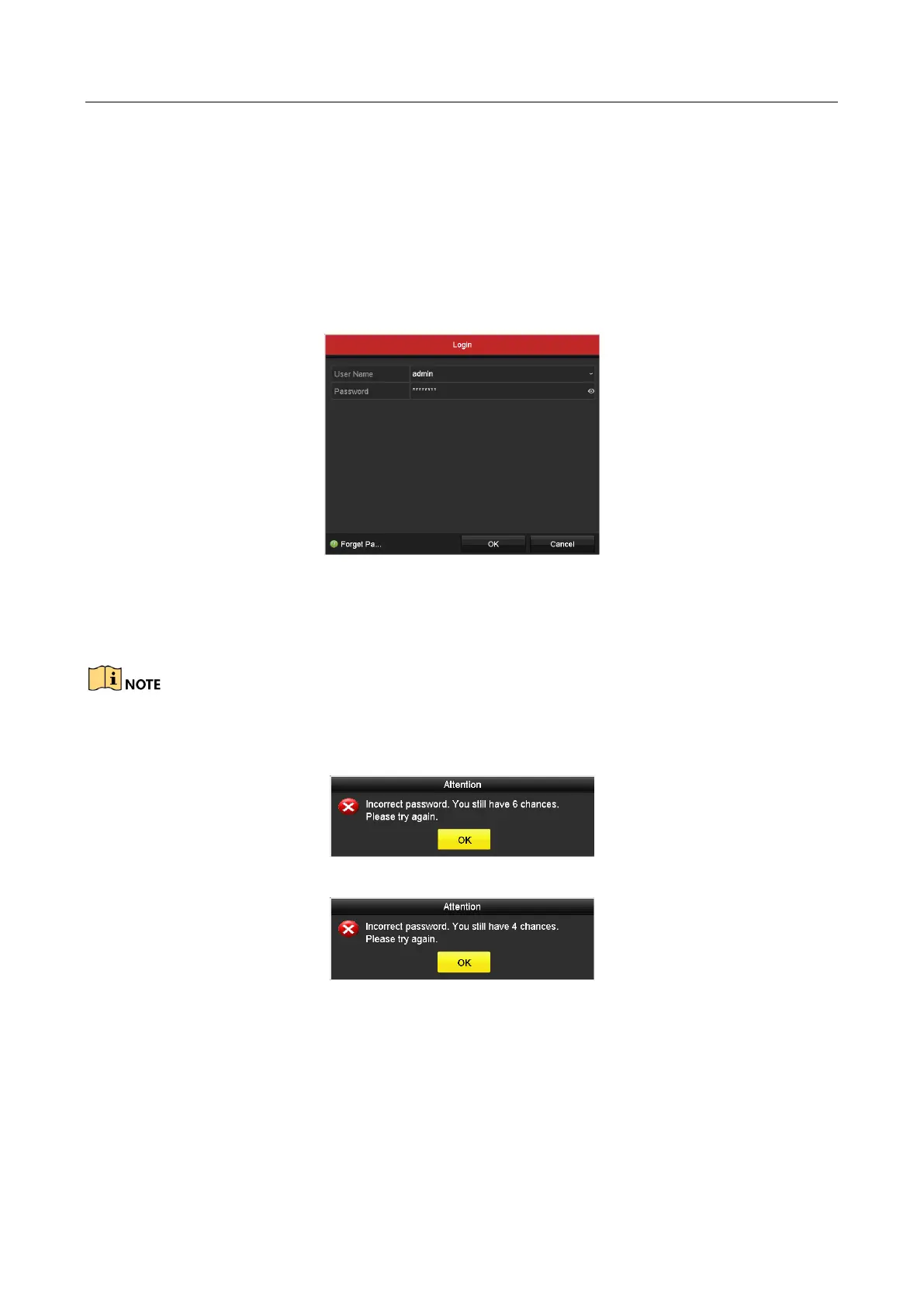

2.5 Login and Logout
2.5.1 User Login
Purpose
You have to log in to the device before operating the menu and other functions
Step 1 Select the User Name in the drop-down list.
Figure 2-26 Login Interface
Step 2 Input the Password.
Step 3 Click OK to log in.
In the Login interface, for the admin, if you have entered the wrong password for 7 times, the
account will be locked for 60 seconds. For the operator, if you have entered the wrong password
for 5 times, the account will be locked for 60 seconds.
Figure 2-27 User Account Protection for the Admin
Figure 2-28 User Account Protection for the Operator
2.5.2 User Logout
Purpose
After logging out, the monitor turns to the live view mode and if you want to perform some
operations, you need to enter the user name and password to log in again.

HIKVISION DS-7216HQHI-K1 Specifications

General

Product color	Black
Channels quantity	16 channels
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768, 3840 x 2160, 2560 x 1440
Audio input	RCA
BNC input ports	16
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Power consumption (typical)	25 W
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB

Weight and Dimensions

Weight	2000 g
Dimensions (WxDxH)	315 x 242 x 45 mm
